Nissan Rogue (T33) 2021-Present Service Manual: Dtc/circuit Diagnosis :: Power Window Relay

Nissan Rogue (T33) 2021-Present Service Manual / Body Exterior, Doors, Roof & Vehicle Security :: Power Window Control System / Dtc/circuit Diagnosis :: Power Window Relay

Component Inspection

CHECK POWER WINDOW RELAY

  1. Ignition switch OFF.

  2. Remove power window relay.

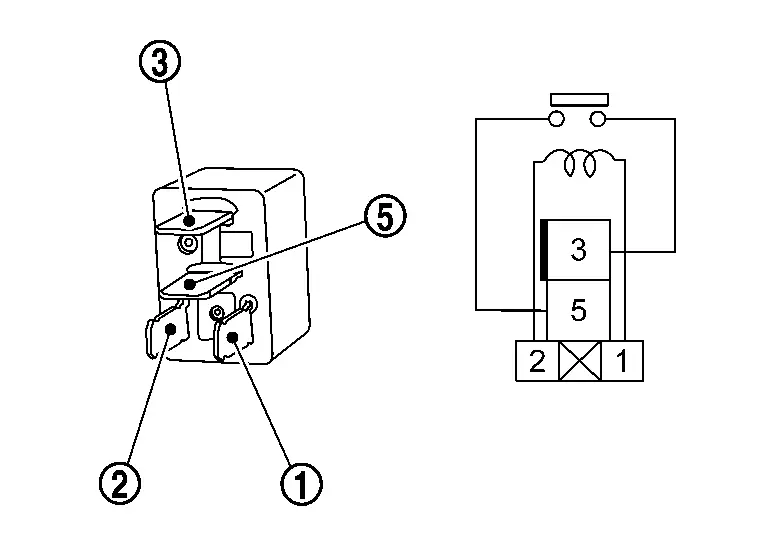

  3. Check continuity between power window relay terminals.

    Power window relay Condition Continuity
    Terminals
    12 V direct current supply between terminals and . Yes
    No current supply No

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Replace power window relay.
