DTC Description

DTC DETECTION LOGIC

DTC No.

CONSULT screen terms

(Trouble diagnosis content) 		DTC detection condition
B24F4-12

Heated steering wheel relay

(Heated steering wheel relay) 		Diagnosis condition Ignition switch ON
Signal (Terminal) Heated steering wheel relay control circuit
Threshold Short to battery
Diagnosis delay time —

POSSIBLE CAUSE

  • Heated steering wheel relay

  • A/C amp.

  • Harness or connectors (heated steering wheel relay control circuit is shorted to battery)

FAIL-SAFE

—

DTC CONFIRMATION PROCEDURE

PERFORM DTC CONFIRMATION PROCEDURE

CONSULT

  1. Ignition switch ON.

  2. Select “Self diagnosis result” mode of “HVAC”.

  3. Check DTC.

Is DTC detected?

YES>>

Refer to Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: Inspection End.

DTC Diagnosis Procedure

CHECK HEATED STEERING WHEEL RELAY CONTROL SIGNAL CIRCUIT FOR SHORT

  1. Ignition switch OFF.

  2. Remove heated steering wheel relay and disconnect A/C amp. connector.

  3. Check voltage between A/C amp. harness connector and ground.

    (+) (−)

    Voltage

    (Approx.)
    A/C amp.
    Connector Terminal
    M55 56 Ground 0 V

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Repair harness or connector.

CHECK HEATED STEERING WHEEL RELAY

Check heated steering wheel relay. Refer to Component Inspection.

Is the inspection result normal?

YES>>

Replace A/C amp. Refer to Removal and Installation.

NO>>

Replace heated steering wheel relay.

Component Inspection

CHECK HEATED STEERING WHEEL RELAY

  1. Ignition switch OFF.

  2. Remove heated steering wheel relay.

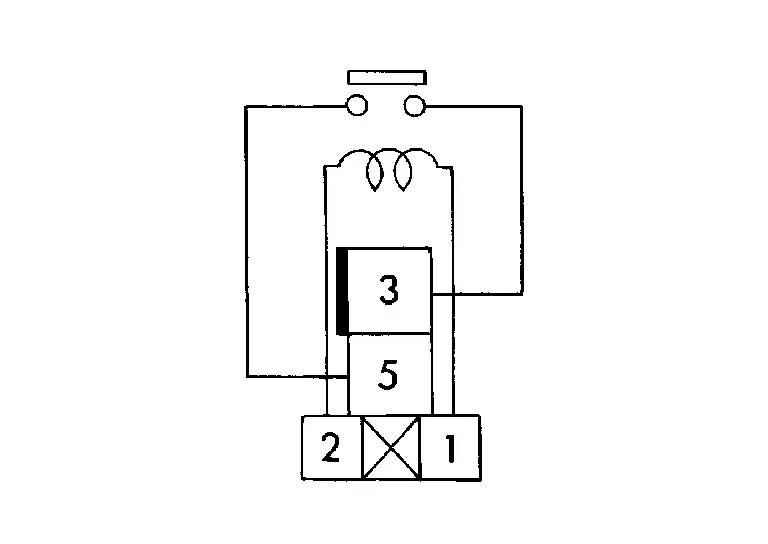

  3. Check continuity between heated steering wheel relay terminal 3 and 5 when the voltage is supplied between terminal 1 and 2.

    Terminal Condition Continuity
    3 5 Battery voltage Apply Yes
    Not apply No

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Replace heated steering wheel relay.
