DTC Description

DTC DETECTION LOGIC

DTC No.

CONSULT screen terms

(Trouble diagnosis content) 		DTC detection condition
B24C6–14

BLOWER MOTOR CONTROL

(Blower motor control) 		[CIRCUIT SHORT TO BATTERY OR OPEN] Diagnosis condition When ignition switch is ON
Signal (Terminal) Blower motor control signal
Threshold Blower motor control signal circuit has a short to power or open
Diagnosis delay time —

POSSIBLE CAUSE

  • Harness or connectors (blower motor control signal circuit is shorted to battery or open)

  • A/C amp.

FAIL-SAFE

—

DTC CONFIRMATION PROCEDURE

PERFORM SELF DIAGNOSIS RESULT

CONSULT

  1. Ignition switch ON.

  2. Select “Self diagnosis result” mode of “HVAC”.

  3. Check DTC.

Is DTC detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident .

NO-2>>

Confirmation after repair: Inspection End.

DTC Diagnosis Procedure

CHECK FRONT BLOWER MOTOR CONTROL SIGNAL

  1. Ignition switch ON.

  2. Check duty ratios between front blower motor harness connector and ground by using an oscilloscope.

    (+) (−) Condition

    Output waveform

    (Approx.)
    Front blower motor
    Connector Terminal
    M144 1 Ground Front blower motor: OFF Battery voltage

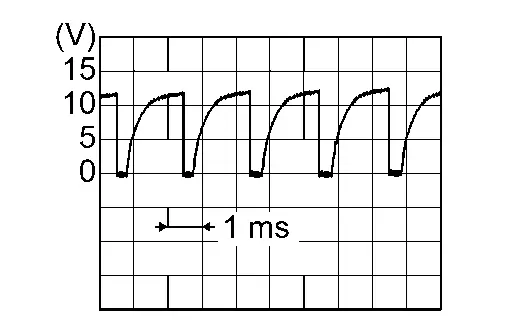

    Front blower motor: 1st speed (manual)

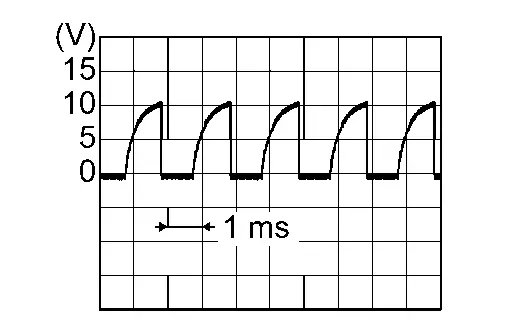

    Front blower motor: 7th speed (manual)

Is the inspection result normal?

YES>>

Replace front blower motor. Refer to Removal and Installation.

NO>>

GO TO 2.

CHECK FRONT BLOWER MOTOR CONTROL SIGNAL CIRCUIT FOR OPEN

  1. Ignition switch OFF.

  2. Disconnect front blower motor connector and A/C amp. connector.

  3. Check continuity between front blower motor harness connector and A/C amp. harness connector.

    Front blower motor A/C amp. Continuity
    Connector Terminal Connector Terminal
    M144 1 M50 34 Yes

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair the harnesses or connectors.

CHECK FRONT BLOWER MOTOR CONTROL SIGNAL CIRCUIT FOR SHORT TO POWER

Check voltage between front blower motor harness connector and ground.

(+) (–)

Voltage

(Approx.)
Front blower motor
Connector Terminal
M144 1 Ground 0 V

Is the inspection result normal?

YES>>

Replace the A/C amp. Refer to Removal and Installation.

NO>>

Repair the harnesses or connectors.
