Interior Lamp Control System

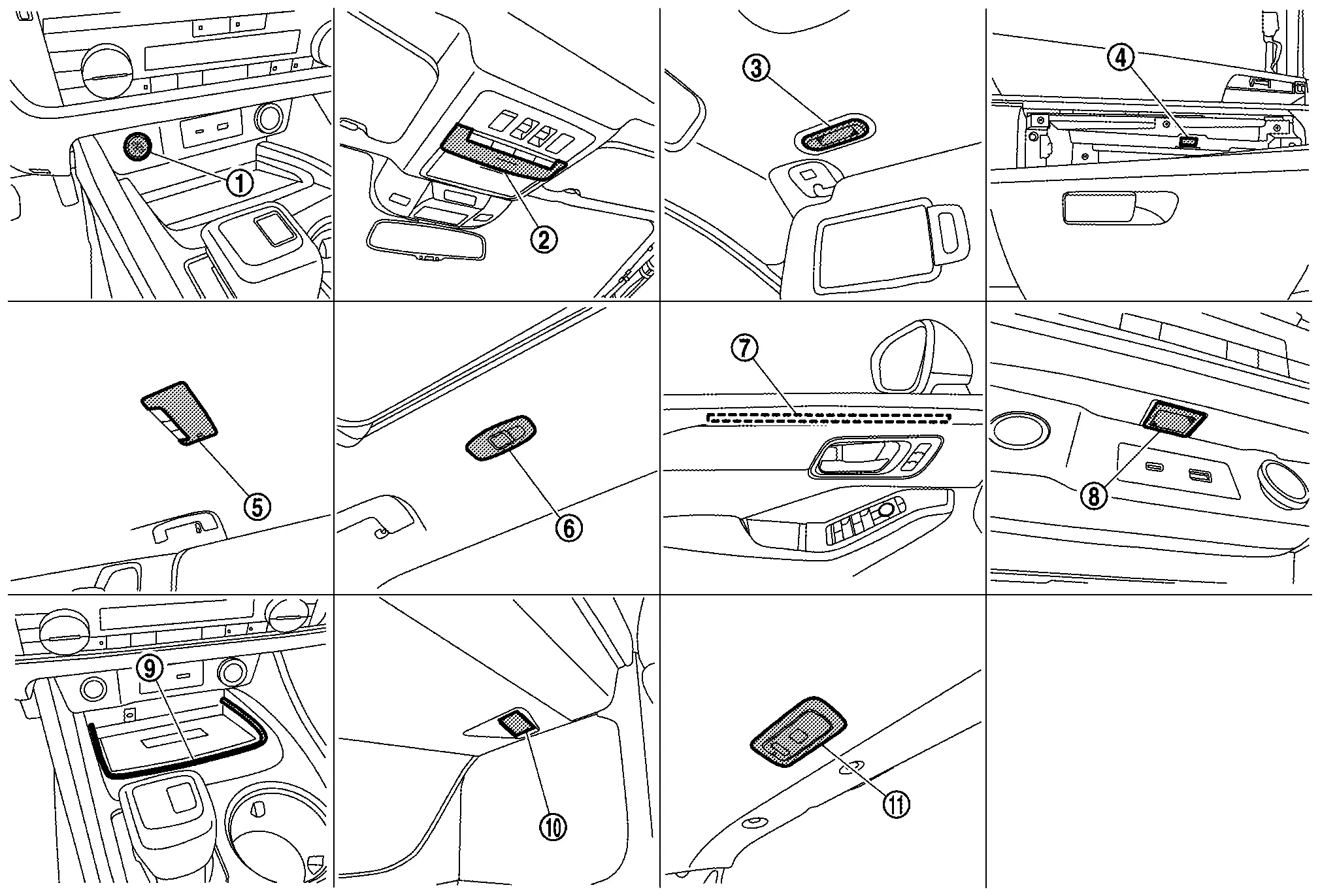

Interior Lamp Appearance and Bulb Specifications

No. Item Type Wattage (W)
Push-button ignition switch illumination LED —
Map lamp Wedge 8
Vanity mirror lamp Wedge 5
Glove box lamp*1 — 1.4
Room lamp*2 Wedge 8
Personal lamp*3 Wedge 5
Mood lamp (front door)*1 LED —
Mood lamp (Instrument panel center)*4 — 1.4
Mood lamp (Center console tray)*5 LED —
Mood lamp (Center console) LED type*5 LED —
Bulb type*4 — 1.4
Luggage room lamp Festoon bulb 8

*1: If equipped

*2: Without moonroof

*3: With moonroof

*4: Without ambient LED lighting

*5: With ambient LED lighting

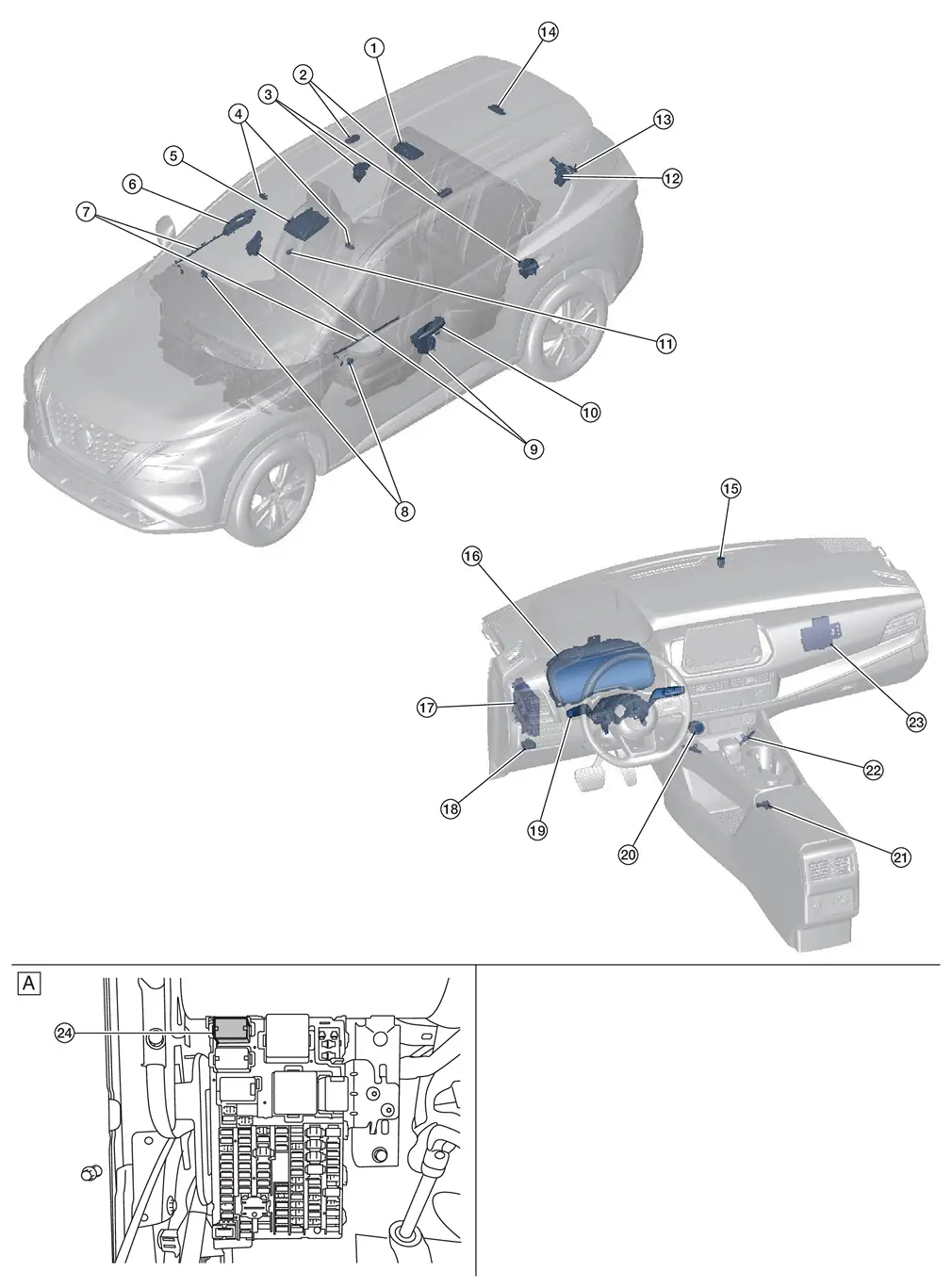

Component Parts Location

A. Lower instrument panel LH (view with finisher removed)
No. Component Function
1. Room lamp (if so equipped) Refer to Bulb Specifications.
2. Personal lamp (if so equipped) Refer to Bulb Specifications.
3. Rear door lock assembly (door switch)

Transmits the door switch signal to the BCM.

Refer to Door Lock Assembly for detailed component location.
4. Vanity mirror lamp Refer to Bulb Specifications.
5. Map lamp assembly Refer to Bulb Specifications.
6. Front door request switch RH (if so equipped)

Transmits the door request switch signal to the Intelligent Key unit.

Refer to Door Request Switch for detailed component location.
7.

Mood lamp (front door)

(if so equipped) 		Refer to Bulb Specifications.
8. Door lock/unlock switch

Transmits the door lock/unlock switch signal to the BCM.

Refer to Door Lock/Unlock Switch for detailed component location.
9. Front door lock assembly Door switch

Transmits the door switch signal to the BCM.

Refer to Door Lock Assembly for detailed component location.
Door unlock sensor (front door LH)

Transmits the door unlock sensor signal to the BCM.

Refer to Door Lock Assembly for detailed component location.
10. Front door request switch LH (if so equipped)

Transmits the door request switch signal to the Intelligent Key unit.

Refer to Door Request Switch for detailed component location.
11. Rain and light sensor (with ProPILOT Assist 2.1)

Transmits the light sensor signal to the BCM via LIN communication.

Refer to Rain and Light Sensor for detailed component location.
12. Back door lock assembly (ajar switch)

Transmits the ajar switch signal to the BCM.

Refer to Back Door Lock Assembly for detailed component location.
13.

Back door opener switch (request switch)

(if so equipped)

Transmits the door request switch signal to the Intelligent Key unit.

Refer to Back Door Opener Switch (request switch) for detailed component location.
14. Luggage room lamp Refer to Bulb Specifications.
15. Optical sensor (without ProPILOT Assist 2.1)

Transmits the optical sensor signal to the BCM.

Refer to Optical Sensor for detailed component location.
16. Combination meter

Controls illumination depending on Nissan Ariya vehicle conditions.

Refer to Combination Meter (with type A meter) or Combination Meter (with type B meter) for detailed component location.
17. BCM (Body Control Module)
  • Controls the interior room lamp relay using the interior room lamp timer function depending on Nissan Ariya vehicle conditions.
  • Operates the room lamp battery saver feature depending on the vehicle conditions to turn interior lamps ON or OFF.
  • Operates the interior room lamps by controlling the interior room lamp relay combined with controlling lamp grounds depending on input conditions.
Refer to System Description.
18. Illumination control switch

Illumination control switch is integrated with the combination meter and controls illumination.

Refer to Combination Meter (type A) or Combination Meter (type B) for detailed component location.
19. Combination switch (lighting and turn signal switch)

Transmits the combination switch signal to the BCM.

Refer to System Description.
20. Push-button ignition switch

Push-button ignition switch illumination is controlled by the Intelligent Key unit.

Refer to Push-Button Ignition Switch for detailed component location.
21.

Mood lamp (center console)

(if so equipped) 		Refer to Bulb Specifications.
22.

Mood lamp (center console tray)

(if so equipped) 		Refer to Bulb Specifications.
23. Intelligent Key unit

Transmits the door lock/unlock request signal to the BCM via CAN communication.

Refer to Component Parts Location for detailed component location.
24. Interior room lamp relay Turns ON/OFF the interior room lamps based on the control signal from the BCM and depending on Nissan Ariya vehicle conditions.
