Symptom Table

LOW TIRE PRESSURE WARNING LAMP SYMPTOM CHART

Diagnosis items

Symptom

(Ignition switch ON) 		Low tire pressure warning lamp Cause Action

Low tire pressure warning lamp

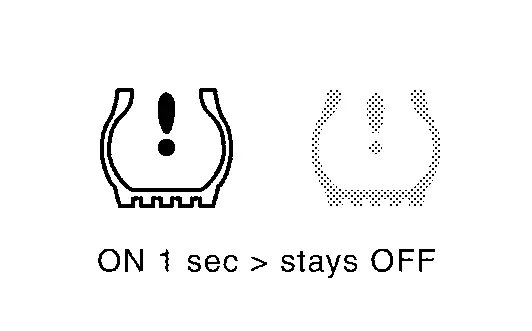

 The low tire pressure warning lamp illuminates for 1 second, then turns OFF.

Wake-up operation for all tire pressure sensors at wheels is completed. No system malfunctions

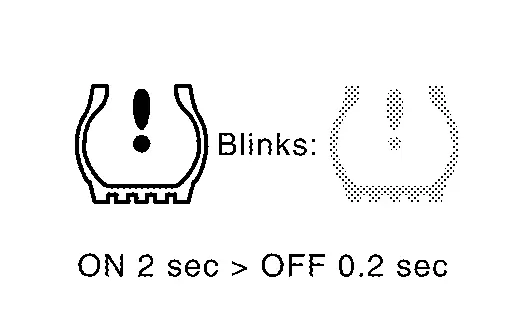

The low tire pressure warning lamp repeats blinking ON for 2 seconds and OFF for 0.2 seconds.

The all tire pressure sensor is not activated. Perform the ID registration for all tire pressure sensors at wheels. Refer to Description.

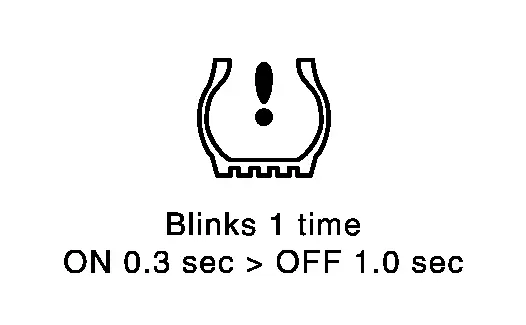

The low tire pressure warning lamp blinks once.

The front left tire pressure sensor is not activated. Perform the ID registration for the tire pressure sensor at front left wheel. Refer to Description.

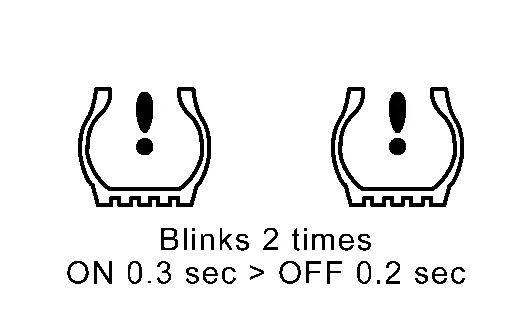

The low tire pressure warning lamp repeats blinking twice.

The front right tire pressure sensor is not activated. Perform the ID registration for the tire pressure sensor at front right wheel. Refer to Description.

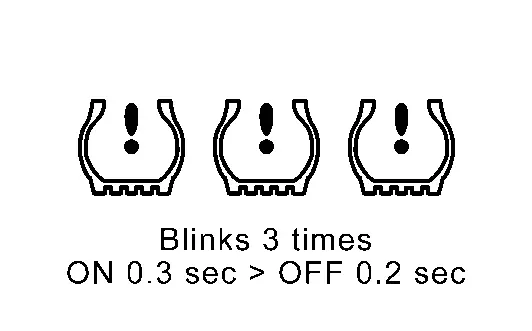

The low tire pressure warning lamp repeats blinking for 3 times.

The rear right tire pressure sensor is not activated. Perform the ID registration for the tire pressure sensor at rear right wheel. Refer to Description.

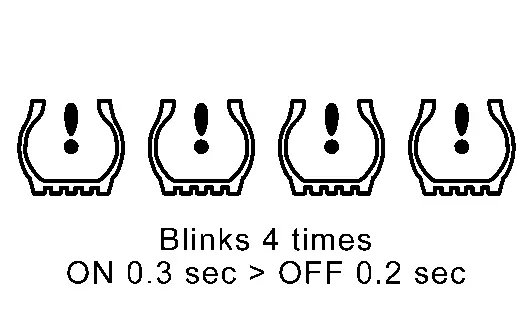

The low tire pressure warning lamp repeats blinking for 4 times.

The rear left tire pressure sensor is not activated. Perform the ID registration for the tire pressure sensor at rear left wheel. Refer to Description

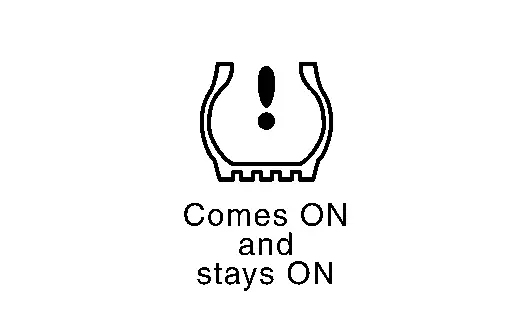

The low tire pressure warning lamp turns ON and stays illuminated.

Low tire pressure Check the tire pressure for all wheels and adjust to the specified value. Refer to Tire Air Pressure.

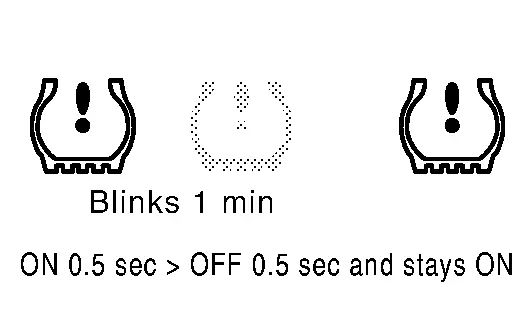

Low tire pressure warning lamp The low tire pressure warning lamp repeats blinking at 0.5-second intervals for 1 minute, and then stays illuminated.

The combination meter fuse is open or removed (or pulled out). Check and install the combination meter fuse. If necessary, replace the fuse.
The BCM harness connector is removed. Check the connection conditions of the BCM harness connector, and repair if necessary.
Tire Pressure Monitoring System (TPMS) malfunction.

  • Perform CONSULT self-diagnosis. Refer to CONSULT Function (BCM - AIR PRESSURE MONITOR).

  • If necessary, perform tire pressure sensor ID registration. Refer to Description.
