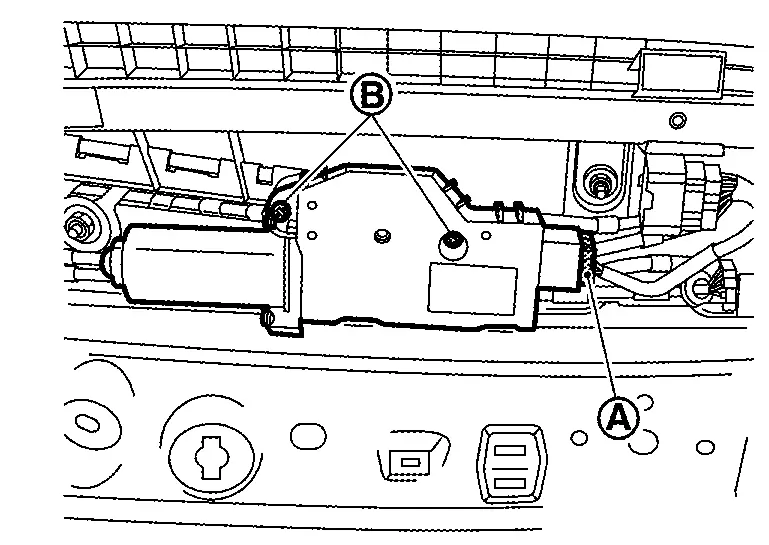

Exploded View

Refer to Exploded View.

Removal and Installation

REMOVAL

CAUTION:

  • Before removing sunshade motor, check that sunshade is fully opened.

  • After removing sunshade motor, never attempt to rotate sunshade motor assembly as a single unit.

Remove headlining to make work space. Refer to Removal and Installation.

Disconnect harness connector from sunshade motor assembly, and then, remove sunshade motor assembly fixing screws .

Remove sunshade motor assembly.

INSTALLATION

CAUTION:

  • Install moonroof motor assembly and sunshade motor assembly in correct position without mistake.

  • Before installing the sunshade motor assembly, always place the link and wire of sunshade slider in the symmetrical and fully opened position.

Move the sunshade motor assembly laterally a little so that the gear is completely engaged into the wire on the moonroof unit assembly and mounting surface becomes parallel. Then secure the sunshade motor assembly with screws.

Connect harness connector.

Install headlining. Refer to Removal and Installation.

NOTE:

After installation sunshade motor assembly, perform additional service. Refer to Description.
