Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Drain Connector

Nissan Rogue (T33) 2021-Present Service Manual / Body Exterior, Doors, Roof & Vehicle Security :: Roof / Removal and Installation :: Drain Connector

Exploded View

Refer to Exploded View.

Removal and Installation

REMOVAL

Front

Remove instrument panel speaker.

  • Without BOSE : Refer to Removal and Installation.

  • With BOSE : Refer to Removal and Installation.

Remove front wiper drive assembly. Refer to Removal and Installation.

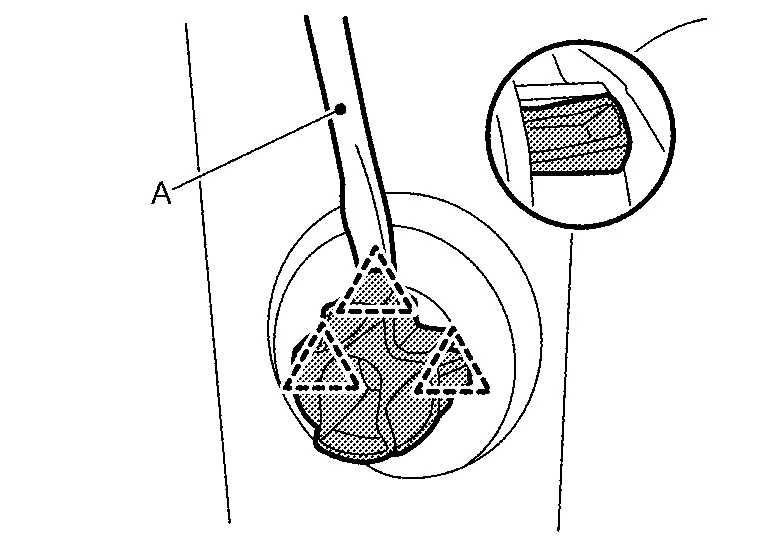

Disengage front drain connector fixing pawls using remover tool (A), push it into the Nissan Ariya vehicle interior.

: Pawl

NOTE:

Attach a string to the end of drain connector, for use when performing installation procedure.

Remove front drain connector from front drain hose.

Rear

Remove rear bumper fascia. Refer to Removal and Installation.

Remove luggage side lower finisher RH. Refer to Removal and Installation.

Remove tool box cover of luggage side lower finisher LH. Refer to Exploded View.

Disengage rear drain connector fixing pawls using remover tool (A), push it into the Nissan Ariya vehicle interior.

: Pawl

NOTE:

Attach a string to the end of drain connector, for use when performing installation procedure.

Remove rear drain connector from rear drain hose.

INSTALLATION

Install in the reverse order of removal.
