Power Socket

Console Power Socket

Removal and Installation

REMOVAL

Remove switch panel. Refer to Removal and Installation.

Press the power socket fixing pawls from the back of the switch panel to remove the power socket.

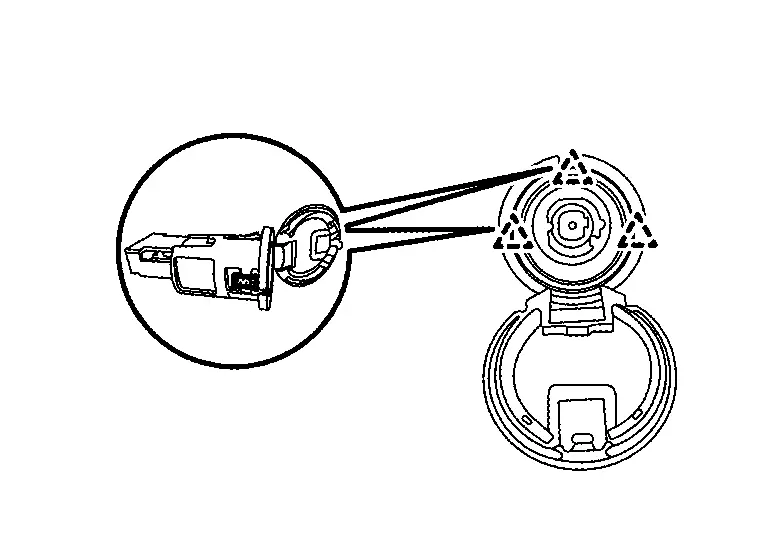

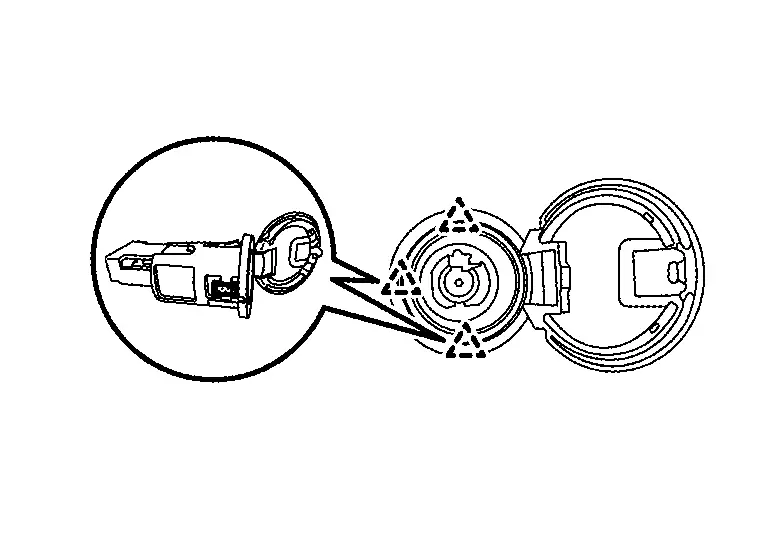

: Pawl

INSTALLATION

Note the following, and install in the reverse order of removal.

Align the cut outs of power socket and power socket finisher assembly.

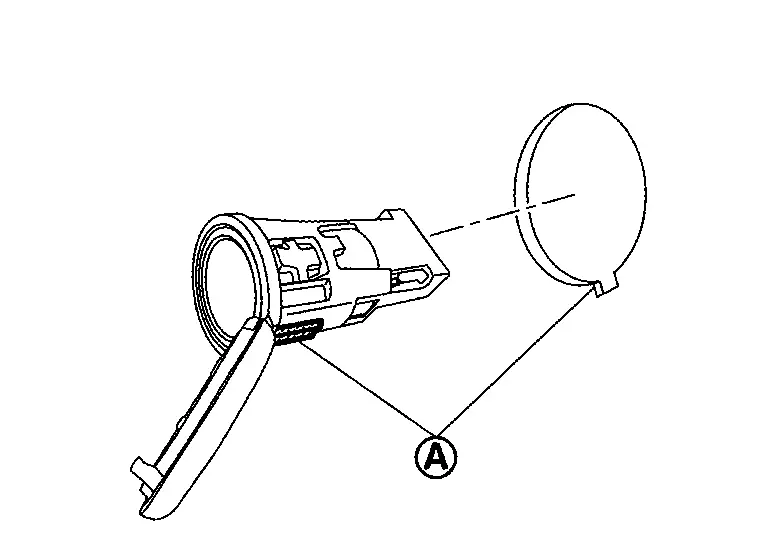

: Cut out

Rear Cargo Power Socket

Removal and Installation

REMOVAL

Remove seatback release lever assembly mounting bolt (With seatback release lever assembly only). Refer to Removal and Installation.

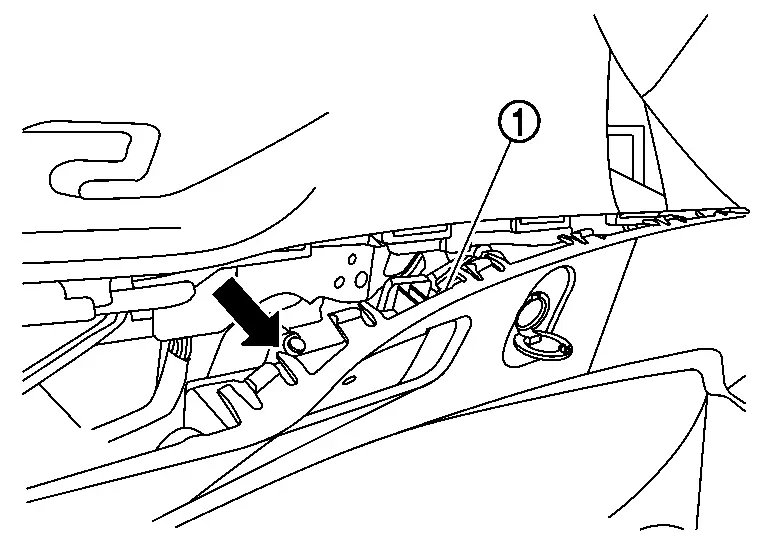

Make a clearance by pulling the luggage side lower finisher LH (1).

Press the power socket fixing pawl from the back of the luggage side lower finisher LH to extrude the power socket.

: Pawl

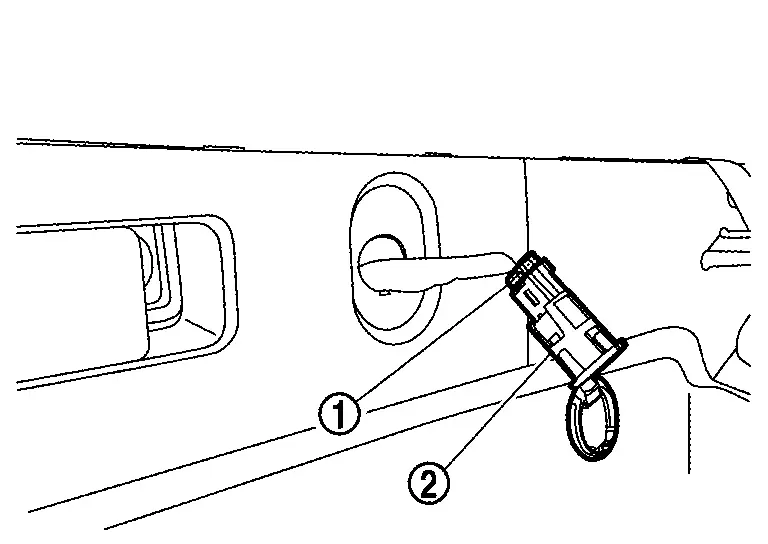

Disconnect harness connector (1) and remove the power socket (2).

INSTALLATION

Note the following, and install in the reverse order of removal.

Align the cut outs of power socket and luggage side lower finisher LH.

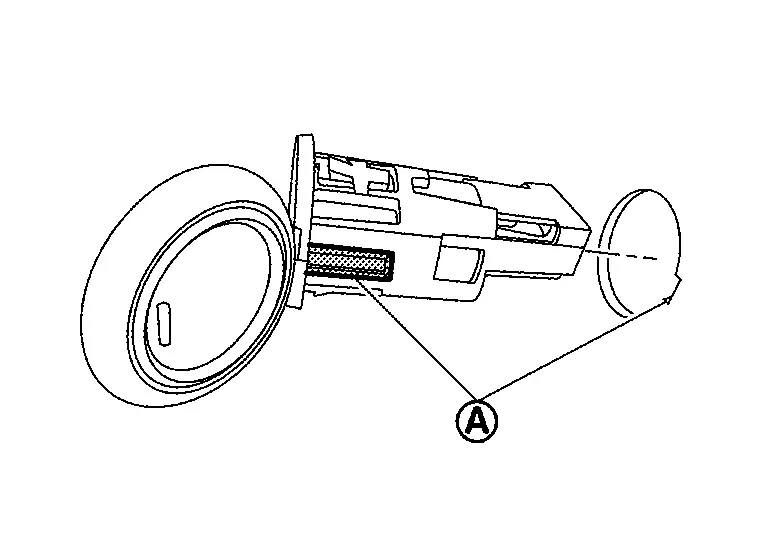

: Cut out
