Component Parts

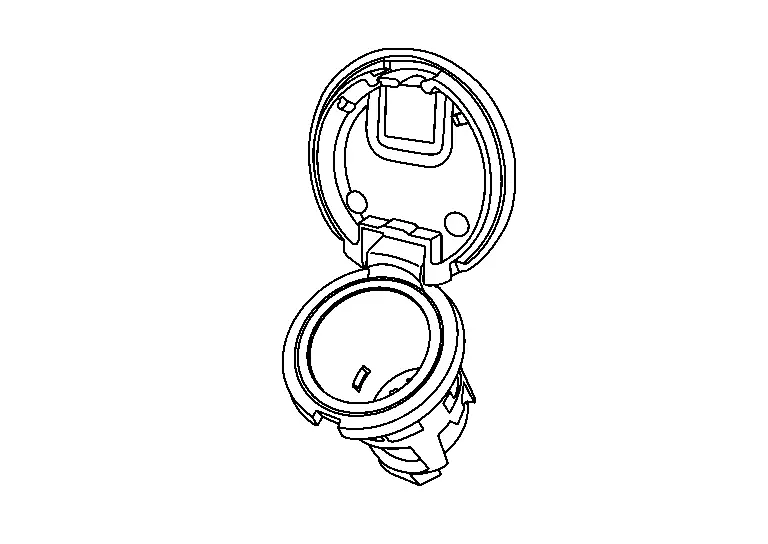

Power Socket

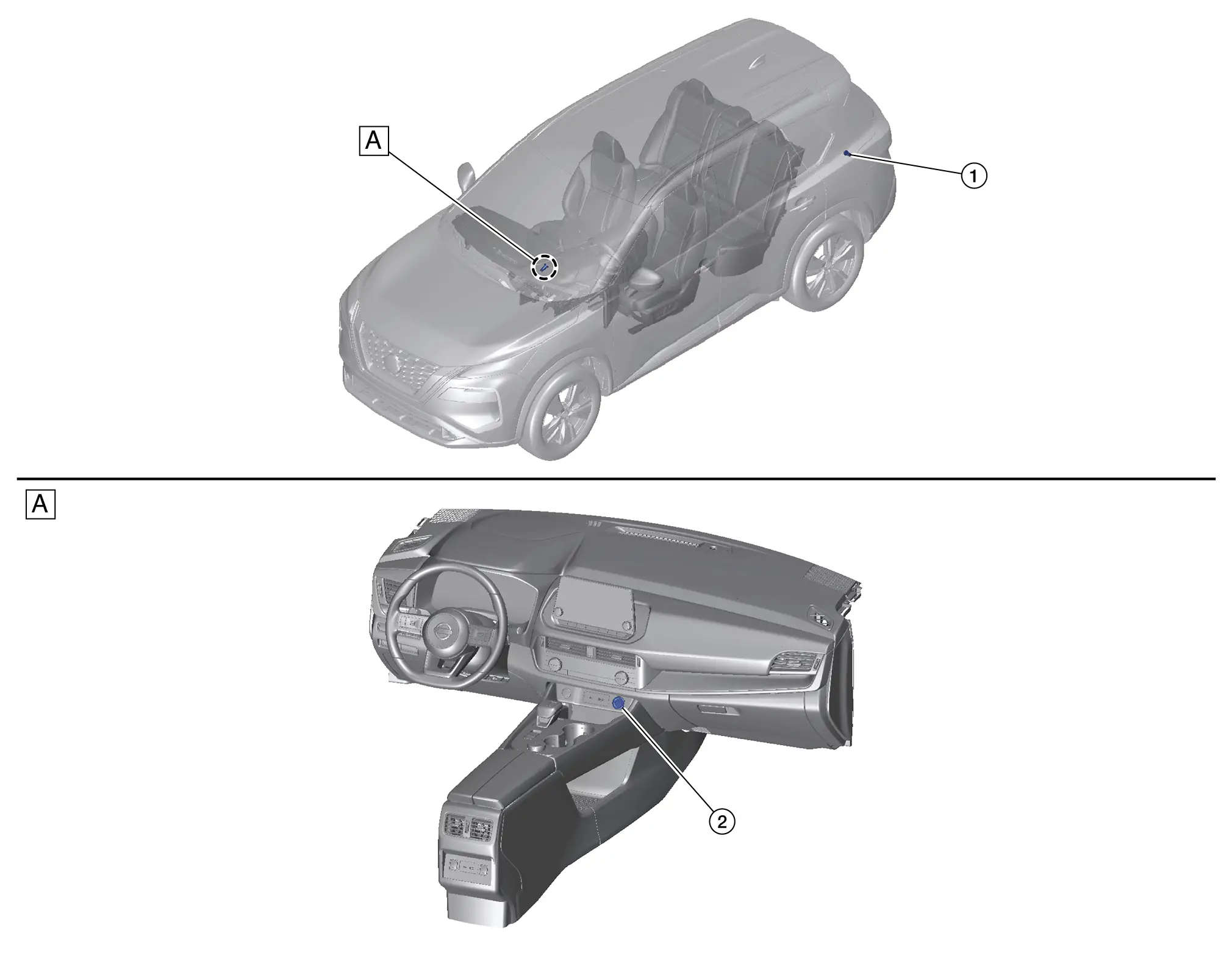

Component Parts Location

No.Component
1. Rear cargo power socket (If so equipped)
2. Console power socket

Power Socket

CONSOLE POWER SOCKET

12 V power can be supplied.

Specification
Rated voltage DC 12 V
Maximum electric capacity 120 W or less (Total)
Maximum current 10 A or less (Total)

NOTE:

  • Use the power socket while engine is running to avoid dead battery.

  • To prevent the fuse from blowing, use electrical devices with a rated voltage of DC 12 V, maximum power capacity of 120 W or less, and maximum current of 10 A or less, and do not use power strip.

  • Be sure to fully insert plugs of electrical devices.

REAR CARGO POWER SOCKET

12 V power can be supplied.

Specification
Rated voltage DC 12 V
Maximum electric capacity 120 W or less (Total)
Maximum current 10 A or less (Total)

NOTE:

  • Use the power socket while engine is running to avoid dead battery.

  • To prevent the fuse from blowing, use electrical devices with a rated voltage of DC 12 V, maximum power capacity of 120 W or less, and maximum current of 10 A or less, and do not use power strip.

  • Be sure to fully insert plugs of electrical devices.
