Component Parts

Usb Charge Port

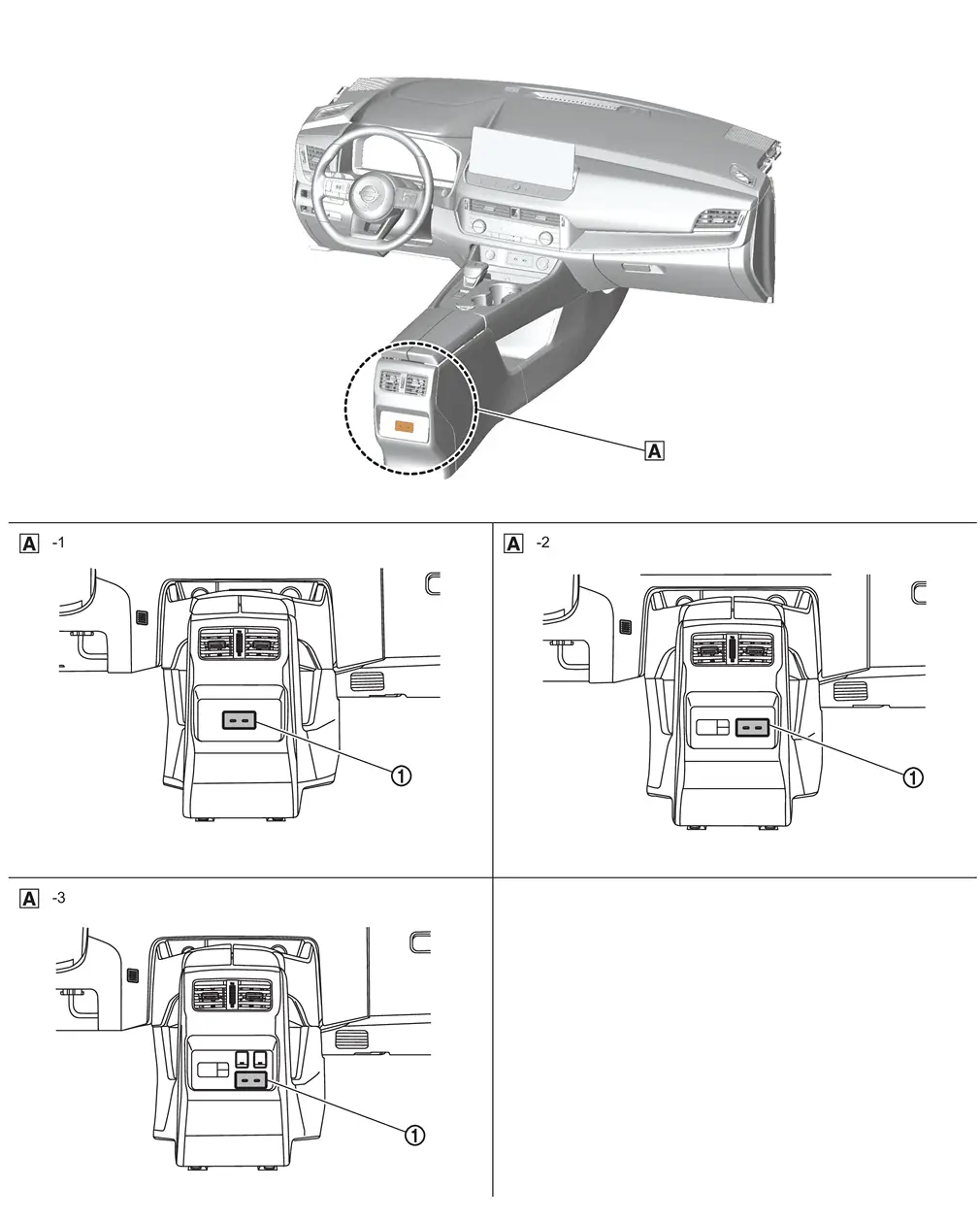

Component Parts Location

A -1 TYPE 1 A -2 TYPE 2 A -3 TYPE 3
No.Component
1. Rear USB charge port

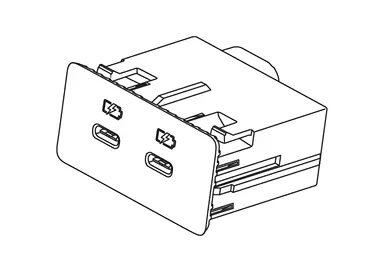

USB Charge Port

USB Charge Port

Supply DC 5V from the (USB) port.

Specification
Rated voltage （V） 5
Maximum electric capacity （W） 12 or less (Total)
Maximum current （A） 2.4 or less (Total)
USB Type   Type C/Type C

NOTE:

  • Use the power socket while engine is running to avoid dead battery.

  • To prevent the fuse from blowing, use mobile devices with a rated voltage of 5 V, maximum power capacity of 12 W or less, and maximum current of 2.4 A or less, and do not use power strip.

  • Be sure to fully insert plugs of mobile devices.
