Fuel System

Hydraulic Layout

2WD

1. EVAP line (EVAP canister to EVAP canister purge volume control solenoid valve) 2. Fuel level sensor unit, fuel filter and fuel pump assembly 3. Fuel filler tube
4. Fuel tank 5. EVAP canister 6. Fuel feed line
7. High pressure fuel pump 8. EVAP canister purge volume control solenoid valve — —
View — — — —

CAUTION:

Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

AWD

1. EVAP line (EVAP canister to EVAP canister purge volume control solenoid valve) 2. Fuel level sensor unit, fuel filter and fuel pump assembly 3. Sub fuel level sensor assembly
4. Fuel filler tube 5. Fuel tank 6. EVAP canister
7. Fuel feed line 8. High pressure fuel pump 9. EVAP canister purge volume control solenoid valve
View — — — —

CAUTION:

Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

Quick Connector

CAUTION:

  • After connecting fuel tube quick connectors, check quick connectors are secure.

    : Quick connector
    : Retainer
    : Hard tube (or the equivalent)
    : Connection (cross-section)
    : Resin tube
    : To under floor fuel line
    : To fuel tank
    : Tab
    : Disconnection

  • Ensure that connector and resin tube never contact any adjacent parts.

Inspection

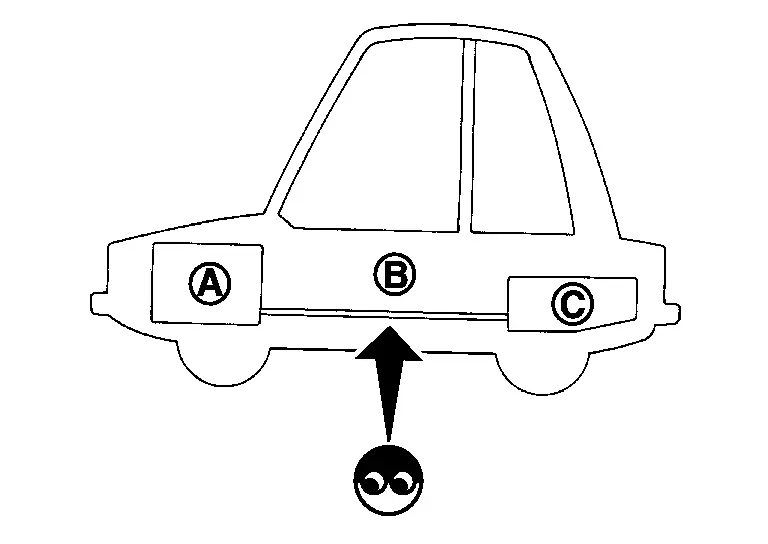

Inspect fuel lines, fuel filler cap, and fuel tank for improper attachment, leakage, cracks, damage, loose connections, chafing or deterioration.

: Engine
: Fuel line
: Fuel tank

If necessary, repair or replace damaged parts.
