Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Rear Wheel House Protector

Nissan Rogue (T33) 2021-Present Service Manual / Body Exterior, Doors, Roof & Vehicle Security :: Exterior / Removal and Installation :: Rear Wheel House Protector

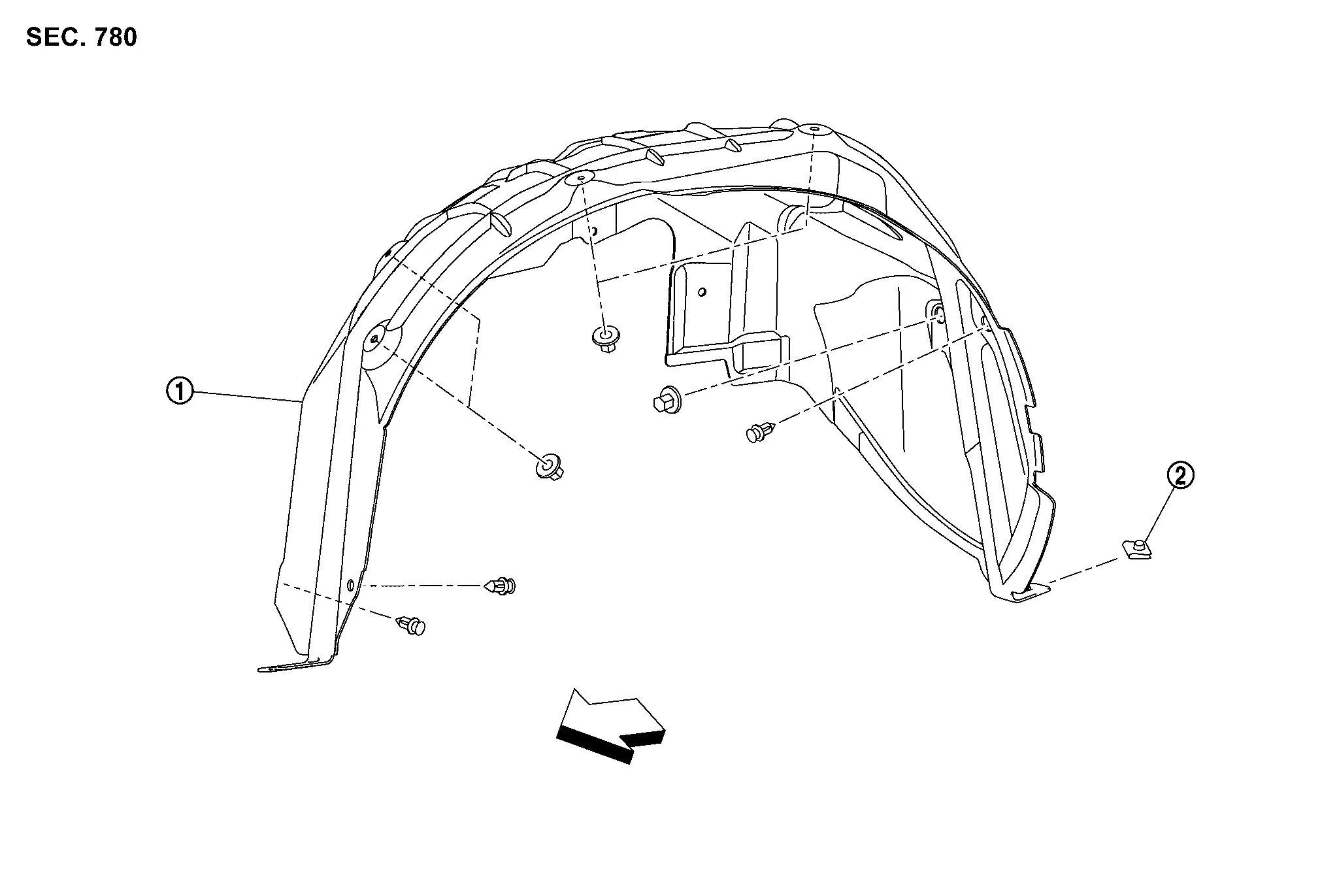

Exploded View

Rear wheel house protector Spring nut
: Nissan Ariya Vehicle front

Removal and Installation

REMOVAL

Remove rear fillet molding rear. Refer to Removal and Installation.

Remove rear parting seal. Refer to Removal and Installation.

Remove rear deflector. Refer to Removal and Installation.

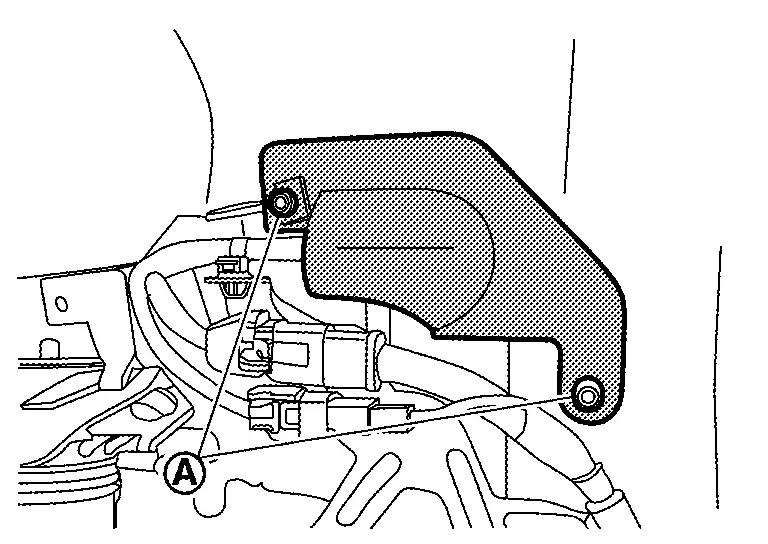

Remove harness cover mounting nuts , and then remove harness cover.

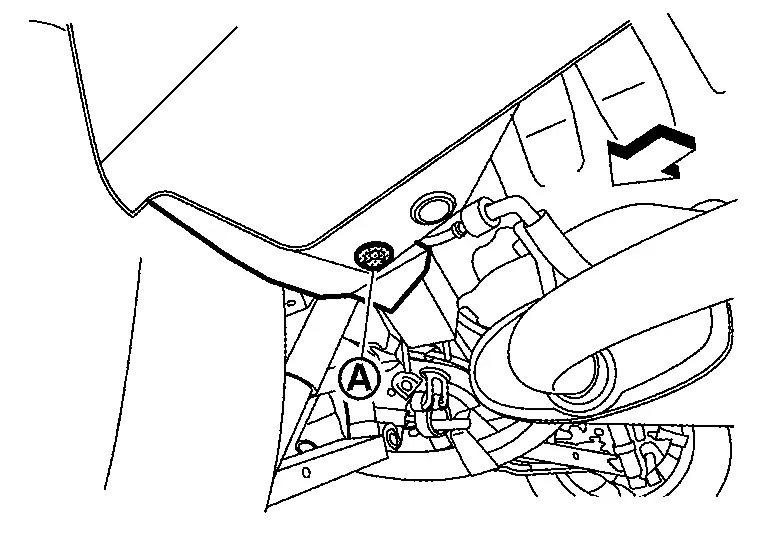

Remove rear wheel house protector mounting bolt of rear bumper fascia lower side.

: Nissan Ariya Vehicle front

Remove rear wheel house protector fixing clips, and then remove rear wheel house protector.

INSTALLATION

Installation is in the reverse order of removal.
