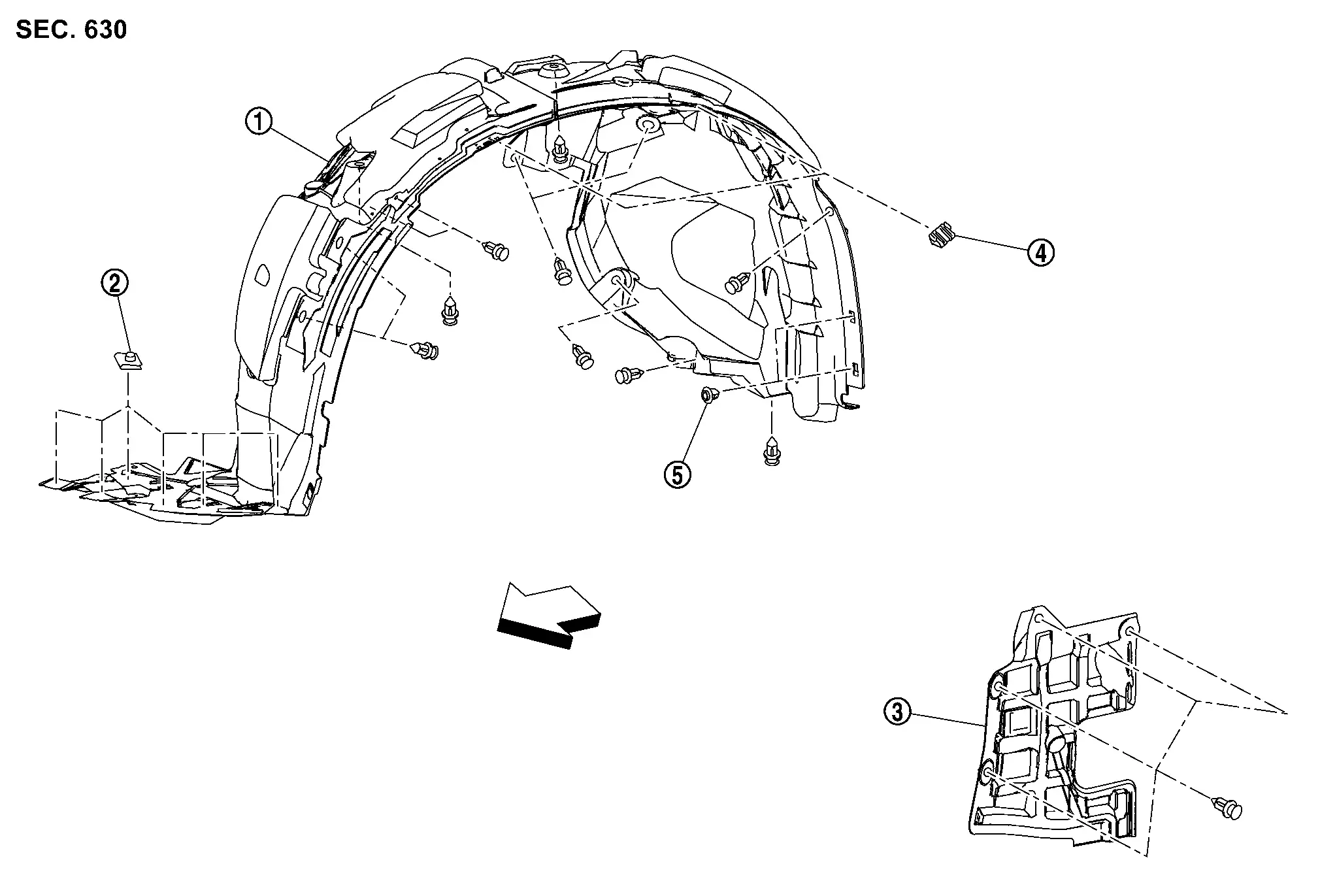

Exploded View

Front fender protector Clip nut Splash guard
Fender clip Screw grommet
: Nissan Ariya Vehicle front

Removal and Installation

REMOVAL

Remove front spoiler. Refer to Removal and Installation.

Remove front fillet molding. Refer to Removal and Installation.

Remove engine under cover front and engine under cover. Refer to Removal and Installation.

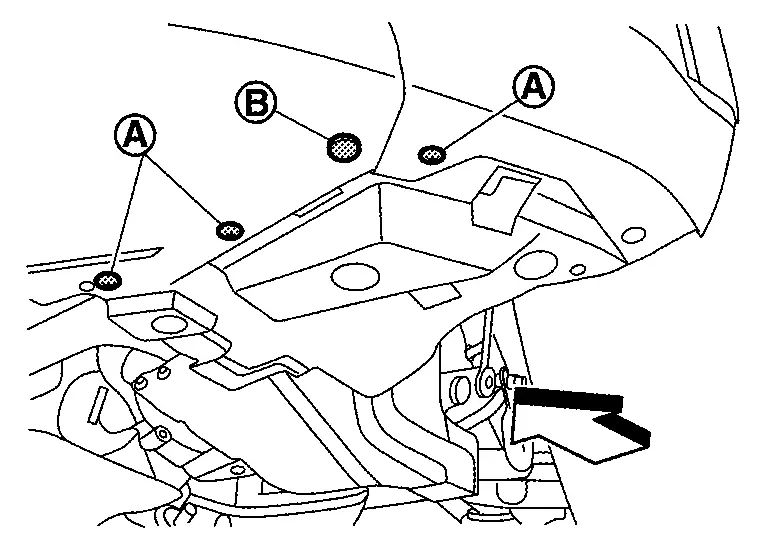

Remove splash guard fixing clips, and then remove splash guard.

Remove front fender protector fixing screw and clip of front fender protector front side.

: Nissan Ariya Vehicle front

Remove screw grommet.

Remove front fender protector fixing screw and clips, and then remove front fender protector.

INSTALLATION

Installation is in the reverse order of removal.
