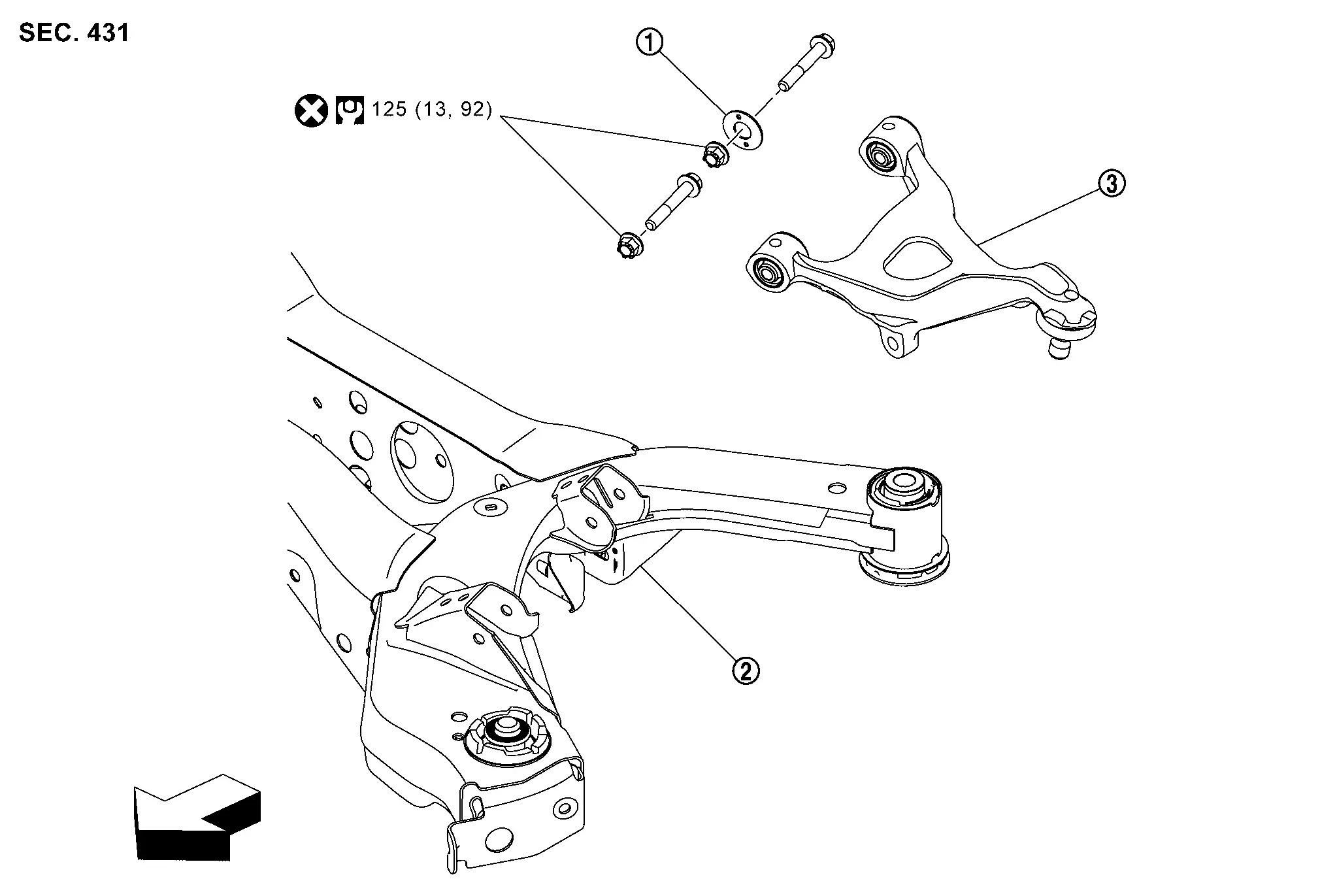

Exploded View

JAPAN PRODUCTION MODELS

Stopper rubber Rear suspension member Rear suspension arm
: Nissan Ariya Vehicle front
: N·m (kg-m, ft-lb)
: Always replace after every disassembly.

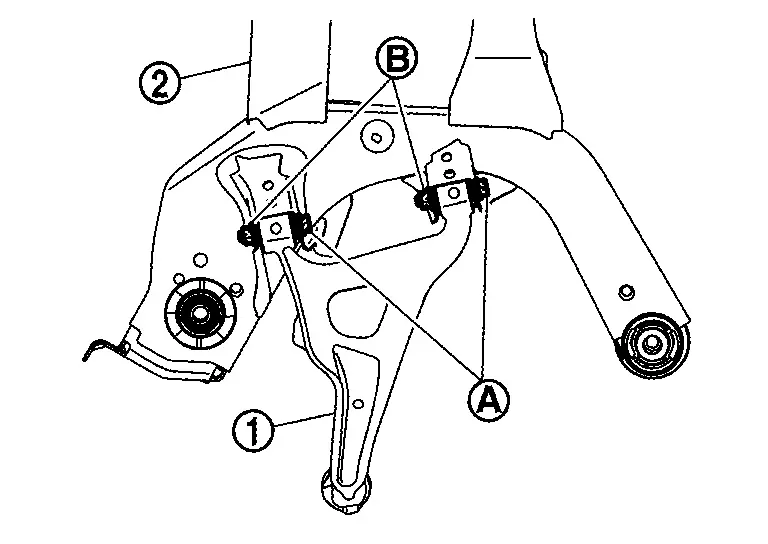

NORTH AMERICA PRODUCTION MODELS

Stopper rubber Rear suspension member Rear suspension arm
: Nissan Ariya Vehicle front
: N·m (kg-m, ft-lb)
: Always replace after every disassembly.

Removal and Installation

REMOVAL

Remove rear suspension member. Refer to Removal and Installation.

Remove rear suspension arm mounting bolts and nuts , and then remove rear suspension arm from rear suspension member .

Perform inspection after removal. Refer to Inspection.

INSTALLATION

Note the following, and install in the reverse order of removal.

  • Perform final tightening of fixing parts at the vehicle installation position (rubber bushing), under unladen conditions with tires on level ground.

  • Perform inspection after installation. Refer to Inspection.

Inspection

INSPECTION AFTER REMOVAL

Check suspension arm and bushing for deformation, crack, and damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

Check wheel alignment. Refer to Inspection.
