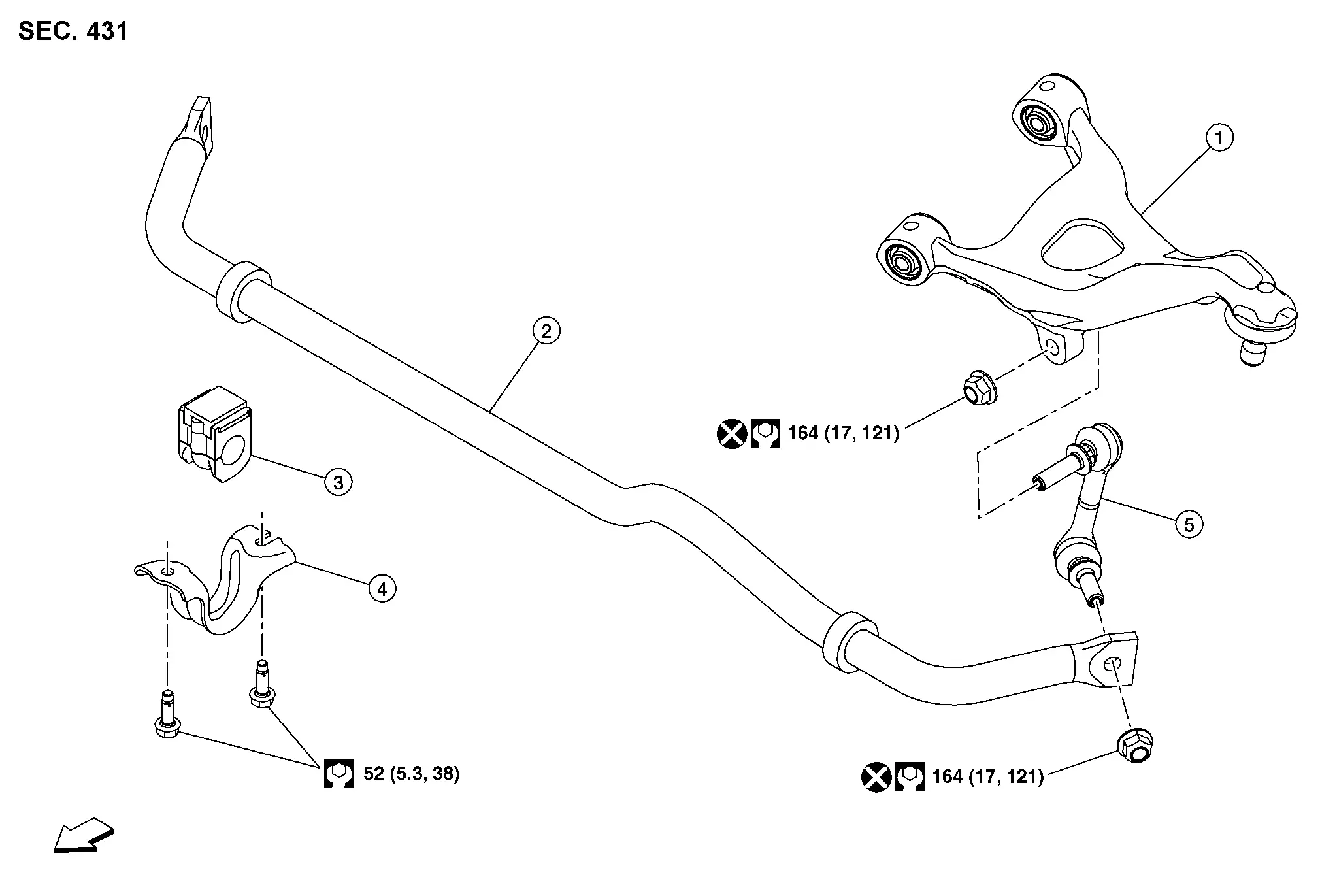

Exploded View

Rear suspension arm Rear stabilizer bar Rear stabilizer bushing
Rear stabilizer clamp Rear stabilizer connecting rod
: Nissan Ariya Vehicle front
: N·m (kg-m, ft-lb)
: Always replace after every disassembly.

Removal and Installation

REMOVAL

Remove rear shock absorber.

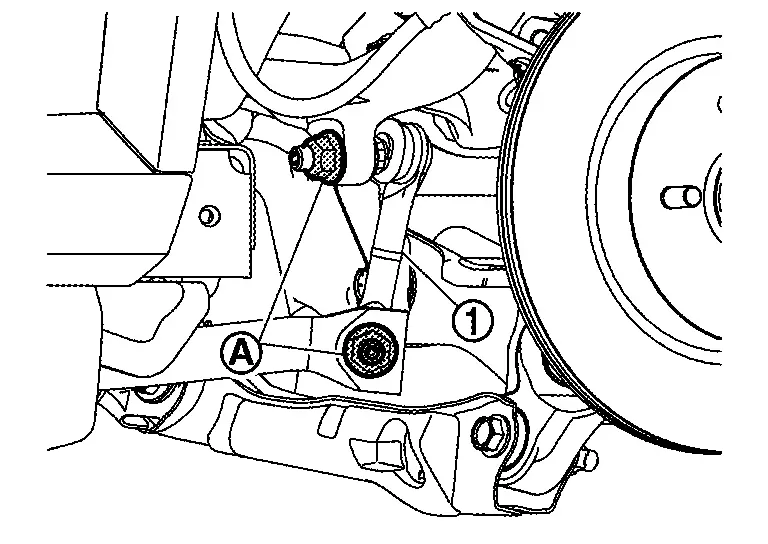

Remove stabilizer connecting rod mounting nuts .

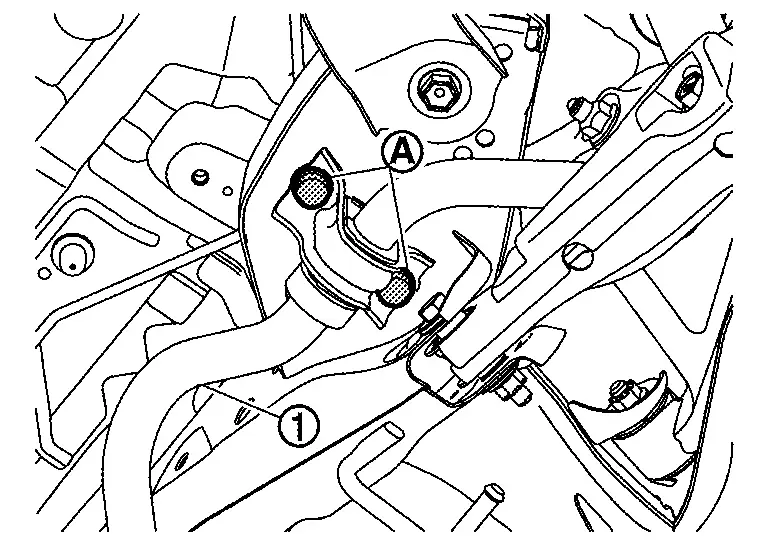

Remove rear stabilizer clamp mounting nuts , and then rear remove rear stabilizer bar from suspension member.

Perform inspection after removal. Refer to Inspection.

INSTALLATION

Note the following, and install in the reverse order of removal.

  • Perform final tightening of fixing parts at the vehicle installation position (rubber bushing), under unladen conditions with tires on level ground.

  • Perform inspection after installation. Refer to Inspection.

Inspection

INSPECTION AFTER REMOVAL

Check stabilizer bar, stabilizer link, stabilizer bushing and stabilizer clamp for deformation, cracks or damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

Check wheel alignment. Refer to Inspection.
