Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Radius Rod

Nissan Rogue (T33) 2021-Present Service Manual / Suspension :: Rear Suspension / Removal and Installation :: Radius Rod

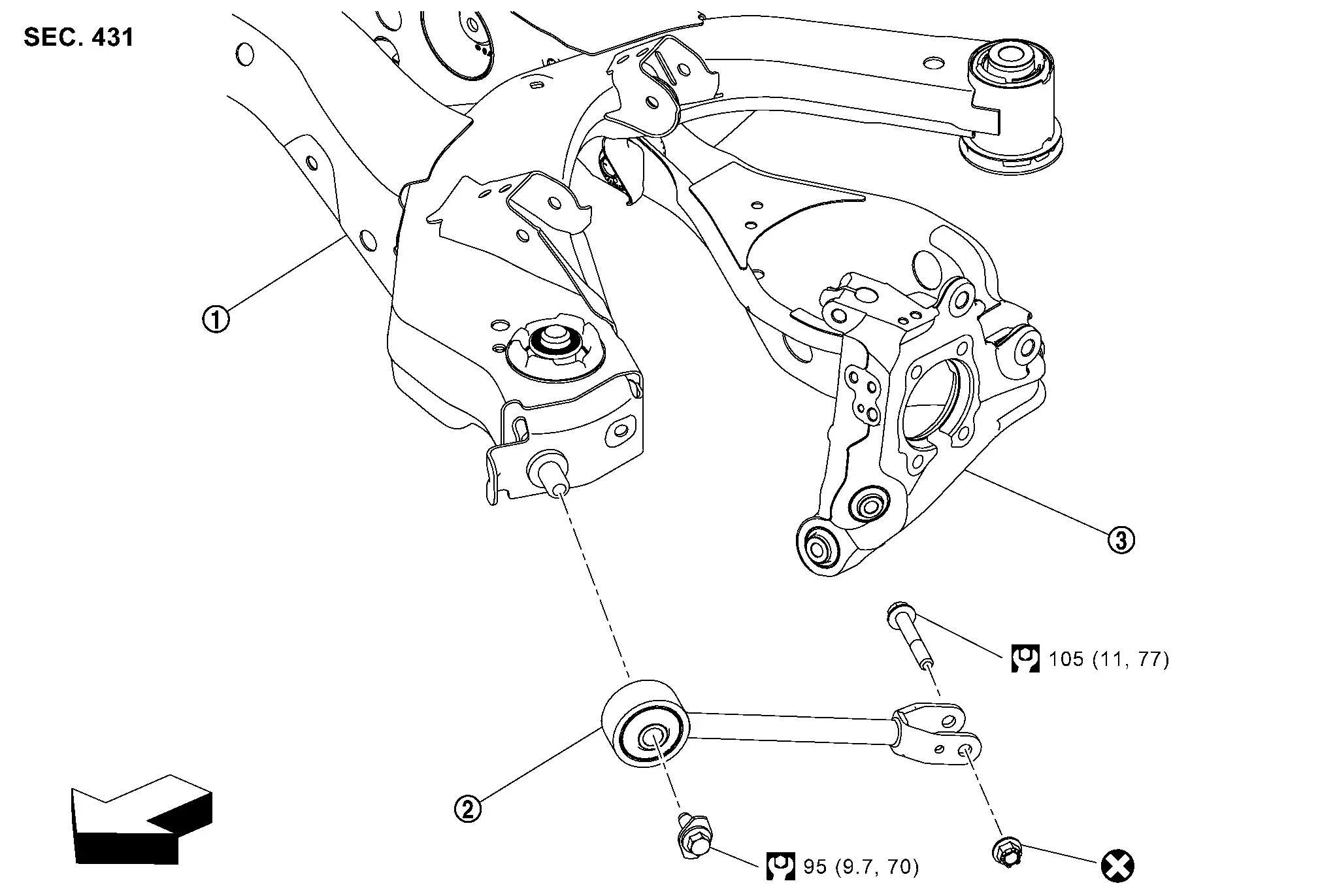

Exploded View

JAPAN PRODUCTION MODELS

Rear suspension member Radius rod Axle housing
: Nissan Ariya Vehicle front
: N·m (kg-m, ft-lb)
: Always replace after every disassembly.

NORTH AMERICA PRODUCTION MODELS

Rear suspension member Radius rod Axle housing
: Nissan Ariya Vehicle front
: N·m (kg-m, ft-lb)
: Always replace after every disassembly.

Removal and Installation

REMOVAL

Remove tires. Refer to Removal and Installation.

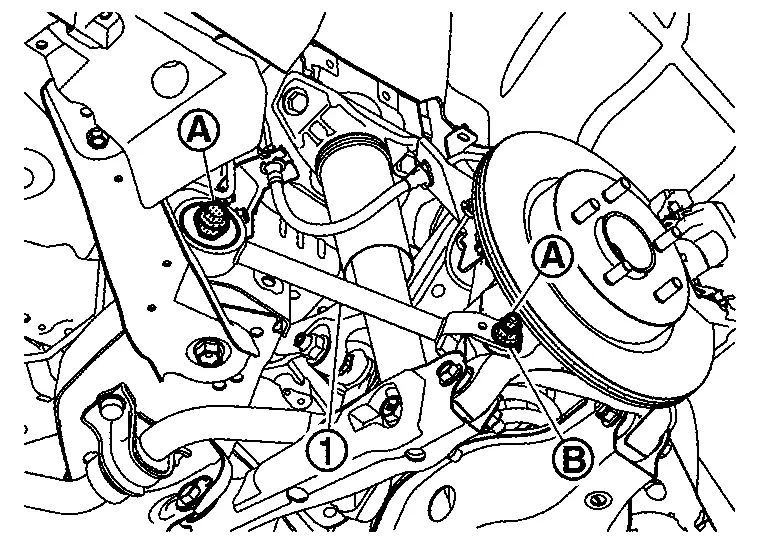

Remove radius rod mounting bolts and nut .

Remove radius rod.

Perform inspection after removal. Refer to Inspection.

INSTALLATION

Note the following, and install in the reverse order of removal.

  • Perform final tightening of fixing parts at the vehicle installation position (rubber bushing), under unladen conditions with tires on level ground.

  • Perform inspection after installation. Refer to Inspection.

Inspection

INSPECTION AFTER REMOVAL

Check radius rod and bushing for deformation, cracks, and other damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

Check wheel alignment. Refer to Inspection.
