Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Rear Moonroof Glass

Exploded View

Refer to Exploded View.

Removal and Installation

CAUTION:

Always work with a helper.

REMOVAL

Remove moonroof unit assembly. Refer to Removal and Installation.

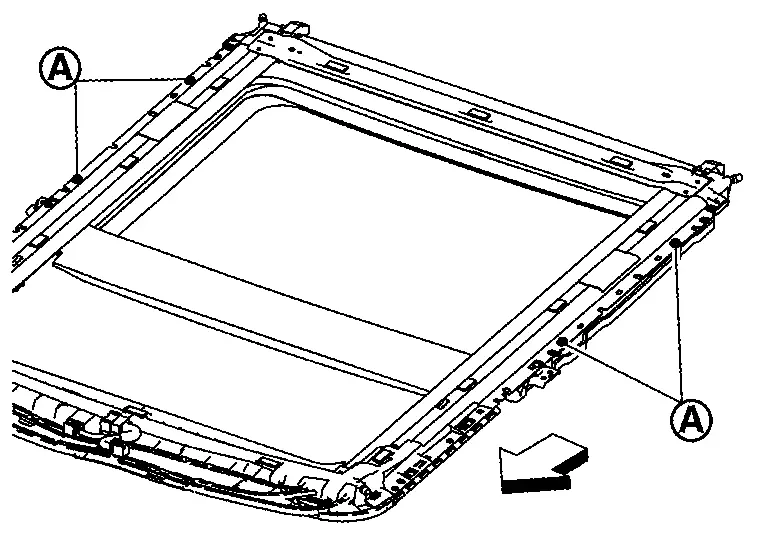

Remove rear moonroof glass fixing screws .

: Nissan Ariya Vehicle front

Remove rear moonroof glass.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

After installing the rear moonroof glass, perform the leak test and check that there is no malfunction.

NOTE:

After installation, carry out fitting adjustment. Refer to Adjustment.

Adjustment

	Rear moonroof glass		Glass lid		Roof panel
	: Nissan Ariya Vehicle front

If the clearance and the surface height are out of specification, adjust them according to the procedures shown below.

NOTE:

Standard of surface height is given assuming that the glass upper side status is (+), and the glass lower side status is (−) relative to the roof panel.

Unit: mm [in]

Portion				Standard
Roof panel – Rear moonroof glass	–	E	Clearance	6.7 – 8.3 [0.264 – 0.327]
		F	Surface height	(−1.0) – (+2.4) [(−0.039) – (+0.094)]
	–	G	Clearance	6.6 – 8.2 [0.260 – 0.323]
		H	Surface height	(−1.0) – (+2.4) [(−0.039) – (+0.094)]
Roof panel – Glass lid	–	I	Clearance	6.4 – 8.0 [0.252 – 0.315]
		J	Surface height	(−1.0) – (+2.4) [(−0.039) – (+0.094)]
	–	K	Clearance	6.4 – 8.0 [0.252 – 0.315]
		L	Surface height	(−1.0) – (+2.4) [(−0.039) – (+0.094)]

Loosen rear moonroof glass fixing screws.

Adjust the clearance of rear moonroof glass and roof panel according to the fitting standard dimension.

To prevent rear moonroof glass from moving after adjustment, first tighten the fixing screw of front left, and then tighten the fixing screw of rear right.

Tighten remaining fixing screws, being careful to prevent rear moonroof glass from moving.

NOTE:

After adjustment the moonroof unit assembly, perform additional service. Refer to Work Procedure.
