Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Rear Deflector

Nissan Rogue (T33) 2021-Present Service Manual / Body Exterior, Doors, Roof & Vehicle Security :: Exterior / Removal and Installation :: Rear Deflector

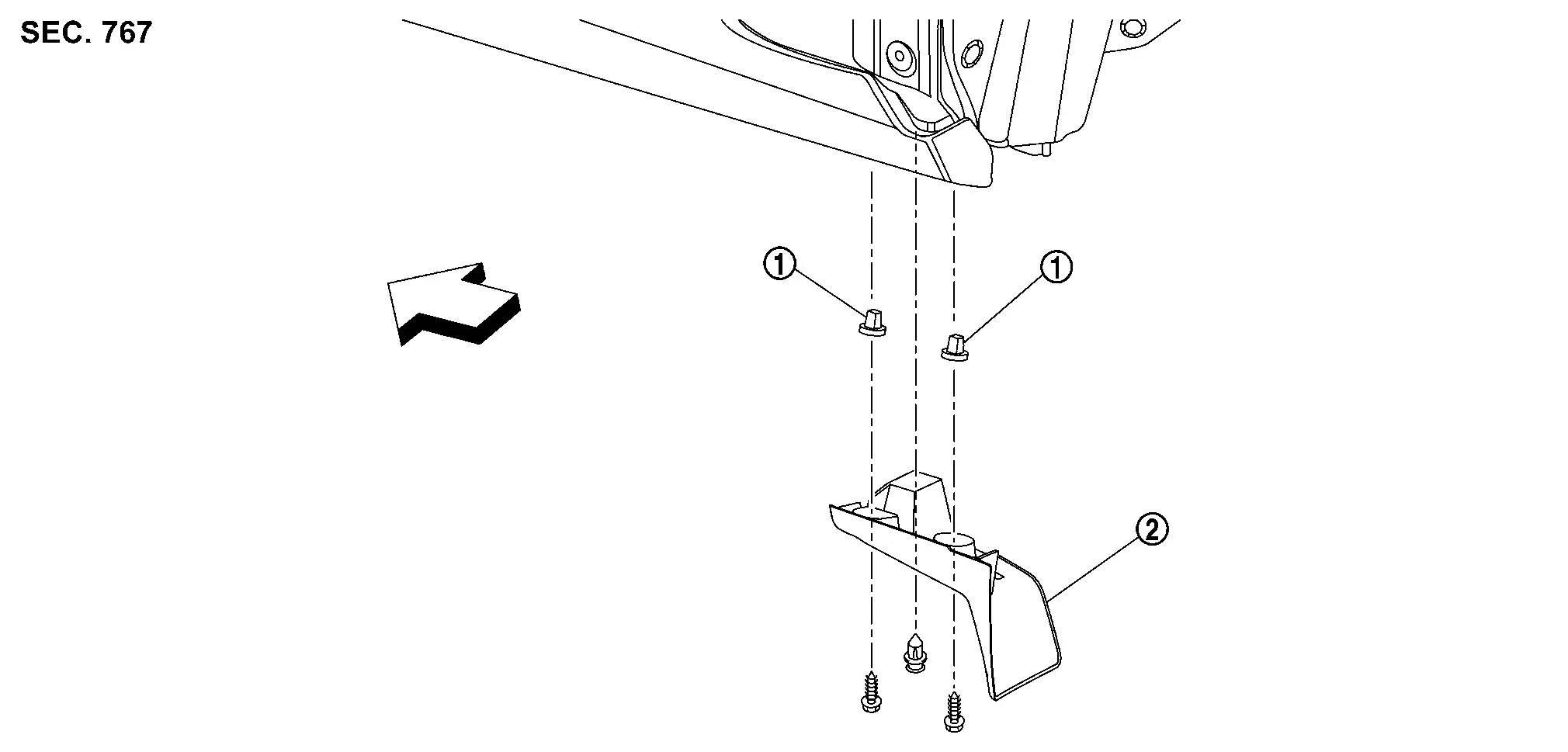

Exploded View

Screw grommet Rear deflector
: Nissan Ariya Vehicle front

Removal and Installation

REMOVAL

Remove rear deflector fixing screws and clip, and then remove rear deflector.

INSTALLATION

Installation is in the reverse order of removal.
