Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Power Window Main Switch

Nissan Rogue (T33) 2021-Present Service Manual / Body Exterior, Doors, Roof & Vehicle Security :: Power Window Control System / Removal and Installation :: Power Window Main Switch

Removal and Installation

CAUTION:

Never bend the fixing pawl of power window switch finisher.

REMOVAL

Remove power window switch finisher. Refer to Removal and Installation.

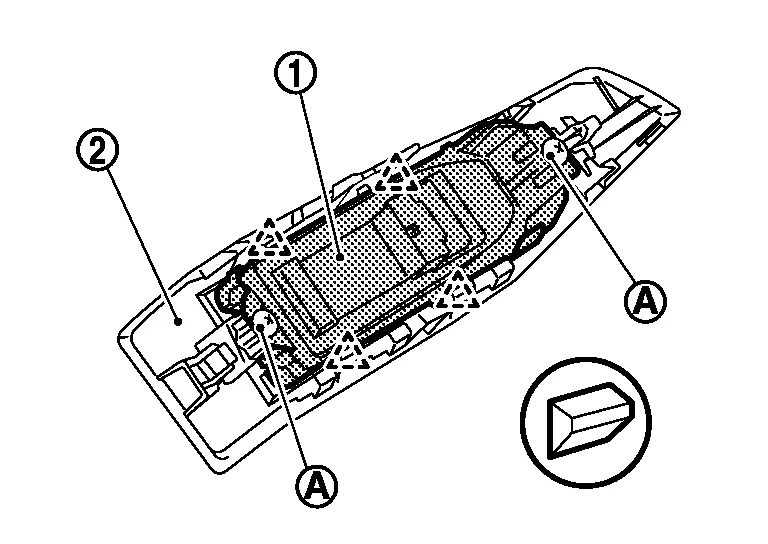

Remove power window main switch fixing screws , and then remove power window main switch from power window switch finisher .

: Pawl

INSTALLATION

Note the following, and then install in the reverse order of removal.

CAUTION:

When power window main switch in a vehicle with AUTOMATIC DRIVE POSITIONER is replaced, re-register mirror surface position information. Refer to Description.
