Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Front Power Window Switch Lh
Removal and Installation
CAUTION:
Never bend the fixing pawl of power window switch finisher.
REMOVAL
Remove power window switch finisher. Refer to Removal and Installation.

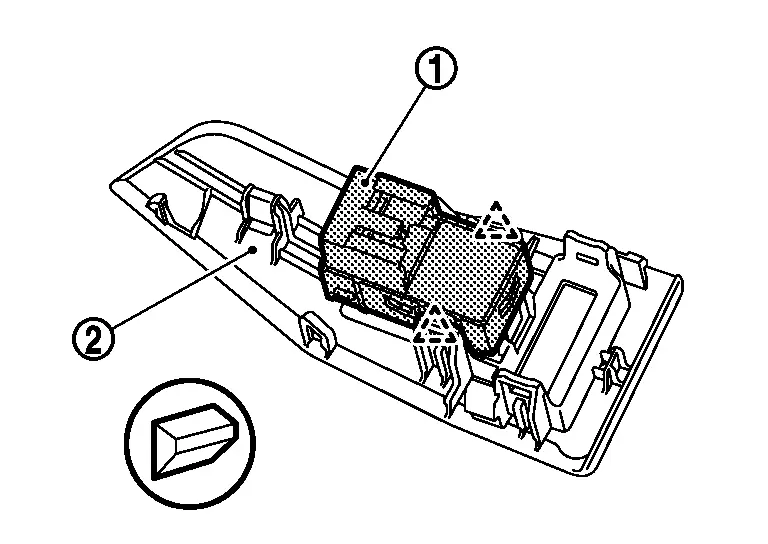

Remove front power window switch (passenger side)
from power window switch finisher
.
 |
: Pawl |
INSTALLATION
Install in the reverse order of removal.
