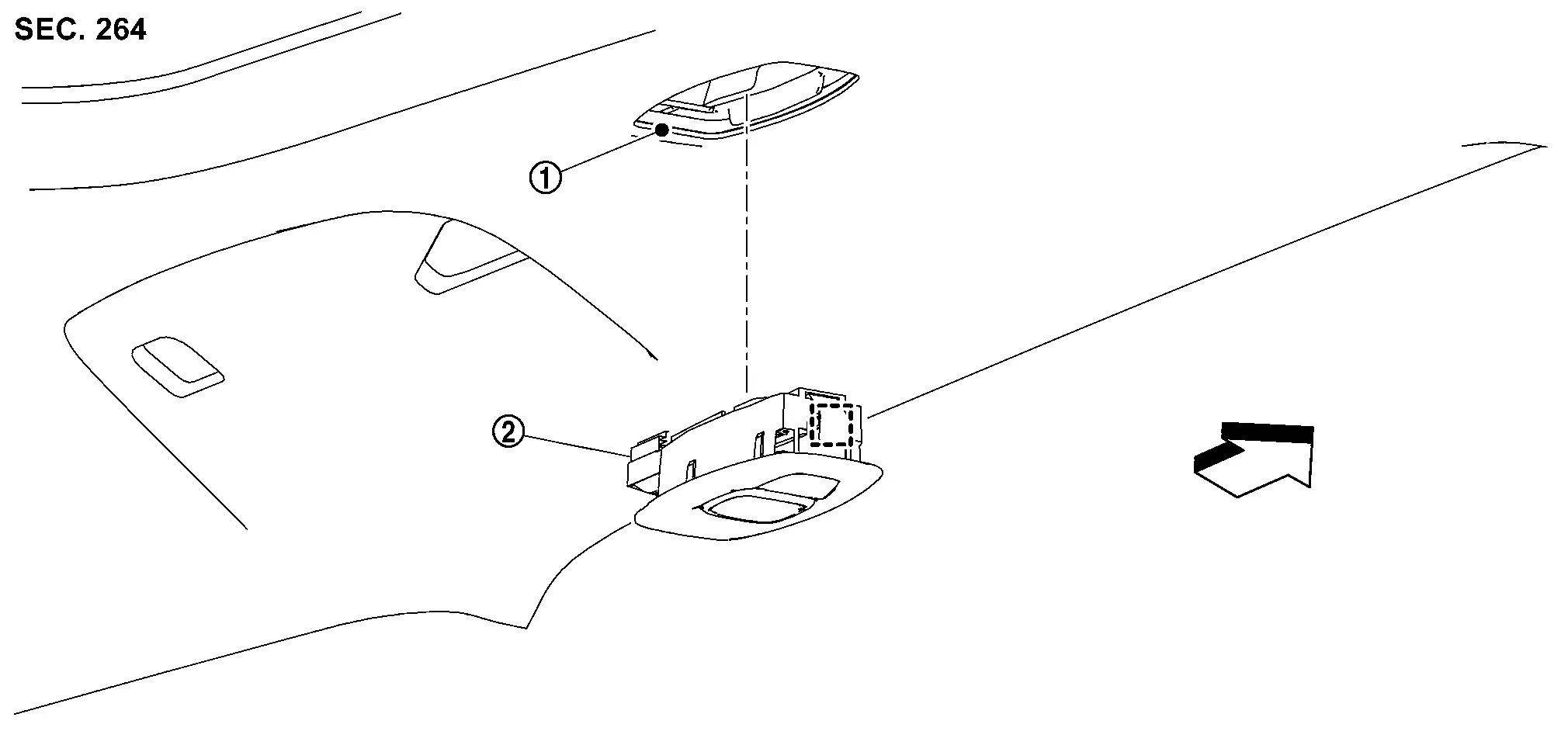

Exploded View

Headlining assembly Personal lamp assembly
: Metal clip
: Nissan Ariya Vehicle front

Removal and Installation

REMOVAL

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.

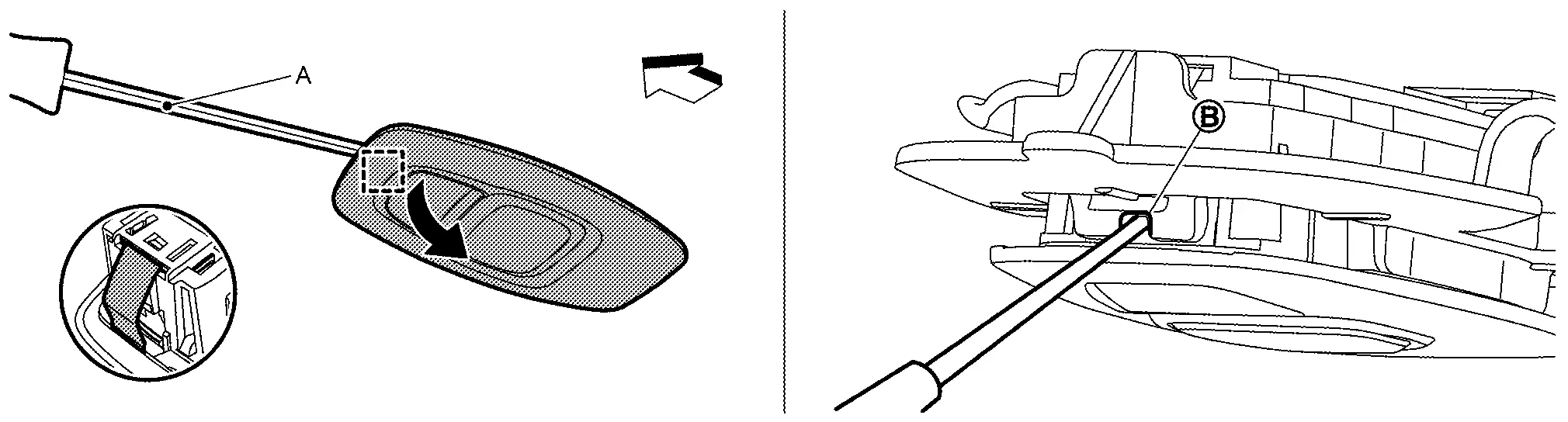

Insert a remover tool (A) into a point , and then disengage personal lamp assembly fixing metal clip.

: Metal clip
: Nissan Ariya Vehicle front

Disconnect harness connector, and then remove personal lamp assembly.

INSTALLATION

Install in the reverse order of removal.

Replacement

PERSONAL LAMP BULB

CAUTION:

  • Disconnect the battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.

  • Replace personal lamp assembly as a set. Refer to Removal and Installation.

    Removal and Installation. Room Lamp
