Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Mood Lamp (instrument Panel Center)

Nissan Rogue (T33) 2021-Present Service Manual / Driver Controls :: Interior Lighting System / Removal and Installation :: Mood Lamp (instrument Panel Center)

Exploded View

For exploded view of instrument panel. Refer to Exploded View.

Removal & Installation

REMOVAL

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.

Remove switch panel. Refer to Removal and Installation.

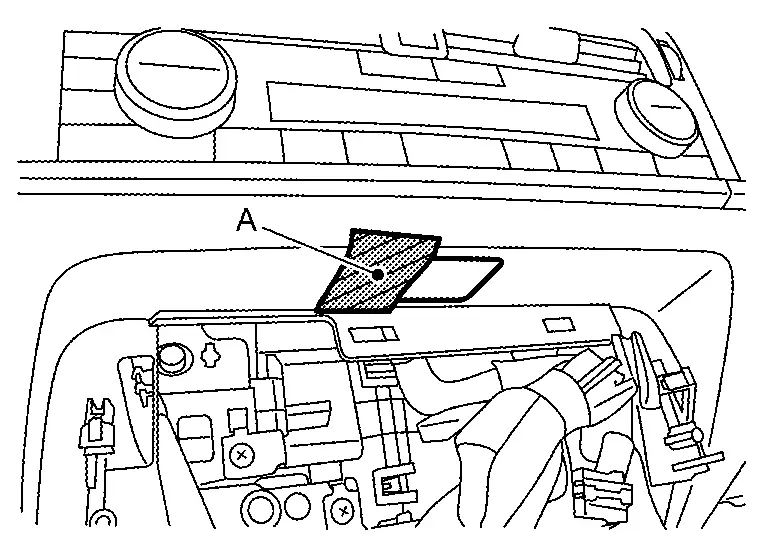

Apply protective tape (A) on instrument lower panel center to protect it from damage.

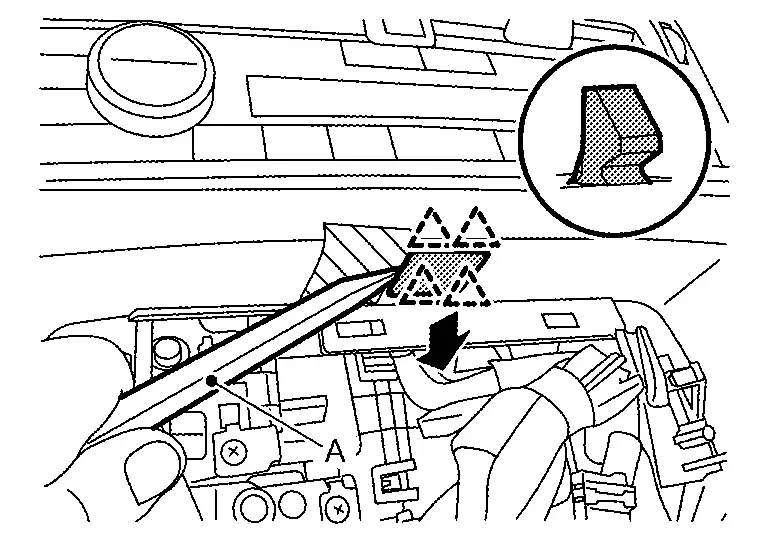

Disengage mood lamp (instrument panel center) fixing pawls using a remover tool (A).

: Pawl

Disconnect harness connector, and then remove mood lamp (instrument panel center).

INSTALLATION

Install in the reverse order of removal.

Replacement

MOOD LAMP (INSTRUMENT PANEL CENTER)

CAUTION:

  • Disconnect battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.

  • Replace mood lamp (instrument panel center) as a set. Refer to Removal & Installation.
