Removal and Installation

REMOVAL

CAUTION:

When replacing the Intelligent Key unit, always replace it with a new one. The functions controlled by the Intelligent Key unit does not operate properly in case of reuse of the Intelligent Key unit from another Nissan Ariya vehicle.

Remove the instrument pad B. Refer to Removal and Installation.

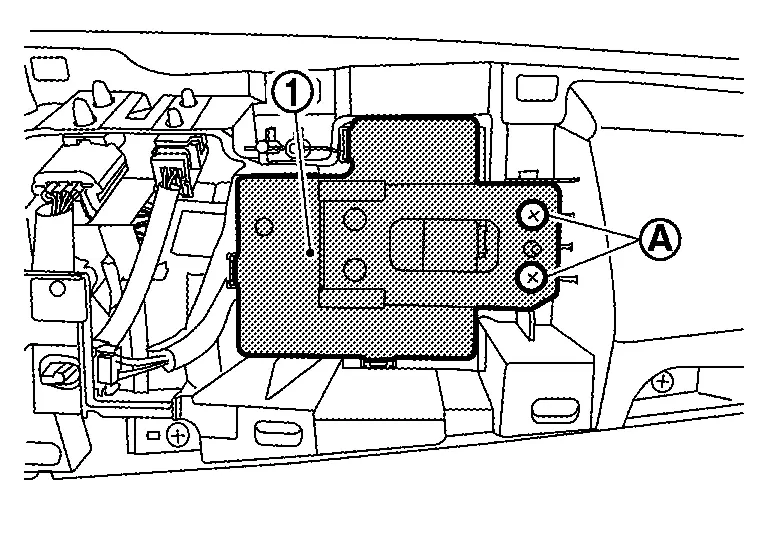

Remove the Intelligent Key unit fixing screws and then remove Intelligent Key unit .

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Be sure to perform ADDITIONAL SERVICE WHEN REPLACING INTELLIGENT KEY UNIT when replacing Intelligent Key unit. Or not doing so, Intelligent Key unit control function does not operate normally. Refer to Description.
