Removal and Installation

CAUTION:

Never bend the pawl of power window switch finisher.

REMOVAL

  1. Remove power window switch finisher RH. Refer to Removal and Installation.

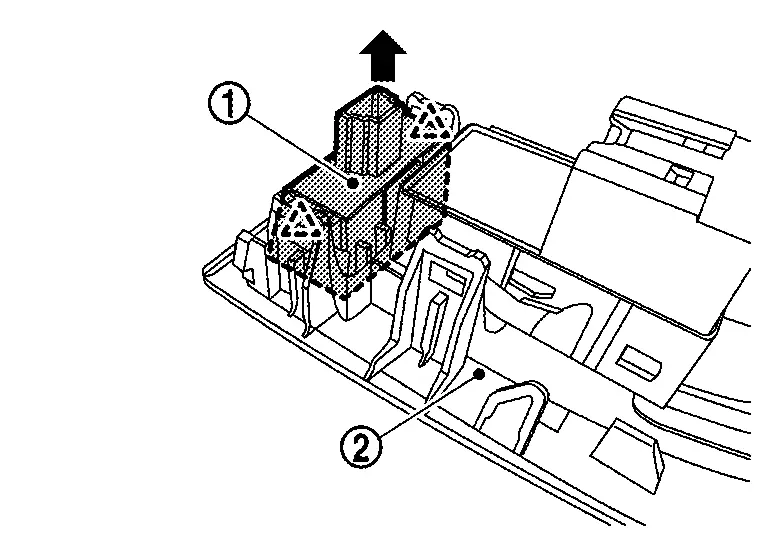

  2. Release pawl using a suitable tool and remove the door lock/unlock switch RH from the power window switch finisher RH .

    : Pawl

INSTALLATION

Installation is in the reverse order of removal.
