Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Door Lock/unlock Switch Lh
Removal and Installation
CAUTION:
Never bend the pawl of power window switch finisher.
REMOVAL
-
Remove power window switch finisher LH. Refer to Removal and Installation.
-
Remove switch bracket fixing screws
and the switch bracket
from power window switch finisher LH
.
-

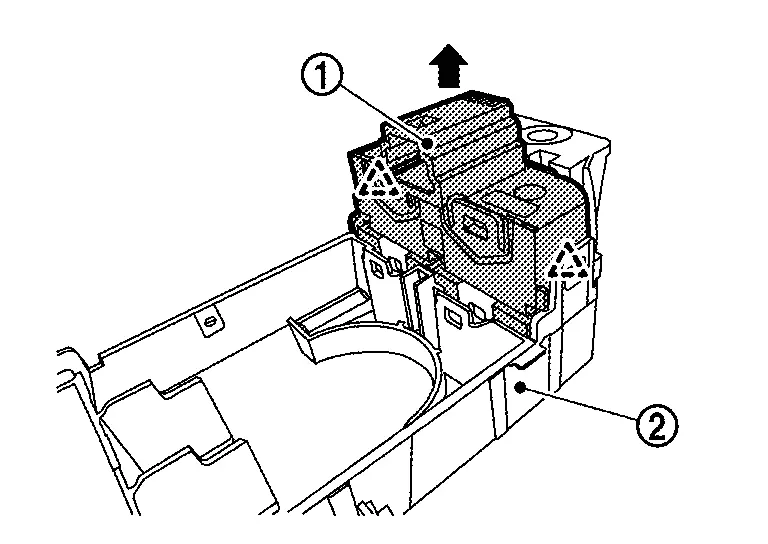

Release pawl using a suitable tool and remove the door lock/unlock switch LH
from the switch bracket .
: Pawl
INSTALLATION
Installation is in the reverse order of removal.
