Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Intelligent Key Warning Buzzer
Removal and Installation
REMOVAL
FOR USA AND JAPAN EARLY PRODUCTION AND USA LATE PRODUCTION
Remove front bumper fascia. Refer to Removal and Installation.
Disconnect Intelligent Key warning buzzer harness connector.

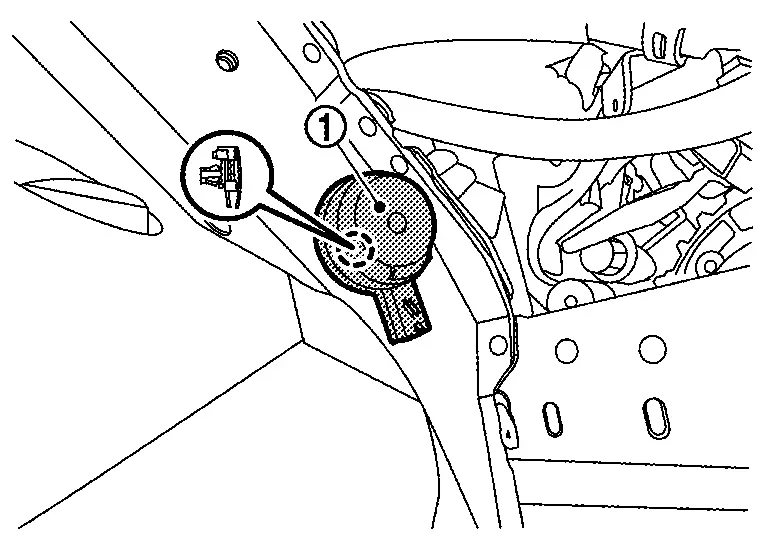

Disengage clip of frame, and then remove Intelligent Key warning buzzer (1).
 |
: Clip |
INSTALLATION
Installation is in the reverse order of removal.
REMOVAL
JAPAN LATE PRODUCTION
Remove rear bumper fascia. Refer to Removal and Installation.

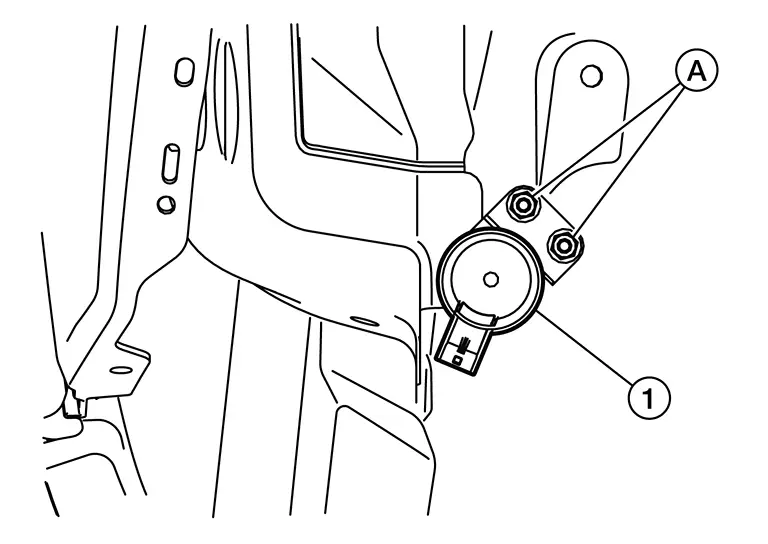

Remove the Intelligent Key warning buzzer nuts (A), and then remove Intelligent Key warning buzzer (1).
INSTALLATION
Installation is in the reverse order of removal.
