Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Inside Key Antenna

Nissan Rogue (T33) 2021-Present Service Manual / Body Exterior, Doors, Roof & Vehicle Security :: Door & Lock / Removal and Installation :: Inside Key Antenna

Japan Production Models

Removal and Installation

REMOVAL

Remove luggage rear plate. Refer to Removal and Installation.

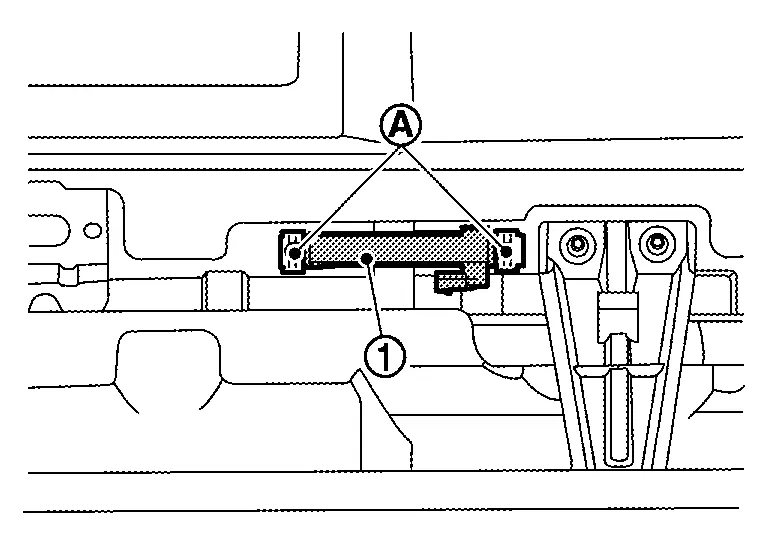

Remove inside key antenna fixing clips , and then remove inside key antenna .

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

Never reuse fixing clip. Always replace it with a new one when it is removed.

Usa Production Models

Removal and Installation

REMOVAL

Remove rear seat cushion. Refer to Removal and Installation.

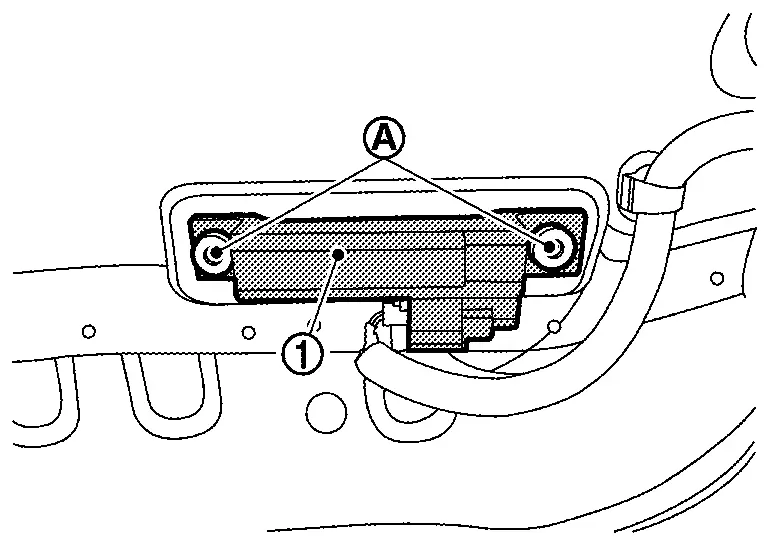

Remove inside key antenna fixing clips , and then remove inside key antenna .

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

Never reuse fixing clip. Always replace it with a new one when it is removed.
