Removal and Installation

REMOVAL

Remove driver seat. Refer to Removal and Installation.

Disconnect driver seat control unit connector.

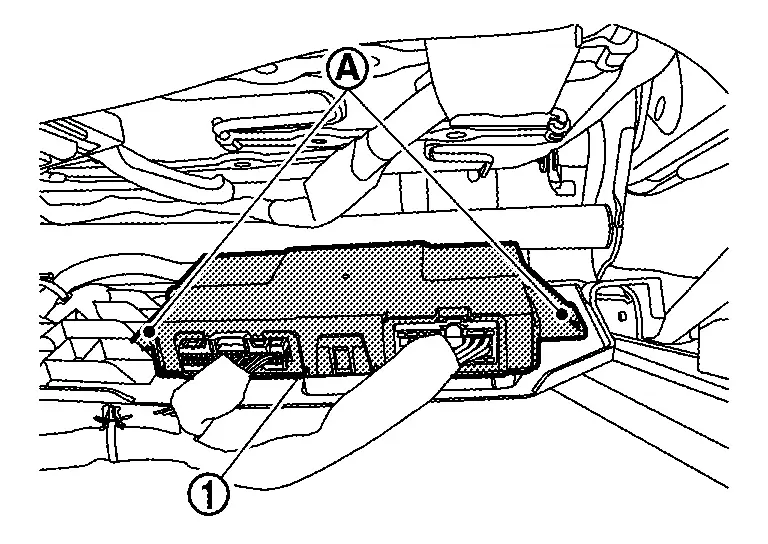

Remove fixing screws , and then remove driver seat control unit .

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to perform ADDITIONAL SERVICE WHEN REPLACING DRIVER SEAT CONTROL UNIT when replacing driver seat control unit. Or not doing so, driver seat control unit control function does not operate normally. Refer to Description.
