Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Seat Memory Switch

Nissan Rogue (T33) 2021-Present Service Manual / Body Interior :: Automatic Drive Positioner / Removal and Installation :: Seat Memory Switch

Removal and Installation

REMOVAL

Remove front door finisher LH. Refer to Removal and Installation.

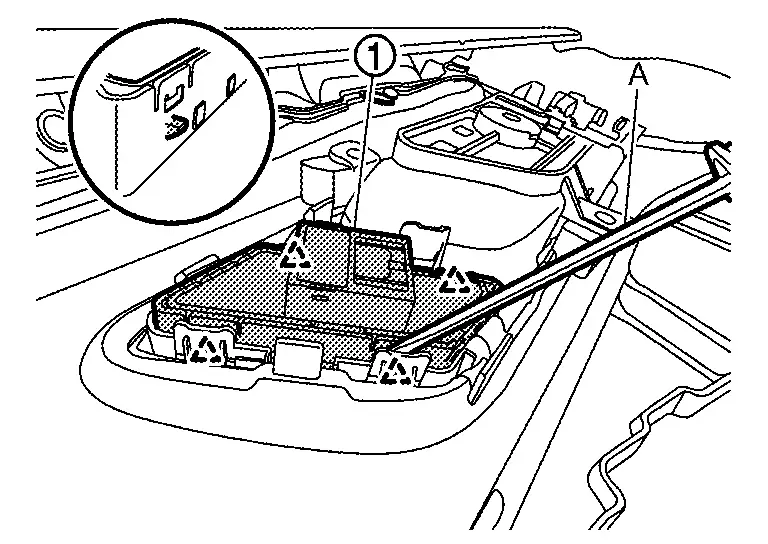

Disengage the fixing pawls using a remover tool (A) and then remove seat memory switch .

: Pawl

INSTALLATION

Install in the reverse order of removal.
