Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Automatic Back Door Switch

Nissan Rogue (T33) 2021-Present Service Manual / Body Exterior, Doors, Roof & Vehicle Security :: Door & Lock / Removal and Installation :: Automatic Back Door Switch

Removal and Installation

REMOVAL

Remove the instrument lower panel LH. Refer to Removal and Installation.

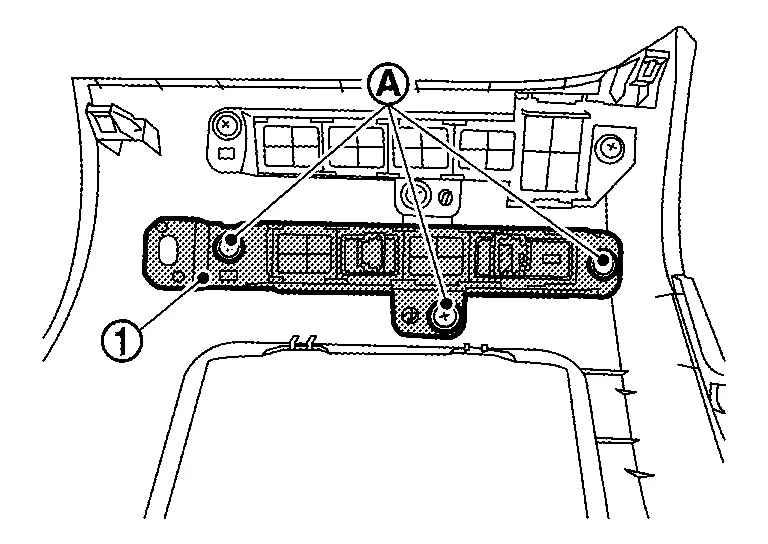

Remove screws and then remove the switch bracket from the instrument lower panel LH.

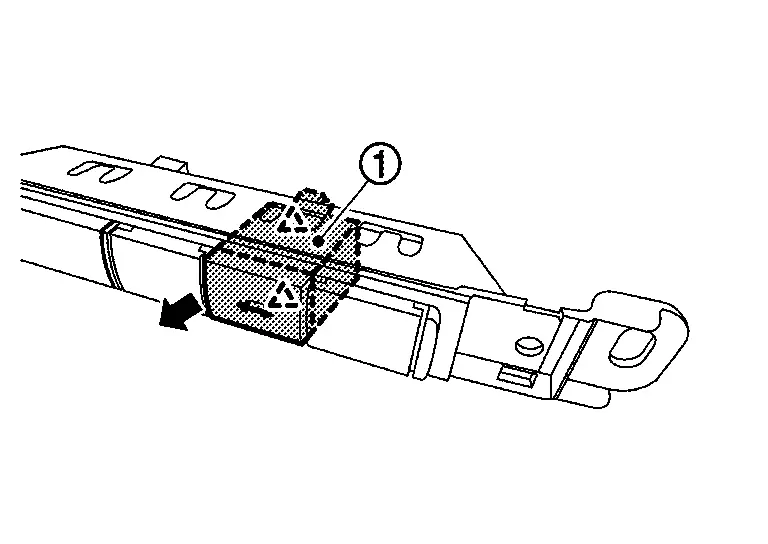

Remove automatic back door switch from the switch bracket.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.
