Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Automatic Back Door Control Unit

Nissan Rogue (T33) 2021-Present Service Manual / Body Exterior, Doors, Roof & Vehicle Security :: Door & Lock / Removal and Installation :: Automatic Back Door Control Unit

Removal and Installation

REMOVAL

Remove luggage side lower finisher LH. Refer to Removal and Installation.

Disconnect automatic back door control unit harness connector.

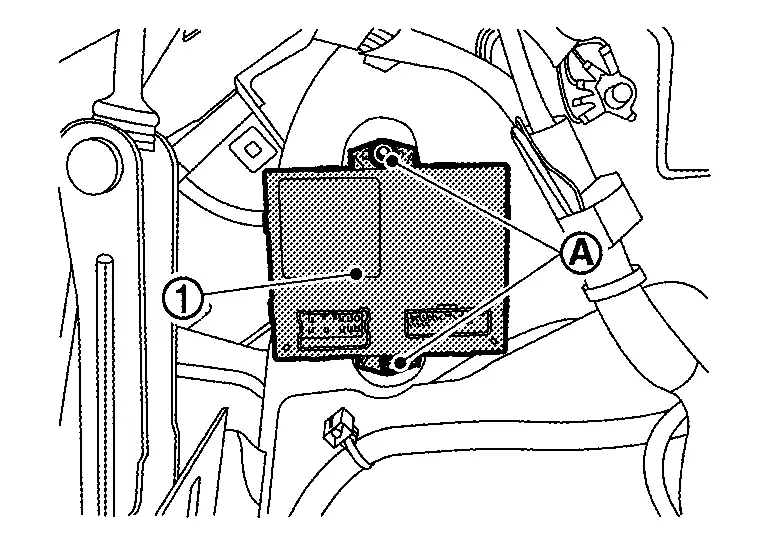

Remove the automatic back door control unit mounting nuts (A), and then remove the automatic back door control unit (1).

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

After installing automatic back door control unit, perform additional service when replace control unit. Refer to Work Procedure.
