Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Automatic Back Door Lock and Close Switch Assembly

Nissan Rogue (T33) 2021-Present Service Manual / Body Exterior, Doors, Roof & Vehicle Security :: Door & Lock / Removal and Installation :: Automatic Back Door Lock and Close Switch Assembly

Removal and Installation

REMOVAL

Remove automatic back door lock and close switch assembly and automatic back door close switch finisher. Refer to Removal and Installation.

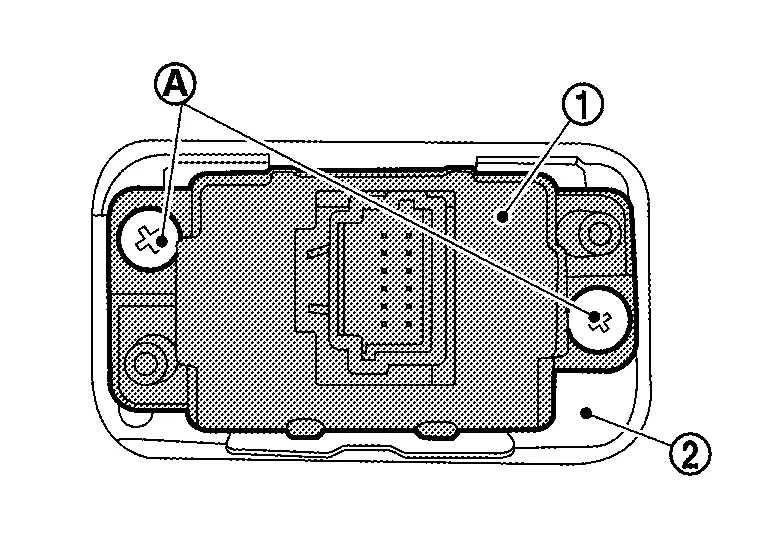

Remove automatic back door lock and close switch assembly fixing screws and then remove automatic back door lock and close switch assembly from automatic back door close switch finisher .

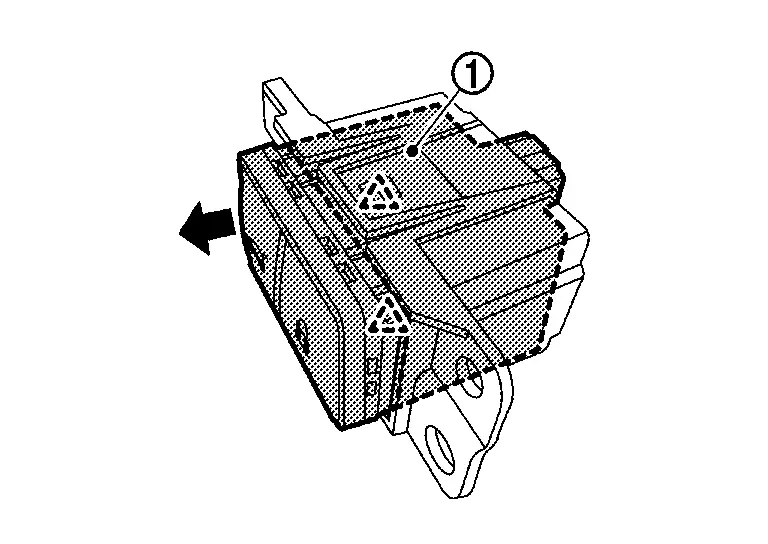

Remove automatic back door lock and close switch assembly from switch bracket.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.
