Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: 12v Battery Current Sensor

Nissan Rogue (T33) 2021-Present Service Manual / Electrical & Power Control :: Power Supply, Ground & Circuit Elements / Removal and Installation :: 12v Battery Current Sensor

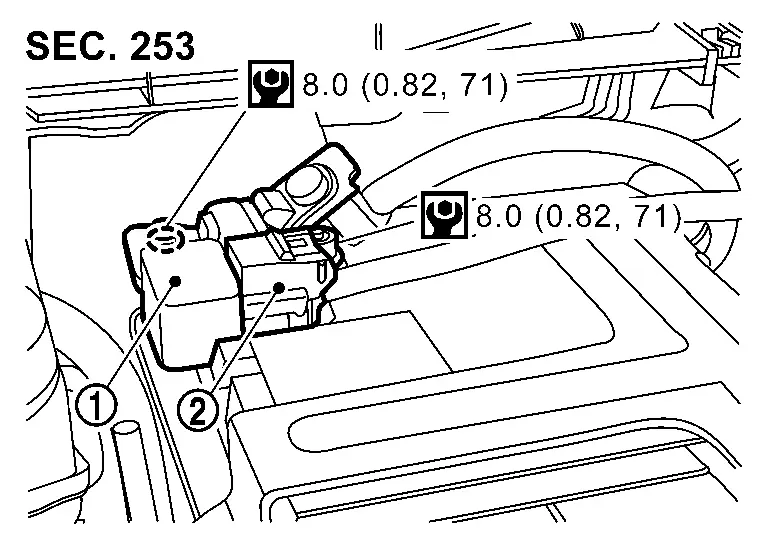

Exploded View

: 12V battery current sensor
: Harness connector
: N·m (kg-m, in-lb)

Removal and Installation

REMOVAL

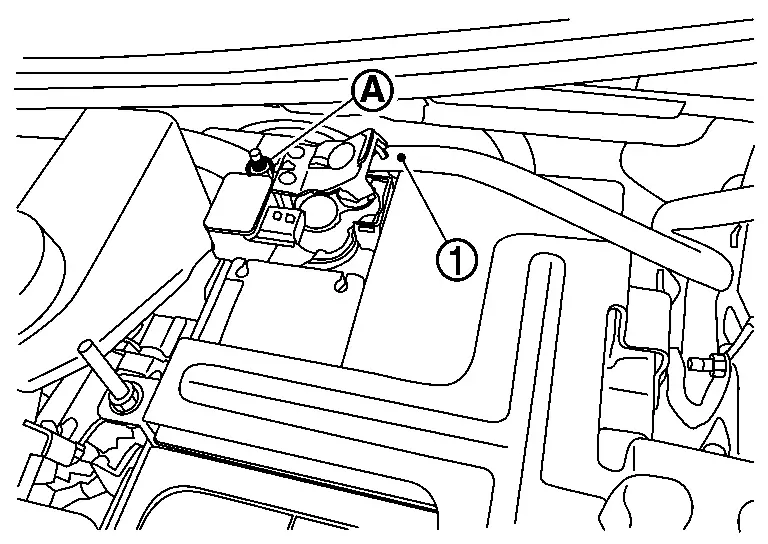

Disconnect the 12V battery current sensor connector .

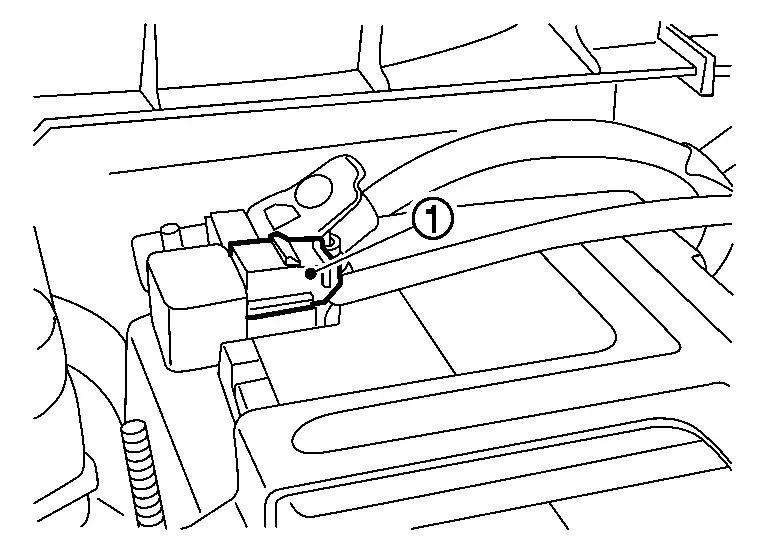

Remove negative cable mounting nut , and then remove the negative cable .

Loosen 12V battery current sensor mounting nut , and then remove the 12V battery current sensor .

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Perform Required Procedure After Battery Disconnection.

    Removal and Installation. Battery Terminal with Fusible Link
    Exploded View Battery terminal with fusible link : N·m (kg-m, in-lb) : N·m (kg-m, ft-lb) Removal and Installation REMOVALDisconnect the battery cable from the negative termina...
    Removal and Installation. Terminal Plate
    Exploded View 1. Terminal plate cover 2. Terminal plate 3. Terminal plate bracket A. Harness (rear) B. Harness (center) C. Harness (front) : Pawl         Rem...
