Exploded View

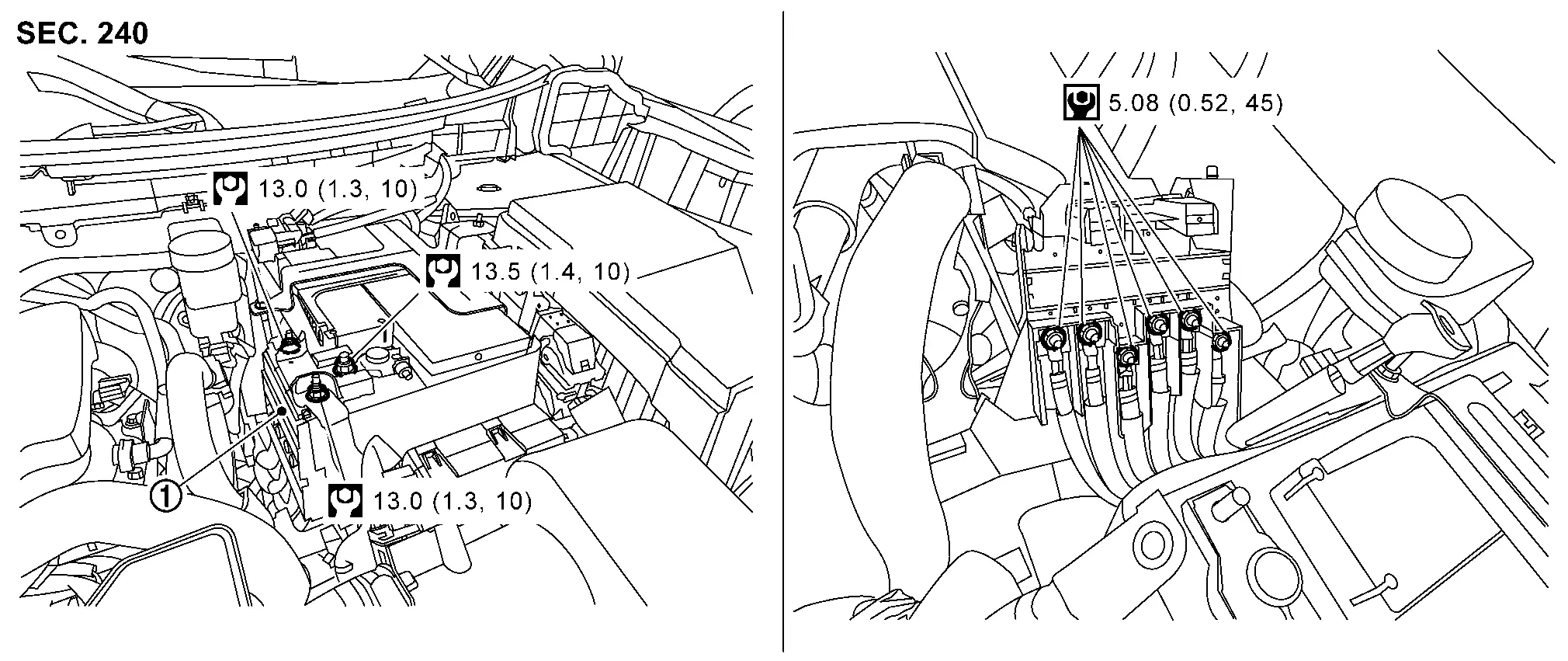

Battery terminal with fusible link
: N·m (kg-m, in-lb)
: N·m (kg-m, ft-lb)

Removal and Installation

REMOVAL

Disconnect the battery cable from the negative terminal. Refer to Exploded View.

CAUTION:

To prevent damage to the parts, disconnect the battery cable from the negative terminal first.

Remove the battery positive terminal cover.

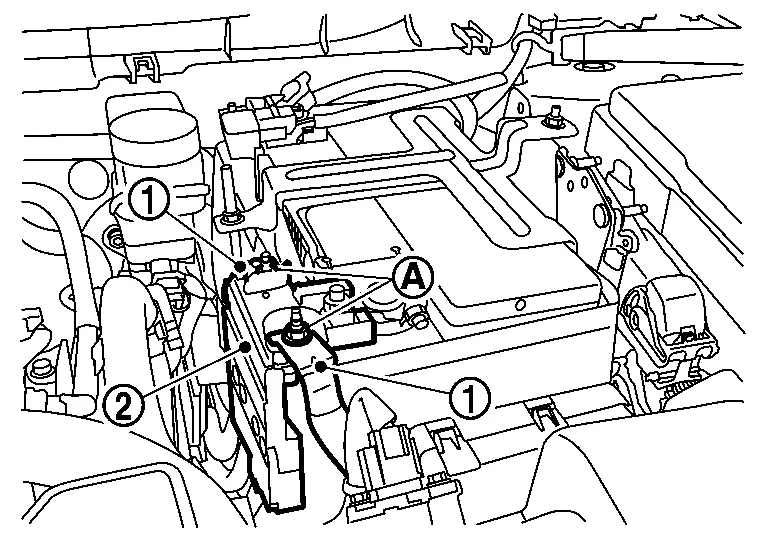

Remove positive cable mounting nuts , and then disconnect the positive cable from the battery terminal with fusible link .

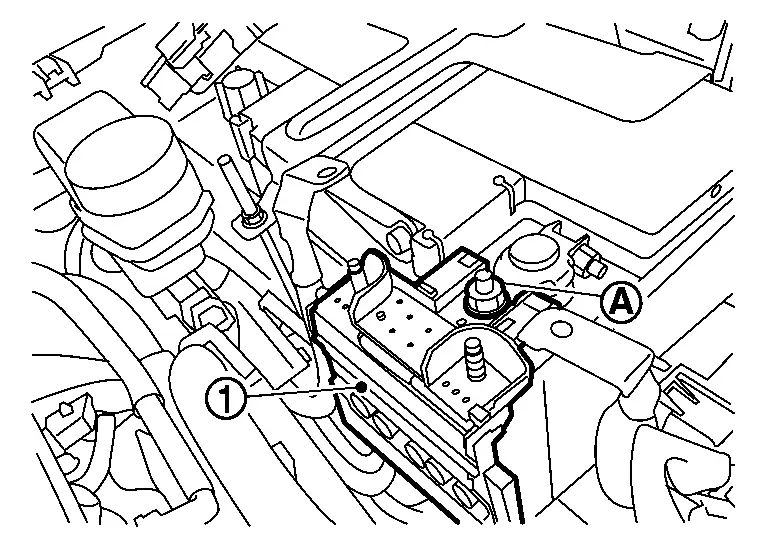

Remove battery terminal with fusible link mounting nut , and then remove the battery terminal with fusible link .

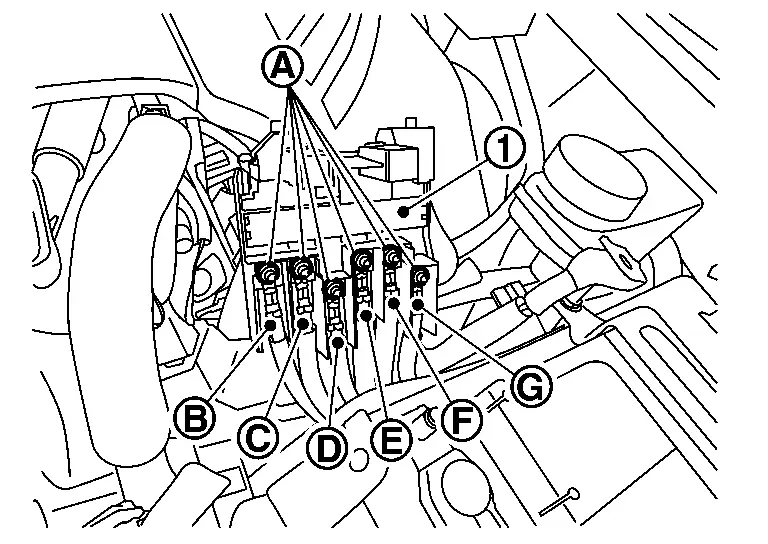

Remove cable mounting nuts , and then disconnect the cable from the battery terminal with fusible link.

Blue Green Red
Yellow White Brown

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

To prevent damage to the parts, connect the 12V battery cable to the positive terminal first.

Perform Required Procedure After Battery Disconnection.

    Removal and Installation. Battery Tray
    Exploded View 1. Battery positive terminal cover 2. Positive cable 3. Battery terminal with fusible link 4. Battery positive terminal 5. Battery protector 6. Battery mounting br...
    Removal and Installation. 12v Battery Current Sensor
    Exploded View : 12V battery current sensor : Harness connector : N·m (kg-m, in-lb) Removal and Installation REMOVALDisconnect the 12V battery current sensor connector . Remove ...
