Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Rear seats

Nissan Rogue. Seats

Reclining (if so equipped)

1. Pull up the lever A.

2. Tilt the seatback backward. The rear seat reclines slightly for added comfort.

3. Release the lever to lock the seatback securely.

Folding

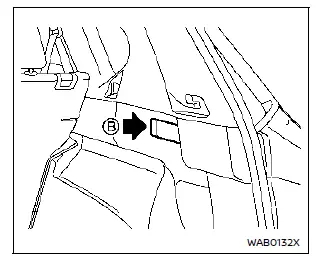

Before folding the rear seats

Nissan Rogue. Seats

To fold down the seatback

Nissan Rogue. Seats

To return the seatback

Raise the seatback until it fully latches into place.

Ensure the seat belts are clear of the latch mechanism before locking the seatback upright.

WARNING

WARNING

Armrest

Nissan Rogue. Seats
Rear seats

Pull the armrest down as shown to use it.

Basic information
WARNING Do not ride in a moving vehicle when the seatback is reclined. The shoulder belt will not rest properly against your body, increasing the risk of neck or other serious injuries in an ...
