Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Rain-sensing auto wiper system
The rain-sensing auto wiper system automatically activates and adjusts wiper speed based on rainfall and vehicle speed. The rain sensor is located near the top of the windshield in the Nissan Rogue.

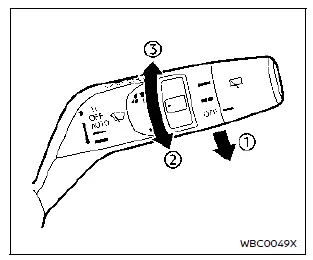

To enable the system, push the lever down to AUTO position 1. The wiper will sweep once with the ignition ON.
The sensitivity level can be adjusted by turning the knob toward 2 (Low) or (High):
- High — higher sensitivity
- Low — lower sensitivity
To turn the rain-sensing system off, push the lever up to OFF, or move it down to another position.
NOTE:
The rain sensor may be disabled.
CAUTION
Do not touch the rain sensor when the switch is in AUTO and the ignition is ON, as the wipers may activate unexpectedly.
- The rain-sensing system is intended for rainfall use. If left in AUTO, wipers may activate when dirt, fingerprints, insects, exhaust gas, or moisture affect the sensor.
- If the windshield has a water-repellent coating, the wiper speed may increase even with light rain.
- Turn off the rain-sensing system before using a car wash.
- The system may not activate if rainwater does not reach the sensor area.
- Using genuine wiper blades is recommended to maintain proper operation of the Nissan Rogue rain-sensing system.
