Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Basic information
WARNING
In freezing temperatures, the washer solution may freeze on the windshield and limit visibility, increasing the risk of an accident. Warm the windshield with the defroster before using the washer.
CAUTION
- Do not operate the washer continuously for more than 30 seconds.
- Do not operate the washer if the reservoir tank is empty.
- Do not fill the washer reservoir with full-strength washer fluid concentrate.
Some methyl alcohol–based concentrates may permanently stain the grille if spilled when filling the reservoir.
- Pre-mix washer fluid concentrate with water according to the manufacturer’s recommendation before adding it to the reservoir. Do not use the reservoir tank to mix the concentrate with water.
If the windshield wiper movement is interrupted by snow or ice, the motor may temporarily stop to protect itself. Turn the switch OFF and clear the snow or ice from the wiper arms. After about one minute, turn the switch on again.
Windshield wiper and washer operation

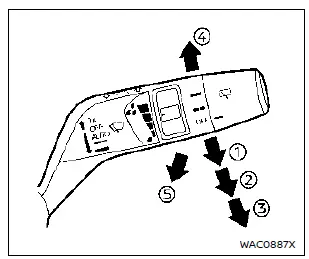

Type A (if so equipped)

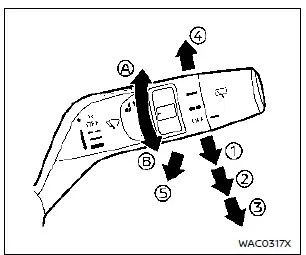

Type B (if so equipped)
The windshield wiper and washer operate when the ignition switch is in the ON position. This allows consistent visibility during Nissan Rogue driving in rain or snow.
Push the lever down to operate the wiper at the following speed:
- Type A: AUTO — see “Rain-sensing auto wiper system (if so equipped).”
Type B: Intermittent — the intermittent speed can be adjusted by turning the knob toward A (Faster) or B (Slower). The intermittent speed also changes automatically with vehicle speed. - Low — continuous low-speed operation
- High — continuous high-speed operation
Push the lever up 4 to perform one sweep.
Pull the lever toward you to activate the washer. The wipers will sweep several times automatically.
NOTE:
The Speed-Dependent feature (if equipped) may be disabled.
CAUTION
Do not operate the windshield wiper while the wiper arm is lifted. This may damage the arm.
Rain-sensing auto wiper system
The rain-sensing auto wiper system automatically activates and adjusts wiper speed based on rainfall and vehicle speed. The rain sensor is located near the top of the windshield in the Nissan Rogue ...
