Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Rear window wiper and washer operation
WARNING
In freezing temperatures, the washer solution may freeze on the rear window and reduce visibility. Warm the glass with the defroster before using the washer.
CAUTION
- Do not operate the washer continuously for more than 30 seconds.
- Do not use the washer when the reservoir tank is empty.
- Do not fill the reservoir with full-strength washer concentrate.
Some methyl alcohol–based concentrates may stain the grille permanently if spilled during filling.
- Always pre-mix washer concentrate with water to the manufacturer’s recommended ratio before adding it to the tank.
If the rear wiper stops due to snow or ice, the system may temporarily shut off to protect the motor. Turn the switch OFF, clear ice around the wiper arm, and try again after about one minute.
Example
The rear window wiper and washer operate when the ignition is in the ON position, ensuring the Nissan Rogue maintains clear visibility in wet conditions.

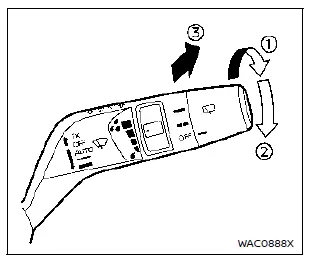

Turn the switch clockwise from OFF to activate the wiper:
- Intermittent (INT) – non-adjustable intermittent wiping
- Low (ON) – continuous low-speed wiping
Push the switch forward to activate the washer. The wiper will cycle several times automatically.
Reverse Link feature:
When the front wipers are on, shifting to R (Reverse) automatically activates the rear wiper for improved visibility.
NOTE:
The Reverse Link feature may be disabled.
Rain-sensing auto wiper system
The rain-sensing auto wiper system automatically activates and adjusts wiper speed based on rainfall and vehicle speed. The rain sensor is located near the top of the windshield in the Nissan Rogue ...
Rear window and outside mirror defroster switch
Example
To defog or defrost the rear window and outside mirrors (if equipped), start the engine and press the switch. The indicator light A illuminates. Press again to turn the system off.
The syst ...
