Nissan Rogue (T33) 2021-Present Service Manual: Preparation

Nissan Rogue (T33) 2021-Present Service Manual / Restraints :: Srs Air Bag Control System / Preparation

Special Service Tools

Tool number

Tool name 		Description

—

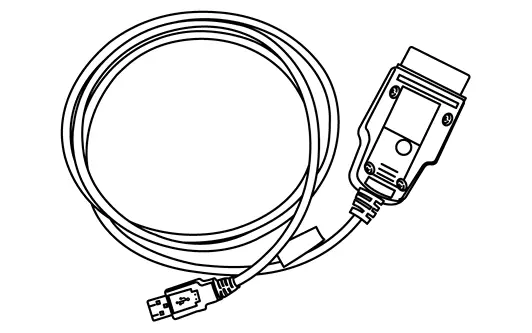

(NI-51594)

USB Cable, VAG

Zero point reset
