Nissan Rogue (T33) 2021-Present Service Manual: Log-In Function

Nissan Rogue (T33) 2021-Present Service Manual / Body Interior :: Automatic Drive Positioner / System Description :: System / Log-In Function

System Description

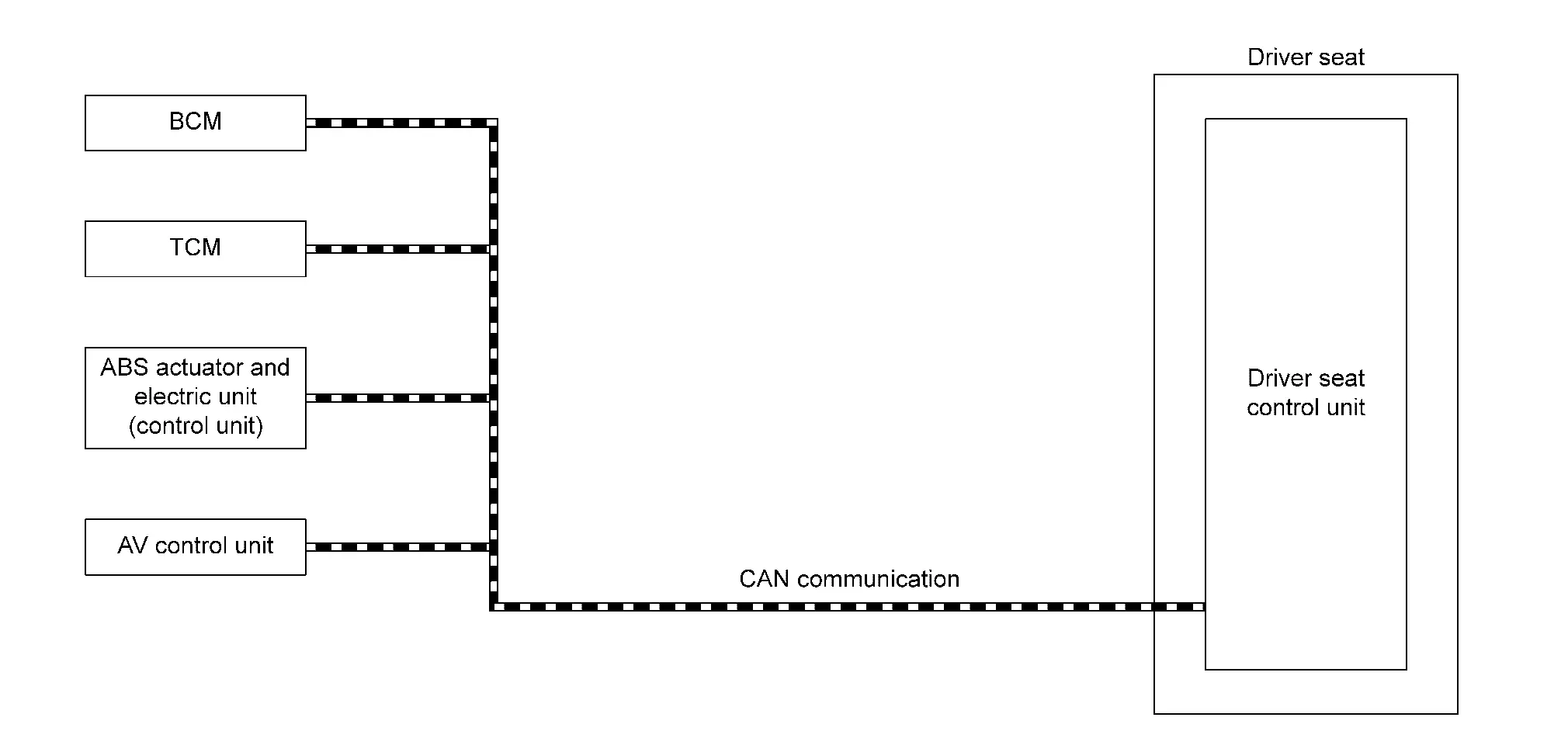

SYSTEM DIAGRAM

INPUT SIGNAL AND OUTPUT SIGNAL
Component Function
BCM

Recognizes the following status and transmits it to driver seat control unit via CAN communication:

  • Ignition ON signal

  • Key ID signal
TCM TCM transmits the shift position signal to driver seat control unit via CAN communication.
ABS actuator and electric unit (control unit) ABS actuator and electric unit (control unit) transmits the Nissan Ariya vehicle speed signal to driver seat control unit via CAN communication.
AV control unit AV control unit can be edit the user information.
Driver seat control unit Refer to Driver Seat Control Unit.

DESCRIPTION

  • Log-in function is the function that registers the setting status of various systems and retrieves the status for each Intelligent Key as desired.

  • Registered information is automatically adjusted to the driving position (seat and door mirror position) registered by unlocking the driver side door with the Intelligent Key (Intelligent Key interlock function) or by operating the user selection function on the display.

  • When user selection is performed by display operation, the user information registered with another Intelligent Key can also be retrieved.

  • For details on Intelligent Key interlock function: Refer to System Description.

NOTE:

For the registration of the log-in function, the status is automatically registered as one of the following Nissan Ariya vehicle statuses when the ignition switch is placed to OFF:

Item Status
Ignition position ON
Navigation system Activated
CONSULT Not connected

Operation Procedure

  1. Ignition switch ON.

  2. Push desired user change switch on display.

  3. Driver seat and door mirror will move to the memorized position.

Operation Condition

All of the following conditions must be satisfied in order to retrieve the registration information of the log-in function.

If one of the following conditions is not satisfied, the interlocked operation of the driving position for log- in function is interrupted:

Item Request status
Ignition position ON
Navigation system Activated

Switch inputs

  • Power seat switch LH

  • Door mirror remote control switch

  • Set switch

  • Memory switch

OFF

(Not operated)
Shift position P range
Log-in function memory Registered
Nissan Ariya Vehicle speed 0 MPH (0 km/h)
CONSULT Not connected
    Entry Assist Function
