Headlamp Aiming Adjustment
Adjustment
DESCRIPTION
PREPARATION BEFORE ADJUSTING
NOTE:
-
For details, refer to the regulations in your own country.
-
Perform aiming if the Nissan Ariya vehicle front body has been repaired and/or the headlamp assembly has been replaced.
Before performing aiming adjustment, check the following.
-
Adjust the tire pressure to the specification.
-
Fill with fuel, coolant and each oil.
-
Maintain the unloaded Nissan Ariya vehicle condition. (Remove luggage from the passenger compartment and the luggage room.)
NOTE:
Never remove temporary tire, jack and on-Nissan Ariya vehicle tool.
-
Wipe out dirt on the headlamp.
CAUTION:
Never use organic solvent (thinner, gasoline etc.).
-
Ride alone on the driver seat.
BULB CENTER WHEN ADJUSTING THE AIMING

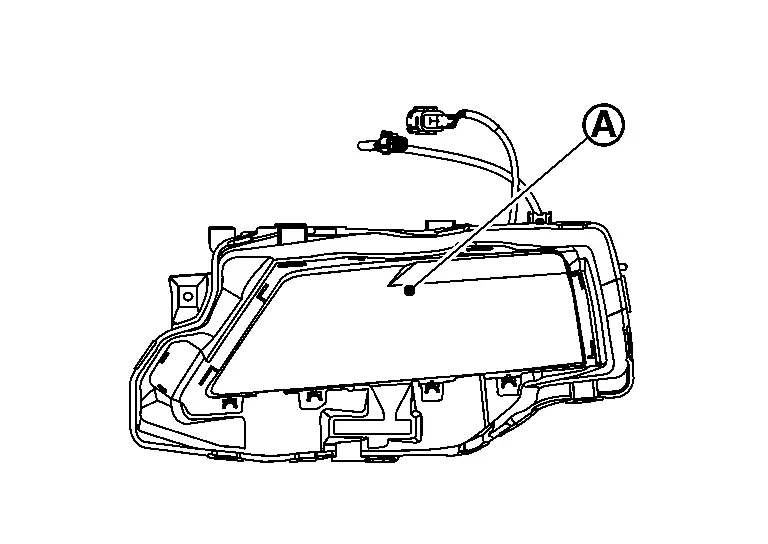

When performing aiming adjustment, set headlamp (Lo) center at headlamp center mark
.

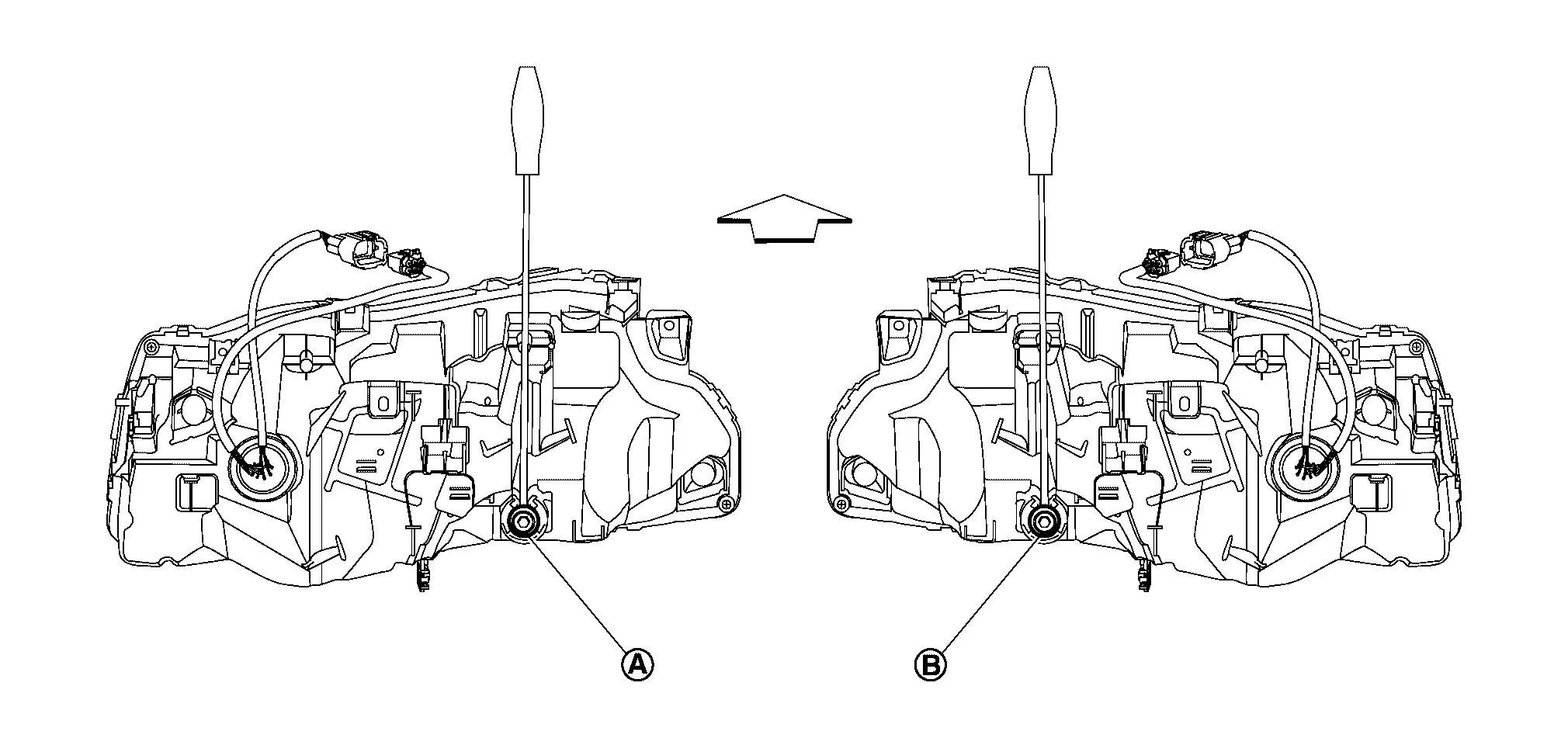

AIMING ADJUSTMENT SCREW

![]() |
Headlamp LH (UP/DOWN) adjustment screw |
![]() |
Headlamp RH (UP/DOWN) adjustment screw |
||
![]() |
: Nissan Ariya Vehicle front | ||||
| Adjustment screw | Screwdriver rotation | Facing direction | |
|---|---|---|---|
![]() |
Headlamp LH (UP/DOWN) | Clockwise | UP |
| Counterclockwise | DOWN | ||
![]() |
Headlamp RH (UP/DOWN) | Clockwise | UP |
| Counterclockwise | DOWN | ||
AIMING ADJUSTMENT PROCEDURE

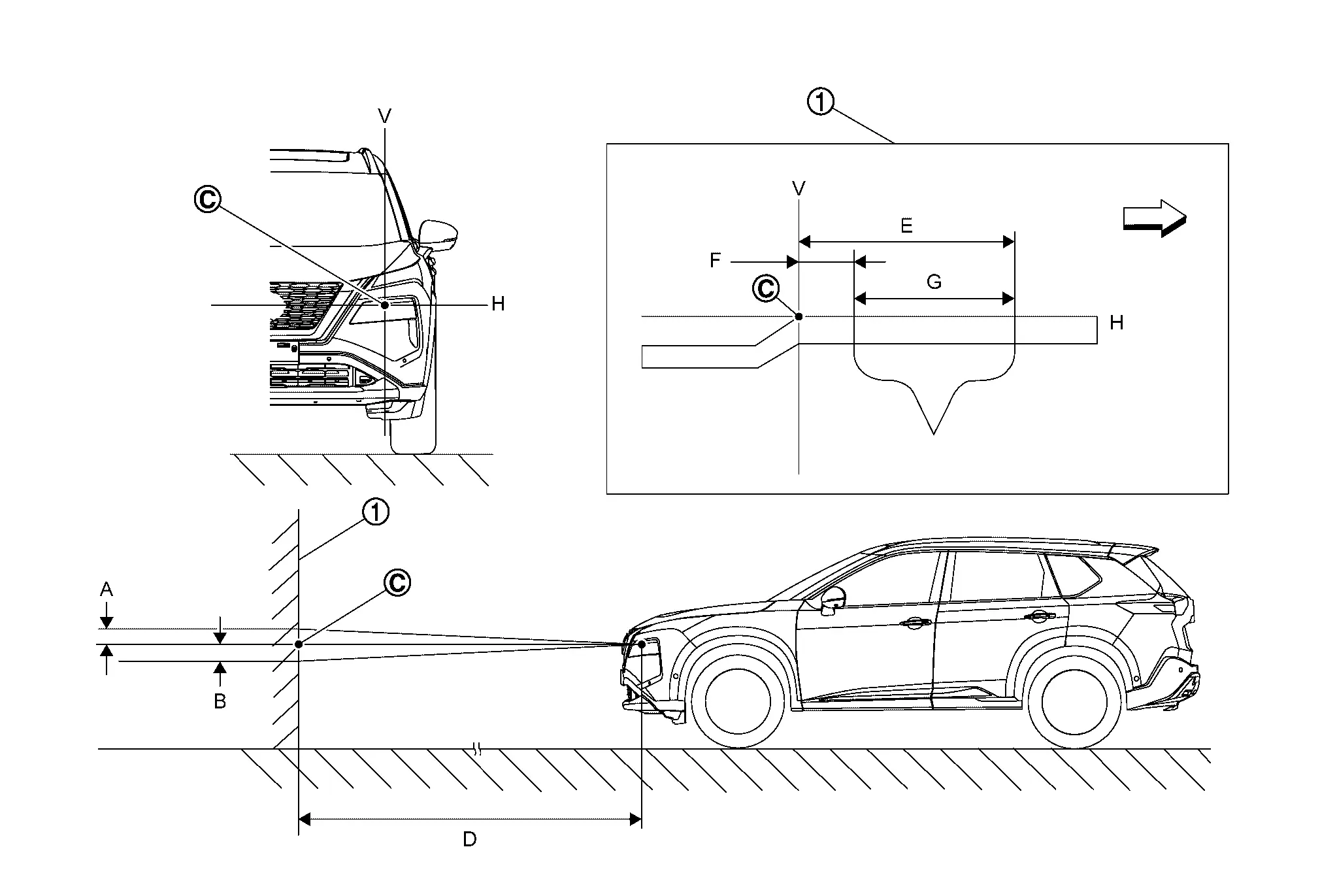

Aiming Chart
![]() |
Adjustment screen | ||||
![]() |
Headlamp bulb center (H-V point) | ||||
| A. | Highest cutoff line height | B. | Lowest cutoff line height | D. | Distance of headlamp aiming screen from Nissan Ariya vehicle 7.62 m (25 ft) or 10 m (32.8 ft) |
| E. | Maximum aim evaluation distance from vertical center on aiming screen 399 mm (3°R) | F. | Minimum aim evaluation distance from vertical center on aiming screen 133 mm (1°R) | G. | Aim evaluation area |
| H. | Horizontal aiming evaluation line | V. | Vertical aiming evaluation line | ||
![]() |
: Nissan Ariya Vehicle right | ||||
| D | A | B | ||
|---|---|---|---|---|
| mm | deg | mm | deg | |
| 7.62 m (25 ft) | 0 | 0° | 67 | 0.5° down |
| 10 m (32.8 ft) | 15 | 0.1° up | 73 | 0.4° down |
NOTE:
-
Basic illuminating area for evaluation and/or adjustment should be within range shown on aiming chart.
-
Headlamp (Lo) is composed of four reflectors to create the light distribution.

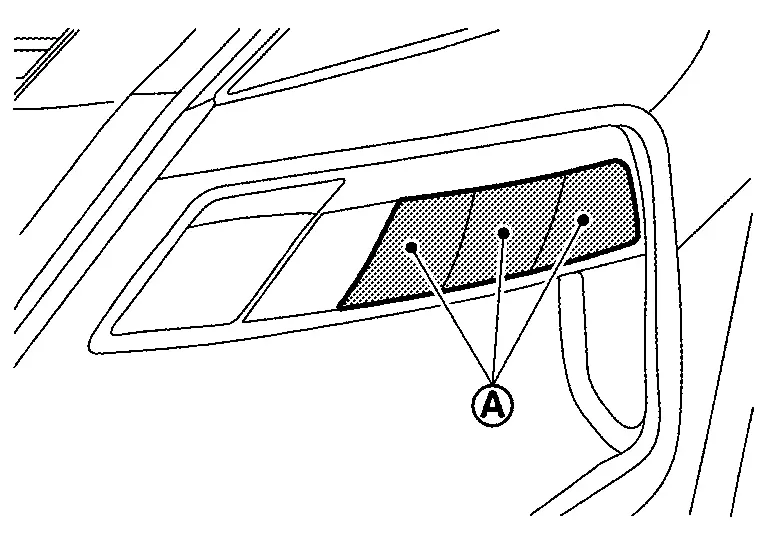

When performing adjustment, if necessary, cover three outer reflectors
of the headlamp (Lo).
Use adjustment screw to perform aiming adjustment.
-
The vehicle should have its standard load, which may include any outfitting or other equipment. Any load that is normally carried in the Nissan Ariya vehicle should be in the vehicle while verifying or performing headlamp adjustment. Any other load should be removed.
Block the opposite headlamp from projecting a beam pattern onto the adjustment screen, using a suitable object. Aim each headlamp individually.
CAUTION:
Do not cover the lens surface with a tape etc. The lens is made of resin.
Place the screen on the same level and flat surface as the Nissan Ariya vehicle.
NOTE:
Surface should be free of any debris that would cause a difference between the headlamp center and the adjustment screen.
Face the front of the Nissan Ariya vehicle to the screen and measure distance between the headlamp center and the screen surface.
| Distance between the headlamp center and the screen (D) | : 7.62 m (25 ft) or 10 m (32.8 ft) |
Start the engine. Turn the headlamp on.
Determine the preferred vertical aim range dimensions, using the aiming chart.
Measure the projected beam within the aim evaluation segment on the screen.
Adjust the beam pattern of each headlamp until the aim evaluation segment (the area relative to both the highest and lowest cutoff line height) is positioned within the vertical aim range dimensions shown on the aiming chart.
