Nissan Rogue (T33) 2021-Present Service Manual: Intake Camshaft Position Sensor

Nissan Rogue (T33) 2021-Present Service Manual / Engine :: Engine Control System / Kr15ddt :: Dtc/circuit Diagnosis / Intake Camshaft Position Sensor

Component Inspection

CHECK INTAKE CAMSHAFT POSITION SENSOR -1

  1. Turn ignition switch OFF.

  2. Loosen the fixing bolt of the sensor.

  3. Disconnect intake camshaft position sensor harness connector.

  4. Remove the sensor.

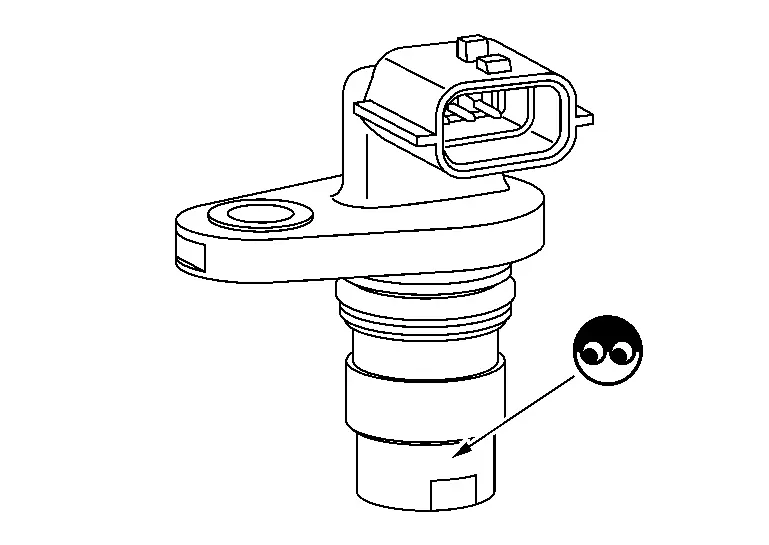

  5. Visually check the sensor for chipping.

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Replace intake camshaft position sensor. Refer to Exploded View.

CHECK INTAKE CAMSHAFT POSITION SENSOR -2

Check resistance intake camshaft position sensor terminals as follows.

Intake CMP sensor Condition Resistance
Terminal
1 2 Temperature 25°C (77°F) Except 0 Ω
3
2 3

Is the inspection result normal?

YES>>

INSPECTION END

NO>>

Replace intake camshaft position sensor. Refer to Exploded View.
