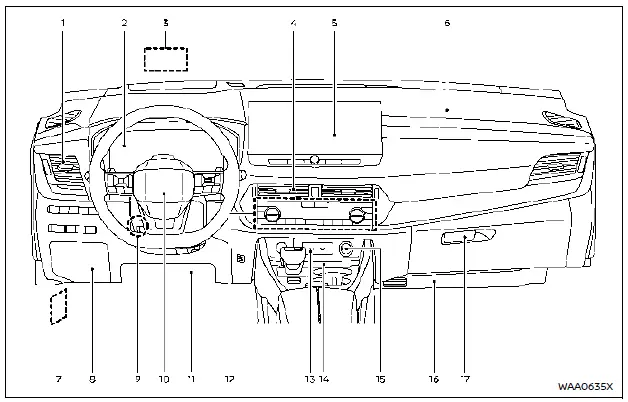

Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Instrument panel
- Side ventilator — directs airflow toward the driver or passenger for improved comfort.
- Meters and gauges/Clock — displays essential driving information such as speed, fuel level, and time.
- Head Up Display (HUD)* — projects key driving data onto the windshield for easier viewing.*
- Center ventilator — central air vents that distribute airflow through the Nissan Rogue’s cabin.
- Audio system** or navigation system**
- RearView Monitor* — provides a rear image to assist with reversing.*
- Intelligent Around View Monitor* — offers a 360° view around the Nissan Rogue for easier parking.*
- Bluetooth Hands-Free Phone System** — enables hands-free calling and audio functions.**
- Front passenger supplemental air bag — enhances front passenger protection in a frontal collision.
- Hood release handle — used to unlock and open the vehicle’s hood.
- Fuse box cover — protects interior fuses and electrical components.
- Tilt and telescopic steering lock lever — allows adjustment of steering wheel height and distance.
- Driver supplemental front-impact air bag — primary air bag providing frontal protection for the driver.
- Driver supplemental knee air bag — additional protection for the driver’s lower body.
- Heater and air conditioner control
- Defroster switch — clears condensation from the windshield.
- Deicer switch* — activates the windshield wiper deicer system.*
- Heated seat switches* — controls front seat heating.*
- Heated steering wheel switch* — warms the steering wheel for added comfort.*
- USB (Universal Serial Bus) connection ports** — ports for charging or connecting compatible devices.**
- Wireless charger* — charges supported smartphones without cables.*
- Power outlet — supplies electrical power for accessories.
- Front passenger supplemental knee air bag — provides extra lower-body protection for the passenger.
- Glove box — storage compartment located in front of the passenger seat.
*: if so equipped
**: See the separate NissanConnect Owner's Manual.
Cockpit
Steering Assist switch* (models with ProPILOT Assist) — activates steering support features available on the Nissan Rogue.*
Head Up Display (HUD) switch* — controls the HUD system that pro ...
Meters and gauges
Models with analog meter and color display
Tachometer — displays engine speed in revolutions per minute.
Warning and indicator lights — illuminate to provide important alerts and system in ...
