Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Meters and gauges

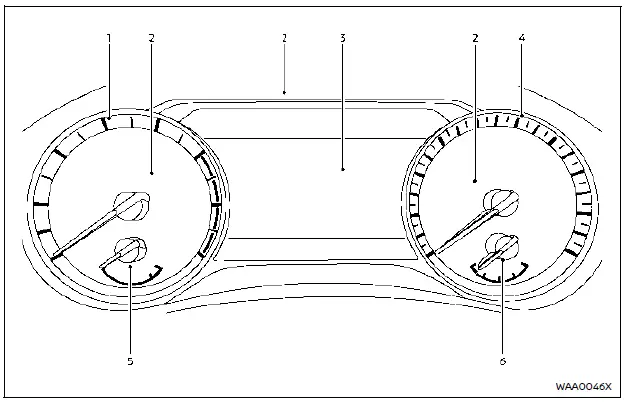

Models with analog meter and color display
- Tachometer — displays engine speed in revolutions per minute.
- Warning and indicator lights — illuminate to provide important alerts and system information.
- Vehicle information display
- Odometer — shows the total distance driven by the Nissan Rogue.
- Speedometer — indicates the vehicle’s current speed.
- Engine coolant temperature gauge — monitors the engine’s operating temperature.
- Fuel gauge — displays the amount of fuel remaining in the tank.
Models with full-screen display
- Tachometer — digital display of engine speed.
- Vehicle information display
- Odometer — digital readout of the Nissan Rogue’s total mileage.
- Warning and indicator lights — visual alerts integrated into the full-screen layout.
- Speedometer — shows vehicle speed in a digital or graphical format.
- Engine coolant temperature gauge — indicates engine temperature through a digital interface.
- Fuel gauge — displays fuel level in the electronic screen.
The view of the meter screen can be changed, allowing the Nissan Rogue driver to customize the displayed information.
