Nissan Rogue (T33) 2021-Present Service Manual: Electric Shift Control Module

Nissan Rogue (T33) 2021-Present Service Manual / Transmission & Driveline :: Transaxle & Transmission / Cvt: Ge0f14a :: Removal and Installation / Electric Shift Control Module

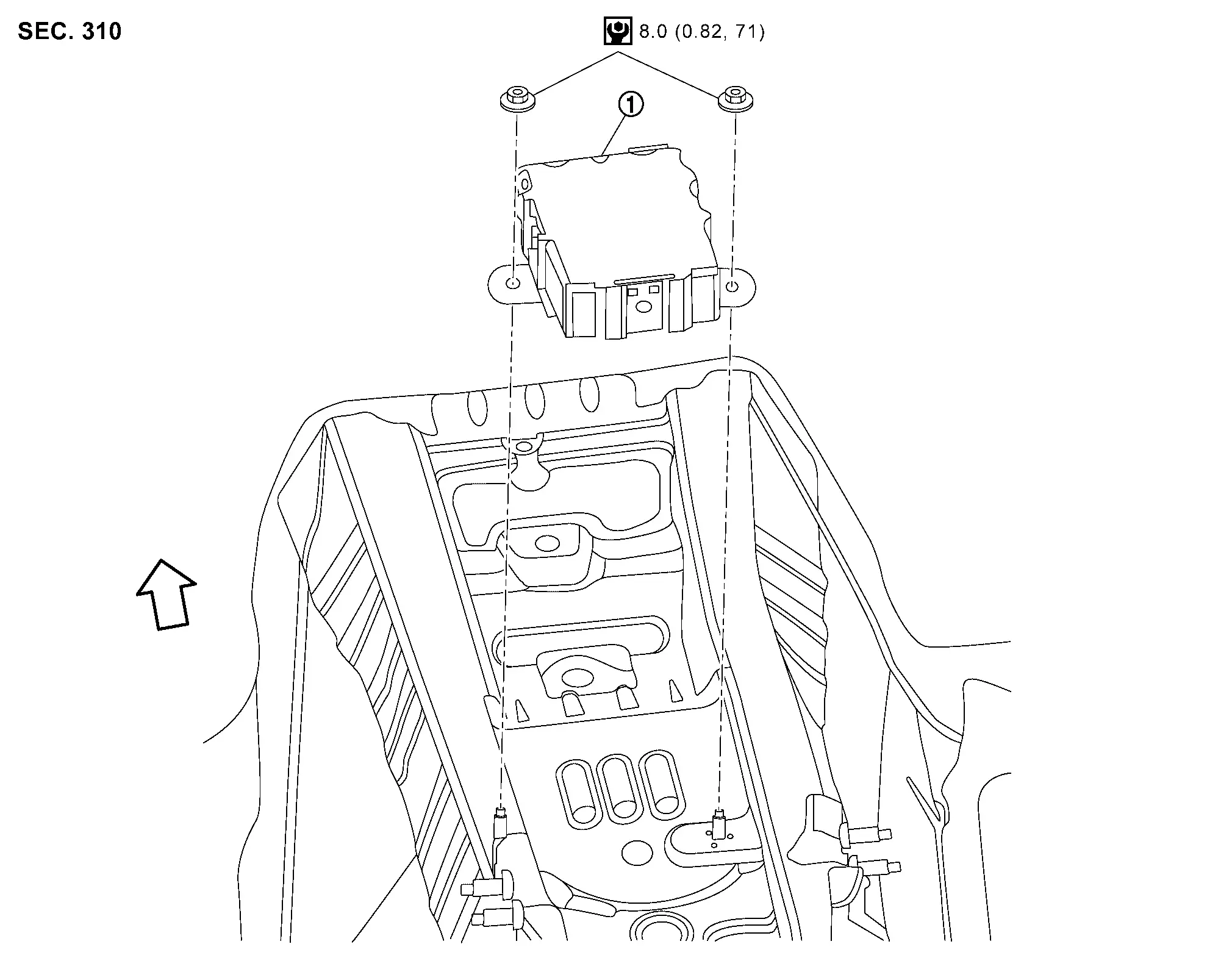

Exploded View

Electric shift control module

: N·m (kg-m, in-lb)

: Vehicle front

Removal and Installation

REMOVAL

Disconnect the negative battery terminal. Refer to Exploded View.

Remove instrument side panel LH. Refer to Exploded View.

Disconnect the harness connector from the electric shift control module.

Remove nuts from electric shift control module.

Remove electric shift control module.

INSTALLATION

Installation is in the reverse order of removal.

Inspection

INSPECTION AFTER INSTALLATION

Check the electric shift position. Refer to Inspection.

Adjustment

Perform "SHIFT ACTUATOR LEARNING". Refer to Description.

    Tcm
    Exploded View 1. Transaxle assembly 2. TCM 3. gasket : N·m (kg-m, in-lb) : Vehicle front Removal and Installation Never Reuse These Parts Part Code For additional information: ...
    Shift Actuator
    Exploded View 1. Shift actuator 2. Transaxle assembly     A Spline part         : N·m (kg-m, ft-lb) : Apply lithium-based grease including molybde...
