Nissan Rogue (T33) 2021-Present Service Manual: Camera Aiming Adjustment

Work Procedure

• Always adjust the camera aiming after removing and installing or replacing the front camera unit.

• Always adjust the camera aiming after removing and installing or replacing the windshield glass.

CAUTION:

• Place the vehicle on level ground when the camera aiming adjustment is operated.

• Be sure to place the target correctly according to work procedures because the system may not operate normally.

• Follow the CONSULT when performing the camera aiming. (Camera aiming adjustment cannot be operated without CONSULT.)

Preparation

PERFORM SELF-DIAGNOSIS

Perform self-diagnosis of front camera unit.

Is any DTC detected?

Perform diagnosis on the detected DTC and repair or replace the applicable item. Refer to DTC Index.

GO TO 2.

PREPARATION BEFORE CAMERA AIMING ADJUSTMENT

1. Perform pre-inspection for diagnosis.

2. Adjust the tire pressure to the specified pressure value.

3. Maintain no-load in Nissan Ariya vehicle.

4. Check if coolant and engine oil are filled up to correct level and fuel tank is full.

5. Shift the selector lever to “P” position and release the parking brake.

6. Clean the windshield.

7. Completely clear off the instrument panel.

   NOTE:

   If any fixed object is put on instrument panel, cover the upper of the instrument panel with black cloth to prevent an object from reflecting in the windshield.

GO TO 3.

PREPARATION OF NI-52266-2 ALIGNMENT TARGET

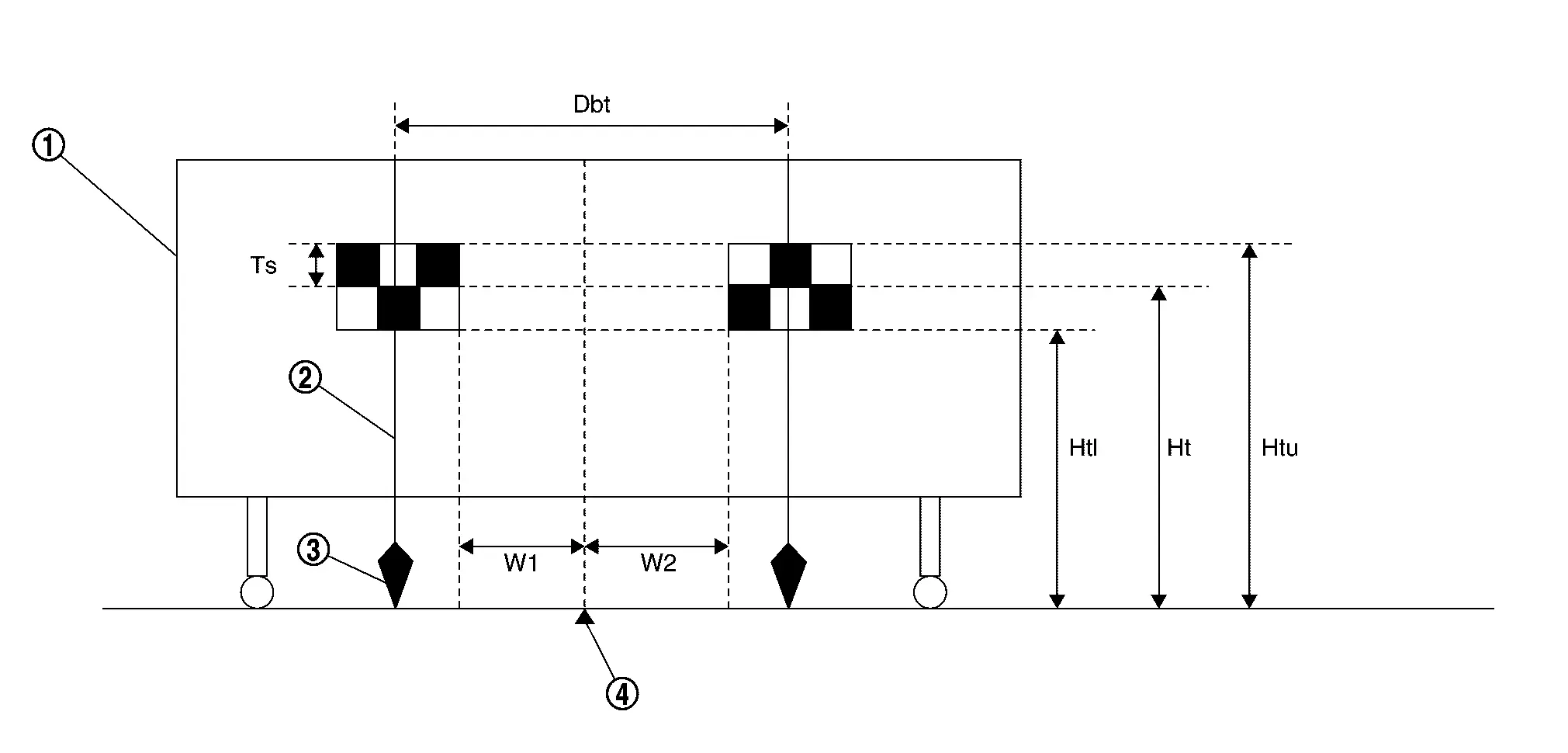

Prepare the alignment target according to the following procedure and the figure.

1. Attach the NI-52266-2 alignment target to a movable board.

   NOTE:

   • Use the board that peripheral area of the target is monochrome such as a whiteboard.

   • Notice that the cross of the target is horizontal and vertical.



   	White wall		String		Cone
   	Center between two targets

   Side of a target (Ts)	: 120 mm (4.72 in)
   Height of a target lower end (Htl)	: 1,180 mm (46.46 in)
   Height of a target center (Ht)	: 1,300 mm (51.18 in)
   Height of a target upper end (Htu)	: 1,420 mm (55.91 in)
   Width between a right target center from a left target center (Dbt)	: 720 mm (28.35 in)
   W1	: 180 mm (7.09 in)
   W2	: 180 mm (7.09 in)

Proceed to Target Setting.

Target Setting

CAUTION:

• Be sure to place the target correctly according to work procedures because the system may not operate normally.

• Perform this operation in a horizontal position where there is a clear view for 5 m (16.4 ft) forward and 3 m (9.84 ft) wide.

• Place the target in a well-lighted location. (Poor lighting may make it hard to adjust.)

• The target may not be detected when there is a light source within 1.5 m (4.92 ft) from either side and within 1 m (3.28 ft) upward/downward from the target.

• Check the location of the sun. (Sunlight should not shine directly on the front of the Nissan Ariya vehicle.)

• The target may not be detected when there is the same pattern of black and white as the target when the pattern is within 1 m (3.28 ft) from either side and upward/downward position from the target. (It is desirable that the Nissan Ariya vehicle is positioned on the opposite side of a single-color wall.)

TARGET SETTING

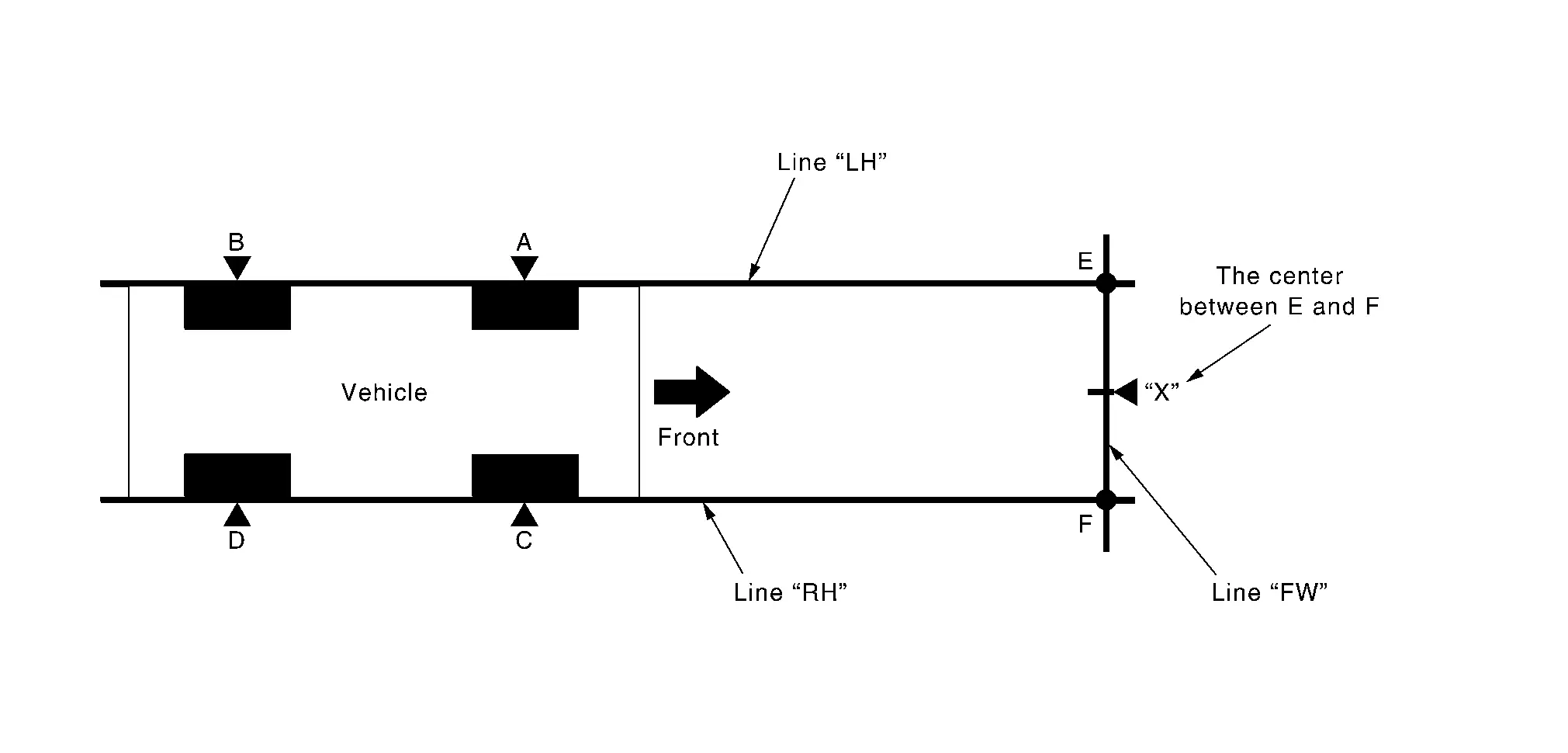

1. Mark points “A”, “B”, “C” and “D”at the center of the lateral surface of each wheels.



   NOTE:

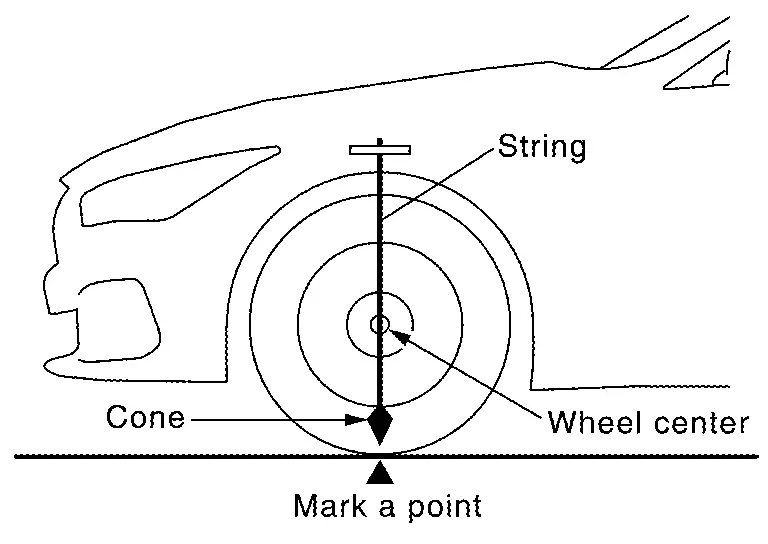

   Hang a string with a cone from the fender so as to pass through the center of wheel, and then mark a point at the center of the lateral surface of the wheel.

2. Draw line “LH” passing through points “A” and “B” on the left side of Nissan Ariya vehicle.

   NOTE:

   Approximately 4 m (13.12 ft) or more from the front end of Nissan Ariya vehicle.

3. Mark point “E” on the line “LH” at the positions 3,000 mm (118.11 in) from point “A”.

4. Draw line “RH” passing through points “C” and “D” on the right side of Nissan Ariya vehicle in the same way as step 2.

   NOTE:

   Approximately 4 m (13.12 ft) or more from the front end of Nissan Ariya vehicle.

5. Mark point “F” on the line “RH” at the positions 3,000 mm (118.11 in) from point “C”.

6. Draw line “FW” passing through the points “E” and “F” on the front side of Nissan Ariya vehicle.

7. Mark point “X” at the center of point “E” and “F” on the line “FW”.

   CAUTION:

   Make sure that “E” to “X” is equal to “F” to “X”.

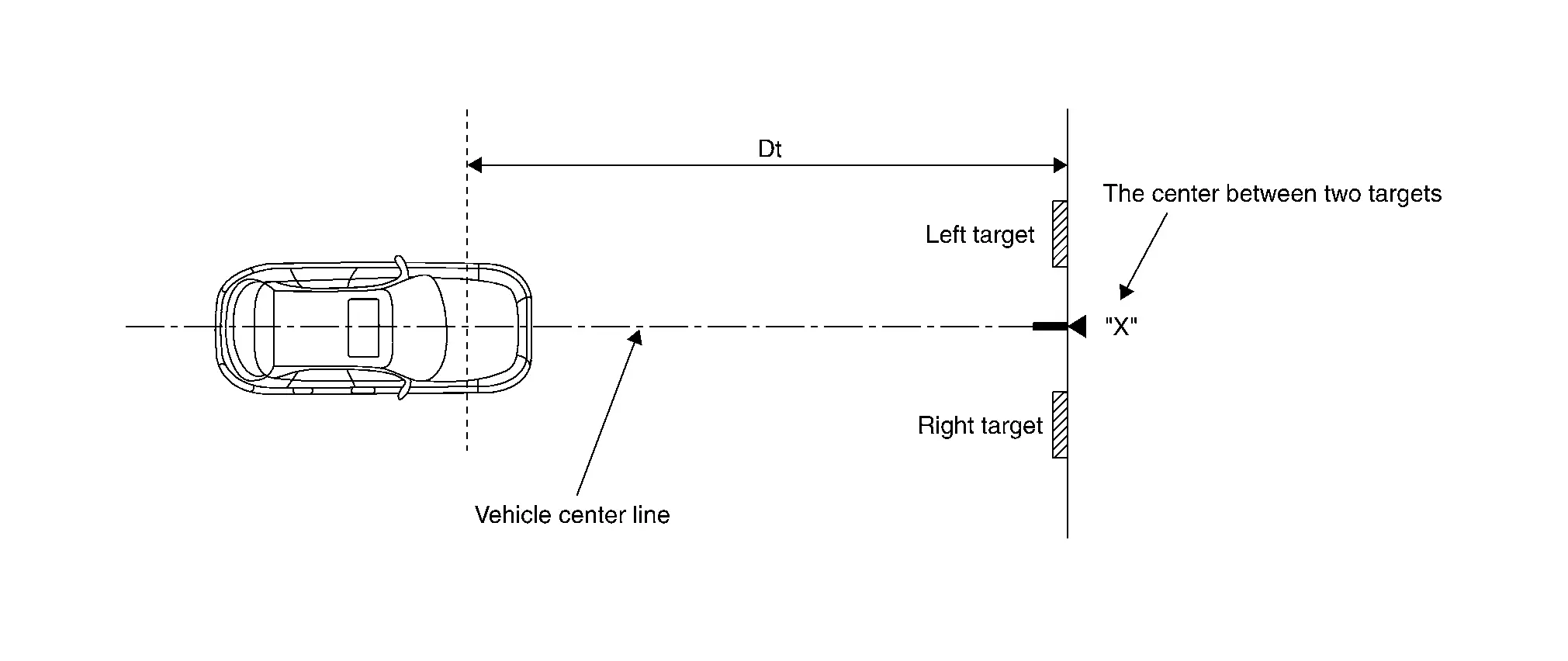

8. Center the NI-52266-2 alignment target at point "X" facing the Nissan Ariya vehicle.



   Dt	: 3,000 mm (118.11 in)

Proceed to Camera Aiming Adjustment.

Camera Aiming Adjustment

CAUTION:

Perform the adjustment under unloaded vehicle condition.

CHECK VEHICLE HEIGHT

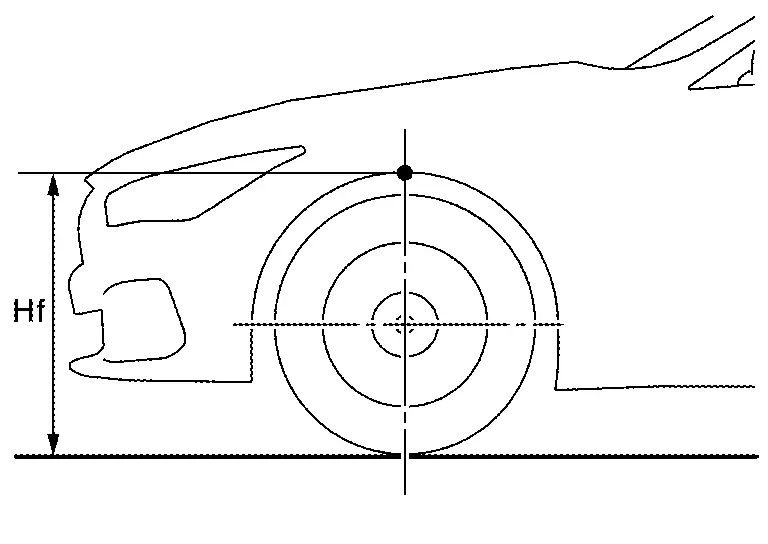

Measure the wheelarch height.

CAUTION:

Be sure to measure wheelarch height correctly.

GO TO 2.

CAMERA AIMING ADJUSTMENT

With CONSULT

CAUTION:

Operate CONSULT outside the Nissan Ariya vehicle, and close all the doors. (To retain vehicle attitude appropriately)

1. Select “Work Support” on “LANE CAMERA” with CONSULT.

2. Select “AUTO AIM”.

3. Confirm the following items;

   • The target should be accurately placed.

   • The Nissan Ariya vehicle should be stopped.

4. Select “Start” to perform camera aiming.

   CAUTION:

   • Never select “Start” when the NI-52266-2 alignment target is not accurately placed.

   • Wait 5 seconds or more after selecting “Start”.

5. Input the following parameters, and then select “Start”.

   Hfl	: Measured value
   Hfr	: Measured value
   Nissan Ariya Vehicle Reference Value	: 829
   VP	: 0
   Dt	: 3,000 mm
   Dbt	: 720 mm
   Htu	: 1,420 mm
   Htl	: 1,180 mm
   Ts	: 120 mm

6. Confirm the displayed item.

   • “Normally Completed”: Select “Completion”.

   • “SUSPENSION”, “Abnormally completed”: Perform the following services.

     Displayed item		Possible cause	Service procedure
     Abnormally completed	1	Internal processing error	Check self-diagnosis result. If DTC is detected, perform trouble diagnosis. Turn the ignition switch OFF→ON, then position the target appropriately again and perform camera aiming. If abnormally completed even after aiming again, replace front camera unit.
     	2
     	3
     	4	Front camera unit malfunction	If front camera unit is already replaced, perform C/U configuration again. Turn the ignition switch OFF→ON, then accurately position the target again and perform camera aiming. If abnormally completed even after aiming again, replace front camera unit.
     	5	Internal process time out	Turn the ignition switch OFF→ON, then accurately position the target and perform camera aiming again. If abnormally completed even after aiming again, replace front camera unit.
     	6	Ignition switch is not turned yet OFF→ON after replacing front camera unit.	Turn the ignition switch OFF→ON, then position the target appropriately again and perform camera aiming.
     	7	Writing value malfunction	If front camera unit is already replaced, perform configuration. Position the target appropriately again. Then perform the aiming again. If abnormally completed even after performing above procedure, replace front camera unit.
     	8	Position of front camera unit is not correct.	Accurately position front camera unit. Accurately position the target again, and perform camera aiming.
     	9	Camera aiming input value is invalid. Input value is not correct during camera aiming.	Correct the camera aiming input value and perform camera aiming again.
     	16	Other error	Check self-diagnosis result. If DTC is detected, perform trouble diagnosis. Turn the ignition switch OFF→ON, then position the target appropriately again and perform camera aiming. If abnormally completed even after aiming again, replace front camera unit.
     	18	Front camera unit cannot detect target Target is not positioned Position of front camera unit is not correct. Inappropriate work environment. Inappropriate Nissan Ariya vehicle condition Input value is not correct during camera aiming.	Appropriately position the front camera unit. Appropriately position the target again and perform camera aiming.
     	19	Roll angle is outside the threshold. Position of front camera unit is not correct. Inappropriate work environment. Inappropriate Nissan Ariya vehicle condition. Input value is not correct during camera aiming.
     	20	Front camera unit cannot detect the target.	Perform front camera unit C/U configuration. Check target setting information. Position the target appropriately again. Then perform the aiming again.
     	21	Parameter read error	Perform front camera unit C/U configuration. Check target setting information and perform camera aiming.
     	22	"Dt" input value error	Check target setting information and perform camera aiming.
     	23	"Ts" input value error
     	24	Yow angle is outside the threshold. Position of target is not correct. Position of front camera unit is not correct. Inappropriate work environment. Inappropriate Nissan Ariya vehicle condition. Input value is not correct during camera aiming.	Appropriately position the front camera unit. Appropriately position the target again and perform camera aiming.
     	25	Pitch angle is outside the threshold. Position of target is not correct. Position of front camera unit is not correct. Inappropriate work environment. Inappropriate Nissan Ariya vehicle condition. Input value is not correct during camera aiming.
     	26	Detect several targets. Position of target is not correct. Position of front camera unit is not correct. Inappropriate work environment. Inappropriate Nissan Ariya vehicle condition. Input value is not correct during camera aiming.
     	27	Aiming error	Perform camera aiming again
     	28	Front camera unit cannot detect the left target	Appropriately position the target again and perform camera aiming.
     	30	Front camera unit cannot detect the right target
     	31	Aiming error	Perform camera aiming again
     	255	No aiming done	Turn the ignition switch OFF→ON, then position the target appropriately again and perform camera aiming.

     NOTE:

     Replace front camera unit if “00H Routine not activated” or “10H Writing error” are repeatedly indicated during the above two services are performed.

7. Confirm that “Normally completed” is displayed and then select “End” to close the adjustment procedure.

GO TO 3.

PERFORM SELF-DIAGNOSIS

With CONSULT

Perform self-diagnosis of “LANE CAMERA” with CONSULT.

Is any DTC detected?

Perform diagnosis on the detected DTC and repair or replace the applicable item. Refer to DTC Index.

GO TO 4.

ACTION TEST

Perform the following system operation by action test.

• LDW: Refer to Work Procedure.

• I-LI: Refer to Work Procedure.

• I-BSI: Refer to Work Procedure.

• TSR: Refer to Work Procedure.

WORK END
