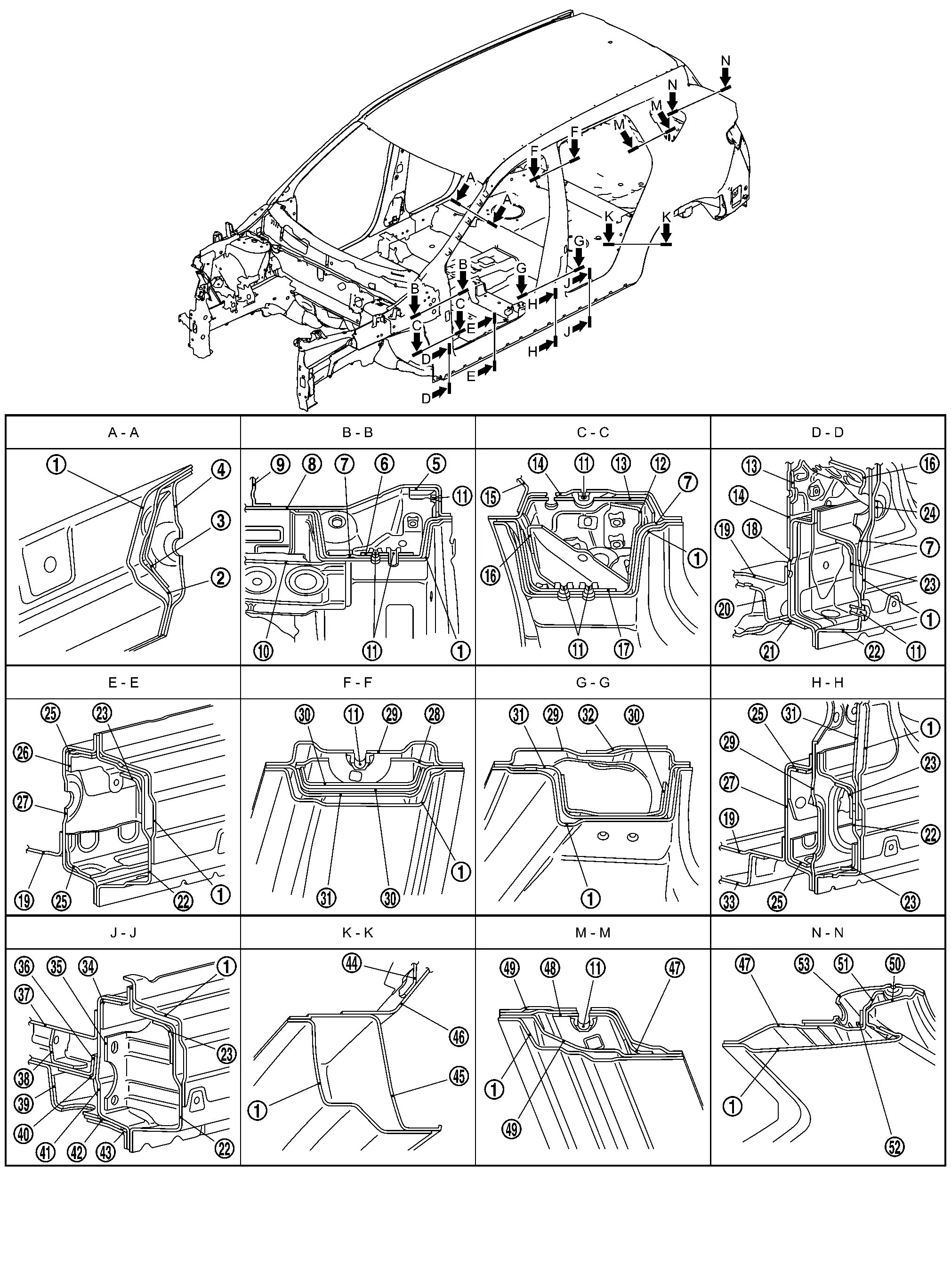

Body Construction

Outer side body Outer front pillar reinforcement Outer side roof stiffener
Upper inner front pillar Side dash reinforcement Upper front pillar bulkhead
Lower front pillar hinge brace Side cowl top Upper dash
Hoodledge reinforcement Weld nut Lower front pillar bulkhead
Inner front pillar reinforcement Side dash Lower dash
Outer front sill reinforcement Outer front pillar Inner sill brace
Front floor Front outrigger reinforcement Front side member outrigger
Outer sill reinforcement Center sill reinforcement Front fender bracket
Inner sill reinforcement Inner front sill reinforcement Inner sill
Upper center pillar brace Inner center pillar Center pillar reinforcement
Center pillar hinge brace Lower inner center pillar reinforcement Center side member
Inner rear sill reinforcement Outer sill brace Rear floor front extension
Rear seat crossmember Rear side floor reinforcement Lower rear side member reinforcement
Rear side front member Inner sill extension Lower rear side member
Rear jack up point bracket Rear seat back hinge bracket Outer rear wheelhouse
Inner rear wheelhouse Inner rear pillar Rear pillar seat belt anchor
Inner rear pillar reinforcement Center back pillar main Upper back pillar reinforcement
Back pillar plate Rear roof rail brace

Fusible Insulator Applying Part

Apply the fusible insulator to prevent road noise, vibration and exhaust system heat inside the vehicle.

The service replacement material is cut-to-fit and not supplied in the same shape as original factory installed fusible insulator.

Place the fusible insulators in the positions shown in the figure and properly affix them to the vehicle surface.

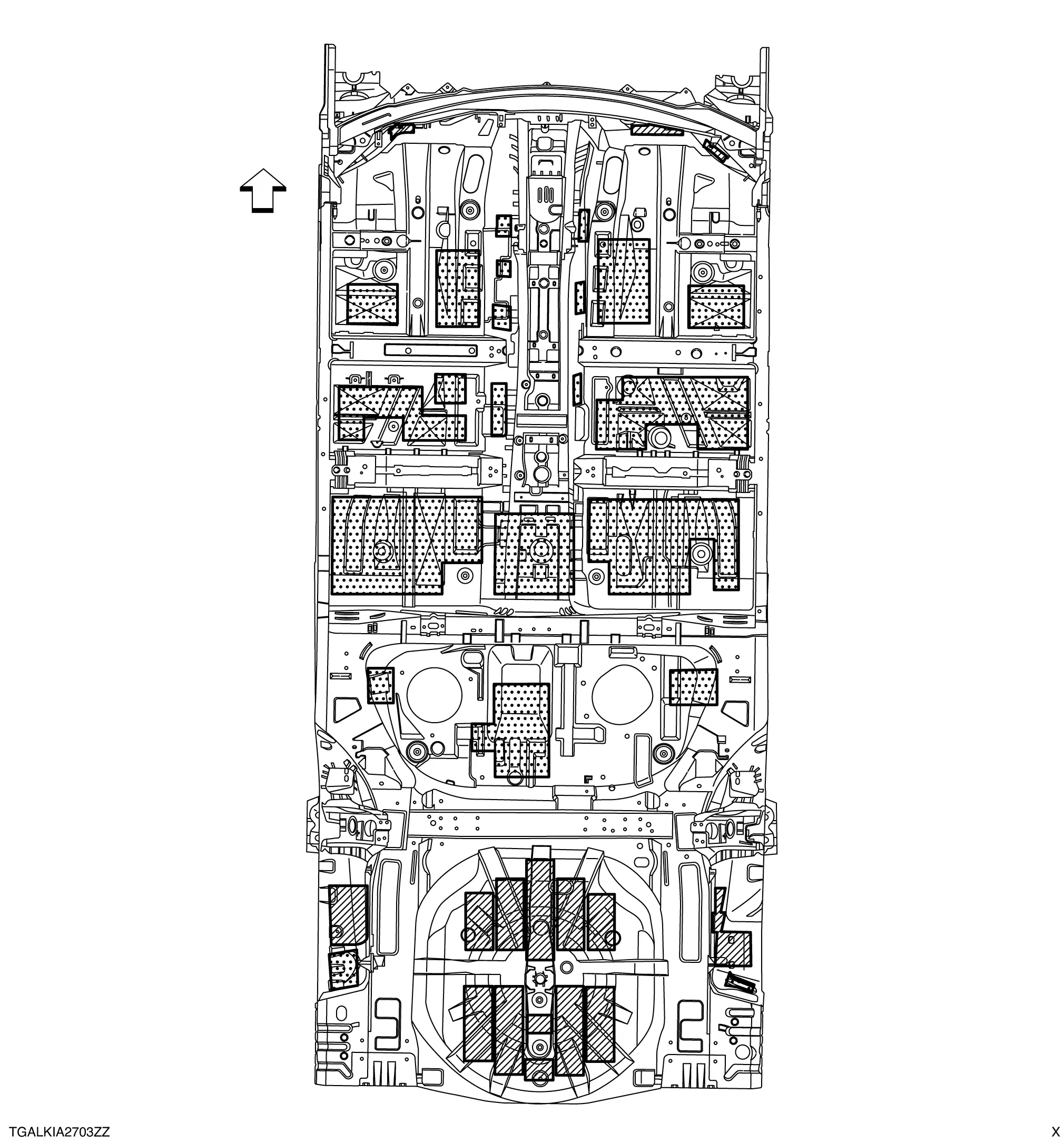

USA PRODUCTION MODELS

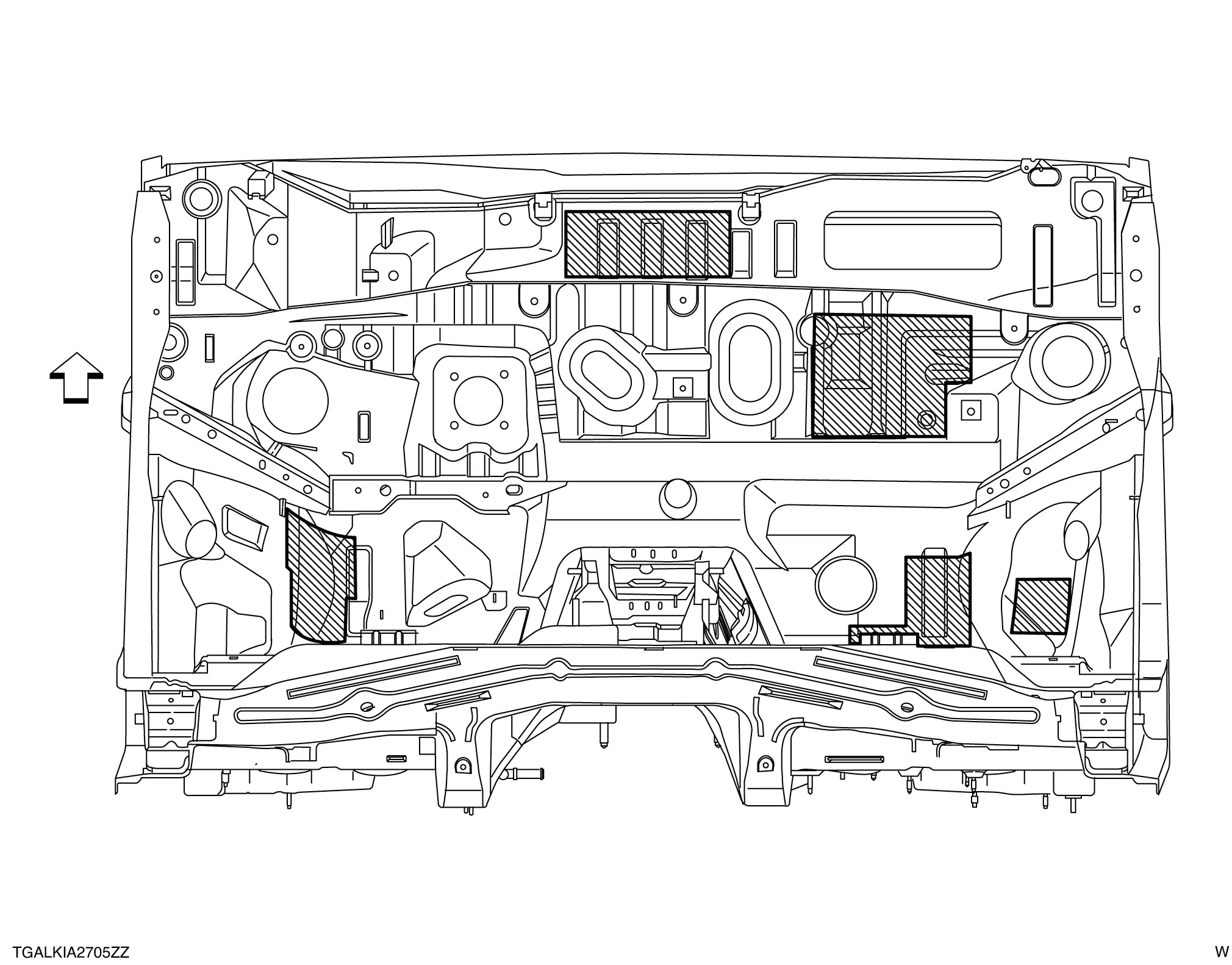

Unit: mm (in)

: Nissan Ariya Vehicle front
: Fusible insulator thickness 4.7 (0.19)
: Fusible insulator thickness 3.8 (0.15)

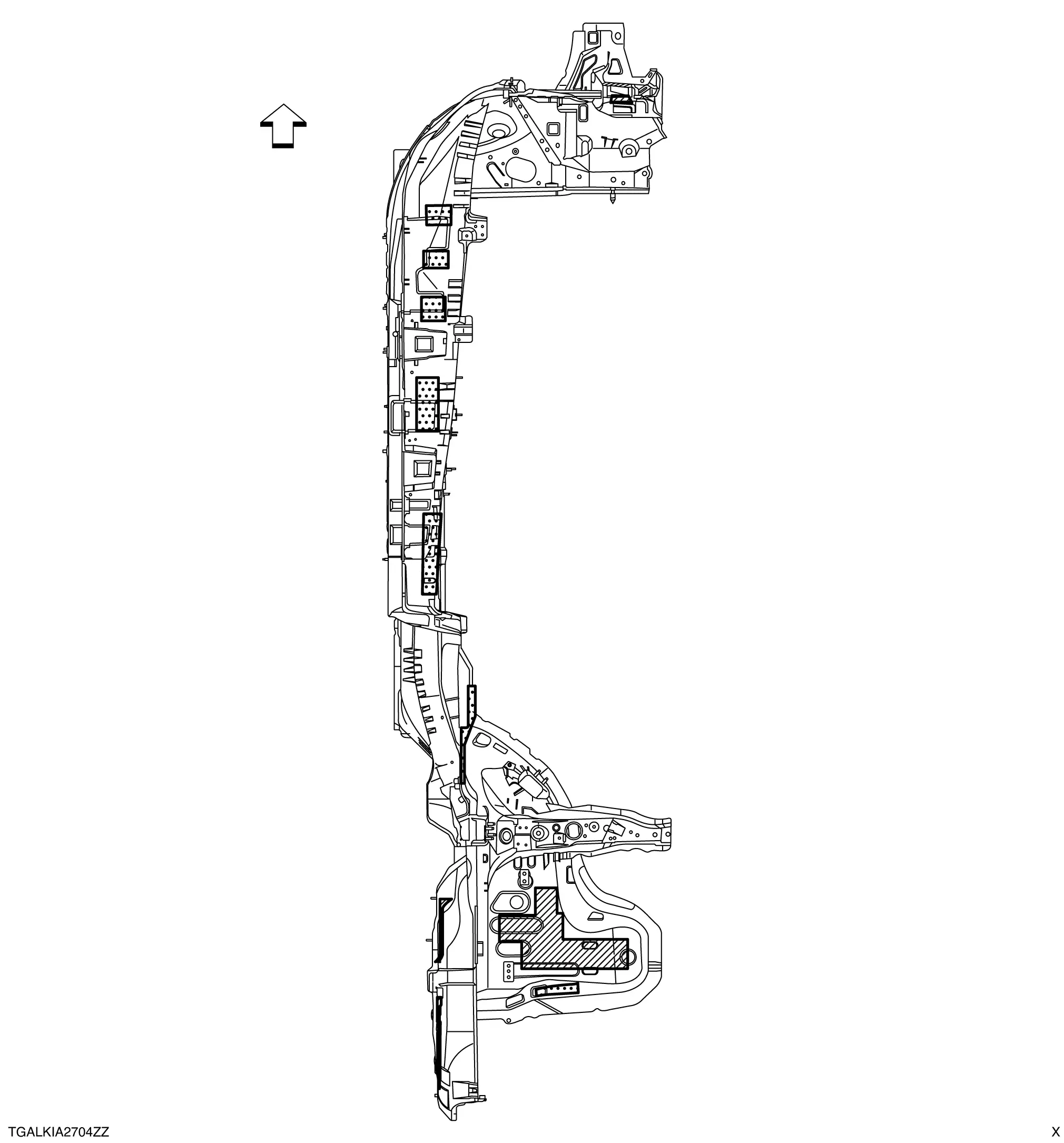

Unit: mm (in)

: Nissan Ariya Vehicle front
: Fusible insulator thickness 4.7 (0.19)
: Fusible insulator thickness 3.8 (0.15)

Unit: mm (in)

: Nissan Ariya Vehicle front

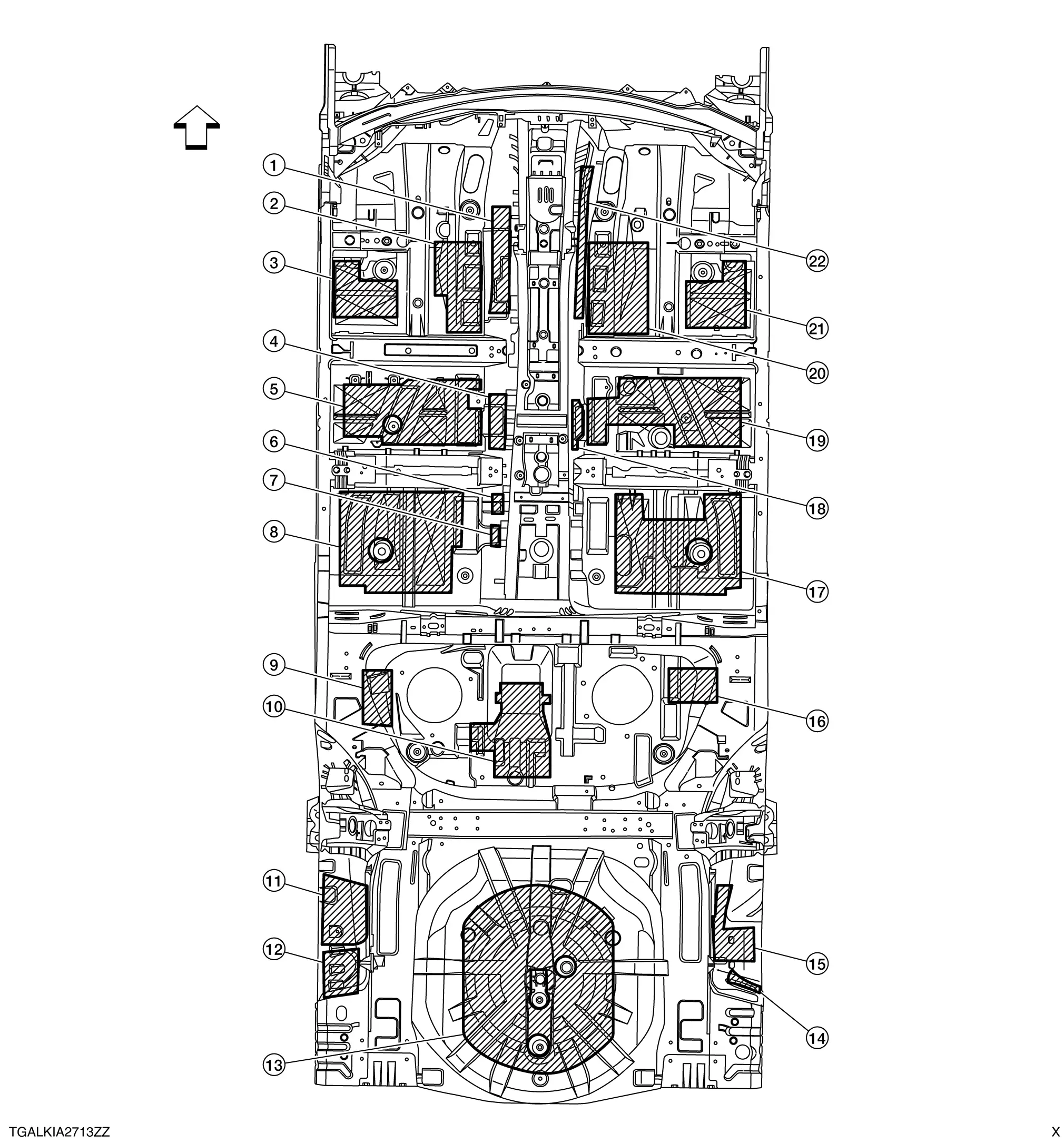

JAPAN PRODUCTION MODELS

Unit: mm (in)

1. 3 (0.12) 2. 2 (0.08) 3. 2 (0.08)
4. 3 (0.12) 5. 4 (0.16) 6. 3 (0.12)
7. 3 (0.12) 8. 8 (0.31) 9. 2.5 (0.1)
10. 3 (0.12) 11. 2.5 (0.1) 12. 2.5 (0.1)
13. 4 (0.16) 14. 3.5 (0.14) 15. 3 (0.12)
16. 2.5 (0.1) 17. 8 (0.31) 18. 3 (0.12)
19. 4 (0.16) 20. 2 (0.08) 21. 2 (0.08)
22. 3 (0.12) : Nissan Ariya Vehicle front : Fusible insulator

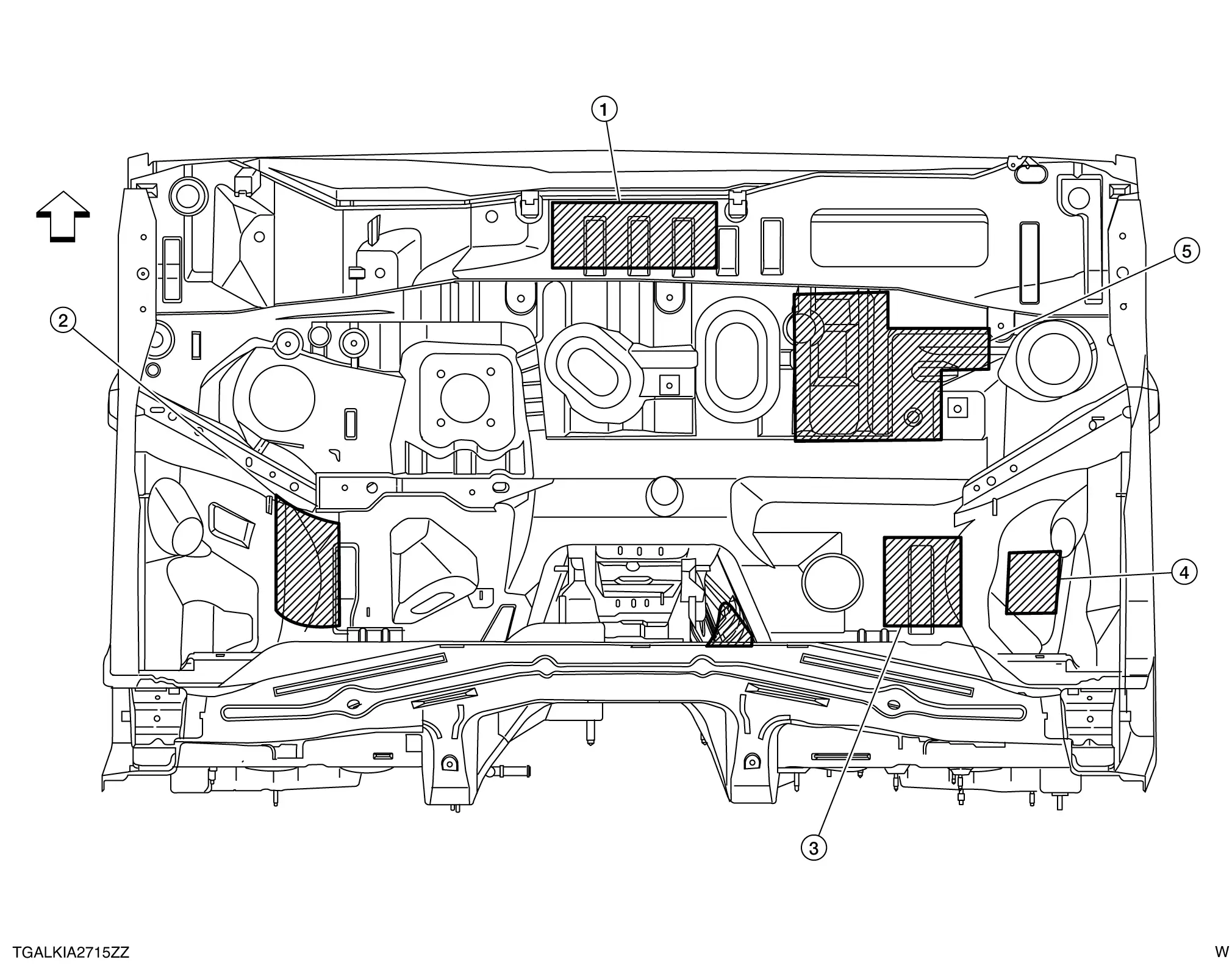

Unit: mm (in)

1. 3.5 (0.14) 2. 3.5 (0.14) 3. 3.5 (0.14)
4. 3.5 (0.14) 5. 2.5 (0.1) 6. 3.5 (0.14)
: Nissan Ariya Vehicle front : Fusible insulator
