Nissan Rogue (T33) 2021-Present Service Manual: Basic Inspection :: Front Disc Brake. Disc Rotor

Nissan Rogue (T33) 2021-Present Service Manual / Brakes :: Brake System / Basic Inspection :: Front Disc Brake. Disc Rotor

Disc Rotor

Inspection

INSPECTION

Uneven wear

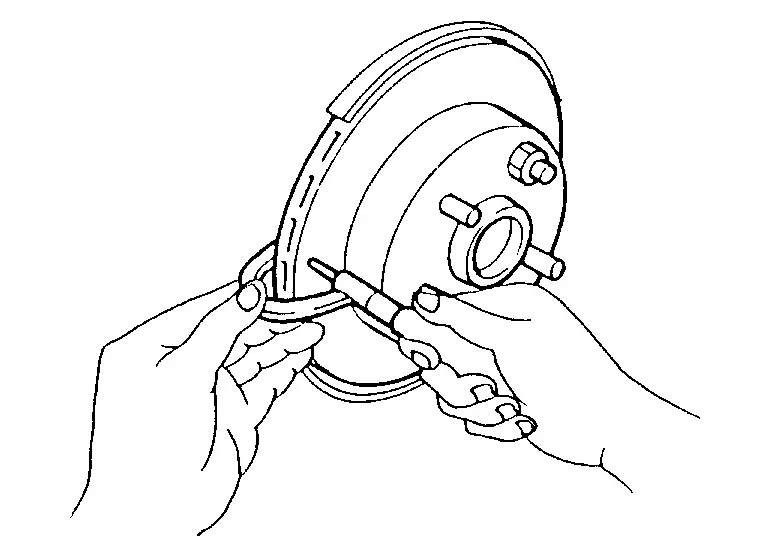

Check the uneven wear of the disc rotor using a micrometer. Replace the disc rotor if the thickness is below the wear limit.

  • For 2WD: Refer to Removal and Installation.

  • For AWD: Refer to Removal and Installation.

Thickness variation (measured at 8 positions) : Refer to Front Disc Brake.
