Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Basic information
WARNING
Head restraints/headrests work together with other vehicle safety systems to help reduce the risk of injury.
They may provide additional protection in certain rear-end collisions. For maximum effectiveness, adjustable head restraints/headrests must be positioned correctly as described in this section. Always check the adjustment after someone else has used the seat.
Do not attach objects to the head restraint/headrest stalks, and do not remove the head restraint/headrest. Do not use the seat without its head restraint/headrest installed. If it has been removed, reinstall and properly adjust it before allowing an occupant to ride in that seating position.
Failure to follow these guidelines reduces the effectiveness of the head restraint/headrest.
This could increase the risk of serious injury or death in a collision.

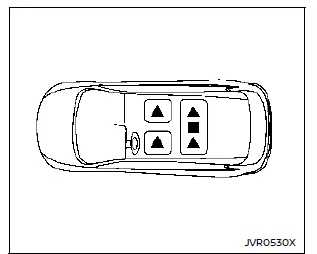

The illustration shows the seating positions equipped with head restraints/headrests.
Indicates the seating position is equipped with a head restraint.
Indicates the seating position is equipped with a headrest.
+ Indicates the seating position is not equipped with a head restraint or headrest.
- Your Nissan Rogue includes head restraints/headrests that may be integrated, adjustable, or non-adjustable.
- Adjustable head restraints/headrests feature multiple notches along the stalk, allowing them to lock into several height positions.
- Non-adjustable versions have a single locking notch that keeps them secured to the seat frame.
- Proper Adjustment:
- For adjustable types, position the head restraint/headrest so that the center of your ear aligns closely with the center of the restraint.
- If your ear is still above the recommended height, raise the head restraint/headrest to its highest position.
- If the head restraint/headrest has been removed, make sure it is reinstalled and fully locked into place before using that seating position.
Adjustable head restraint/headrest components
Removable head restraint/headrest — the upper cushion that provides head support.
Multiple notches — height adjustment points that lock into place.
Lock knob — used to release the lockin ...
