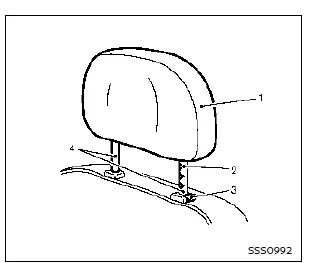

Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Adjustable head restraint/headrest components
- Removable head restraint/headrest — the upper cushion that provides head support.
- Multiple notches — height adjustment points that lock into place.
- Lock knob — used to release the locking mechanism for removal or lowering.
- Stalks — support rods that fit into the seat frame.

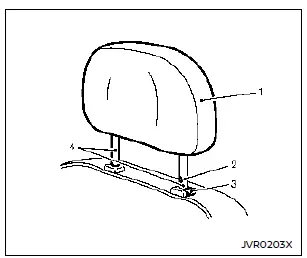

Non-adjustable head restraint/headrest components
- Removable head restraint/headrest — fixed-height support cushion.
- Single notch — one locking point keeping the head restraint/headrest secured.
- Lock knob — releases the head restraint/headrest for removal.
- Stalks — support rods attaching it to the seat frame.

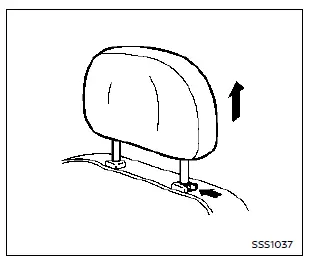

Remove
Use the following steps to remove the head restraint/headrest:
1. Pull the head restraint/headrest up to its highest position.
2. Press and hold the lock knob.
3. Lift and remove the head restraint/headrest from the seat.
4. Store it securely so it does not move freely inside the Nissan Rogue.
5. Reinstall and adjust the head restraint/headrest properly before someone uses that seating position.

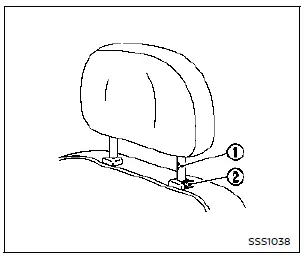

Install
1. Align the head restraint/headrest stalks with the seat openings. Ensure correct orientation—the stalk with the adjustment notch 1 must go into the hole with the lock knob 2.
2. Press and hold the lock knob, then push the head restraint/headrest downward.
3. Adjust the head restraint/headrest to the proper height before using the seat.
Adjust
Basic information
For adjustable head restraint/headrest

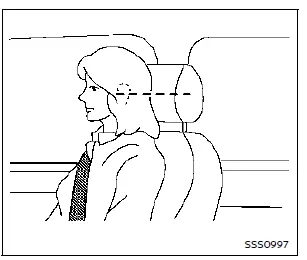

Adjust the head restraint/headrest so its center aligns approximately with the center of your ears.
If your ear position is still above this level, raise the head restraint/headrest to the highest available notch.

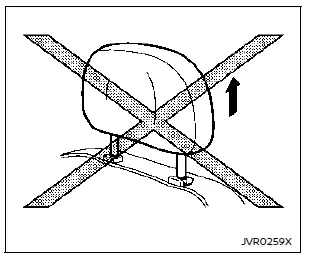

For non-adjustable head restraint/headrest
Ensure the head restraint/headrest is correctly positioned with the lock knob fully engaged in the notch before using the seat.

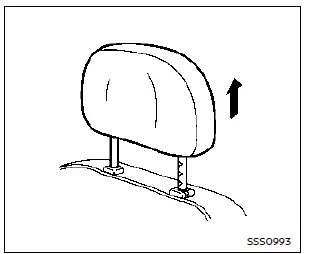

Raise
To raise the head restraint/headrest, pull it upward.
Confirm the lock knob engages properly in the notch before riding in that seat.

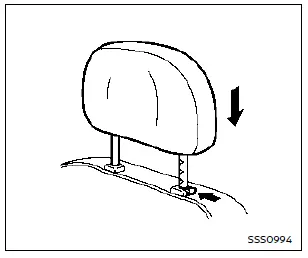

Lower
To lower the head restraint/headrest, press and hold the lock knob while pushing it downward.
Ensure the lock knob is engaged in the notch before using the seating position.
Basic information
WARNING
Head restraints/headrests work together with other vehicle safety systems to help reduce the risk of injury.
They may provide additional protection in certain rear-end collisions. For maximu ...
